Msi B450 Gaming Pro Carbon AC WiFi

Msi B450 Gaming Pro Carbon Max Wi-Fi Motherboard

₹13,999 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

Specifications

PROCESSORSupports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSETAMD® B450 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • For AMD Ryzen Gen3 (R5/R7/R9)
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
  • For AMD Other CPU
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
SLOTS
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
    • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2
  • 3 x PCIe 2.0 x1 slots2
  1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  2. PCI_E4 will run x1 speed when installing devices in any PCIe 2.0×1 slot.
MULTI-GPURyzen™ Desktop Processors

  • Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® B450 Chipset
  • 4 x SATA 6Gb/s ports1
  • 1 x M.2 slot (M2_2, Key M)1
    • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
  • 1 x M.2 slot (M2_1, Key M)1
    • Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
  • 2 x SATA 6Gb/s ports1
  1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  2. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe RAID
ONBOARD GRAPHICS
  • 1 x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz*1
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz2
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2. Maximum shared memory of 2048 MB
USB
AMD® B450 Chipset
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
WIFI & BLUETOOTH
Intel® Dual Band Wireless-AC 92601
  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.
  • Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2, 5.0
  • 1 x M2_3 slot with E key (Wi-Fi mode)
  1. Only support windows 10 64-bit
LAN
  • 1 x Intel® I211AT Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Serial Port connector
  • 1 x Clear CMOS jumper
  • 1 x 2pin LED Power connector
  • 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
  • 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1 x CORSAIR connector (JCORSAIR1)

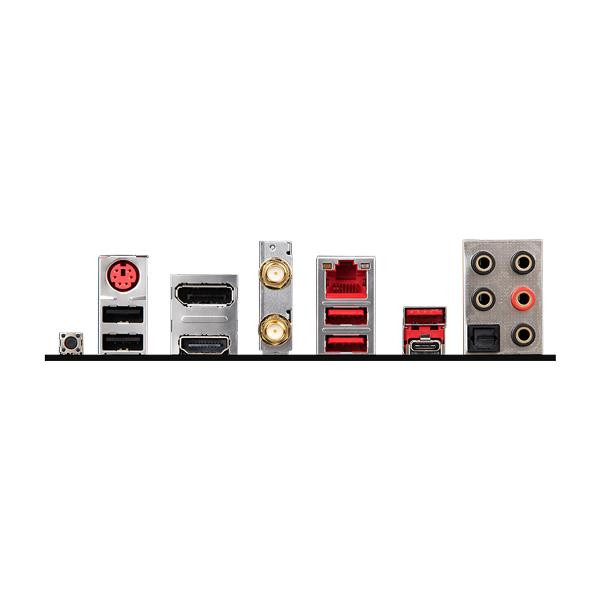

BACK PANEL PORTS
  1. PS/2 Combo Port
  2. DisplayPort
  3. Wi-Fi / Bluetooth
  4. LAN
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen1
  10. USB 3.2 Gen2 (Type A+C)
  11. Optical S/PDIF OUT
DIMENSIONS
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
MOUNTING9 mounting holes
OPERATING SYSTEM
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
  • * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty3 Years

Additional information

Weight5 kg
Dimensions25.4 × 0.1 × 35.5 mm
Brand

MSI

Socket

AM4

Chipset

B450

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

AMD

EAN/UPC

4719072716158

Memory Slot Type

DDR4
