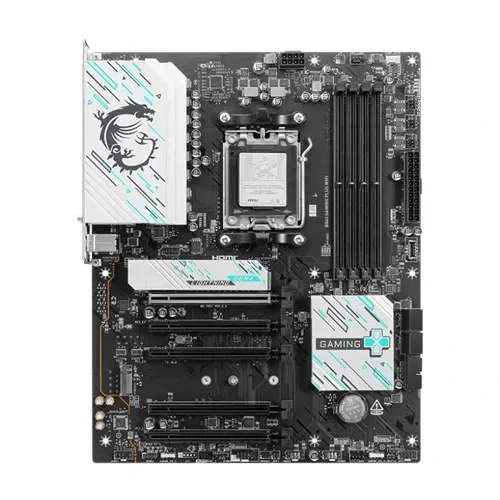

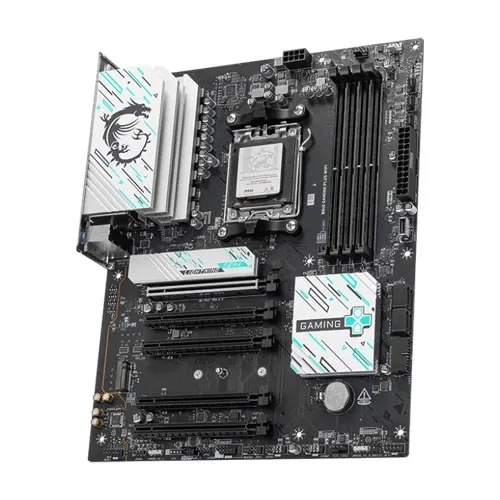

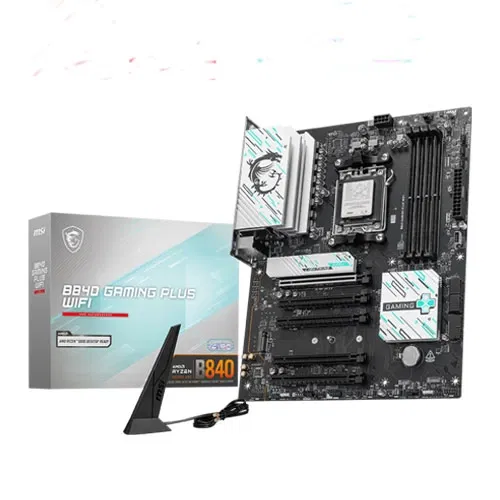

MSI B840 Gaming Plus WiFi ATX Motherboard :
Overview :
The MSI B840 Gaming Plus WiFi ATX Motherboard is designed for gamers and PC enthusiasts seeking performance, stability, and connectivity. MSI B840 Gaming Plus WiFi ATX Motherboard supports the latest processors, high-speed memory, and advanced cooling solutions, making MSI B840 Gaming Plus WiFi ATX Motherboard an ideal choice for high-performance gaming rigs. With built-in WiFi, multiple expansion slots, and MSI’s signature durability, MSI B840 Gaming Plus WiFi ATX Motherboard delivers a powerful and reliable gaming experience.
Features :
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Specification Table :
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Overclocking Support | Ryzen™ 9000 Series max OC speeds: – 1DPC 1R: Up to 8000+ MT/s – 1DPC 2R: Up to 6400+ MT/s – 2DPC 1R: Up to 6400+ MT/s – 2DPC 2R: Up to 4800+ MT/s |
| Memory Features | Supports AMD POR Speed and JEDEC Speed, AMD EXPO™, Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM (Clock Driver bypass mode only) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz) – Available only on processors with integrated graphics |
| PCIe Slots | 5x PCI-E x16 Slots: – PCI_E1 (PCIe 4.0 x16 from CPU) – PCI_E2 (PCIe 3.0 x1 from Chipset) – PCI_E3 (PCIe 3.0 x1 from Chipset) – PCI_E4 (PCIe 3.0 x4 from Chipset) – PCI_E5 (PCIe 3.0 x1 from Chipset) |
| PCI_E1 Slot Support | – PCIe 4.0 x16 (Ryzen™ 9000/7000 Series) – PCIe 4.0 x8 (Ryzen™ 8700/8600/8400 Series) – PCIe 4.0 x4 (Ryzen™ 8500/8300 Series) |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | – 2x M.2 (PCIe 4.0 x4) – 4x SATA 6Gb/s |
| M.2 Slot Support | M.2_1 (From CPU) – PCIe 4.0 x4 (2280/2260) M.2_2 (From CPU) – PCIe 4.0 x4 (22110/2280/2260) |
| M.2_2 Slot Support | – PCIe 4.0 x4 (Ryzen™ 9000/7000 Series) – PCIe 3.0 x4 (Ryzen™ 8700/8600/8400 Series) – PCIe 3.0 x2 (Ryzen™ 8500/8300 Series) |
| RAID Support | RAID 0, RAID 1 for M.2 NVMe storage devices |
| USB Ports | – Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C – Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal I/O | – 1x ATX Power Connector – 1x CPU Power Connector – 1x CPU Fan Header – 1x Combo Fan (Pump_Sys Fan) – 4x System Fan Headers – 1x EZ Conn-header – 2x Front Panel Headers – 1x Chassis Intrusion Header – 1x Front Audio Header – 1x COM Port Header – 1x Tuning Controller Connector – 2x Addressable RGB (JARGB_V2) – 1x RGB Header (JRGB) – 1x TPM 2.0 Header – 4x USB 2.0 Ports – 2x USB 5Gbps Type-A Ports – 1x USB 5Gbps Type-C Port |
| Wireless LAN & Bluetooth | – Wi-Fi 7 Solution – MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps – 802.11 a/b/g/n/ac/ax/be – Bluetooth® 5.4, MLO, 4KQAM |
| LED Features | 4x EZ Debug LED |

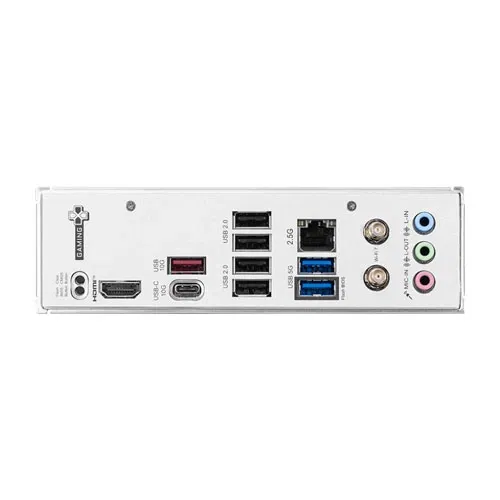

| Back Panel Ports | – Clear CMOS Button – USB 10Gbps (Type-A) – USB 2.0 – 2.5G LAN – Wi-Fi/Bluetooth Antenna Ports – Audio Connectors – Flash BIOS Button – HDMI™ 2.1 Port – USB 10Gbps (Type-C) – USB 5Gbps (Type-A) |
| Operating System | Windows® 11 64-bit |
| PCB Info | ATX (243.84mm x 304.8mm) |
| Warranty | 3 Years |
