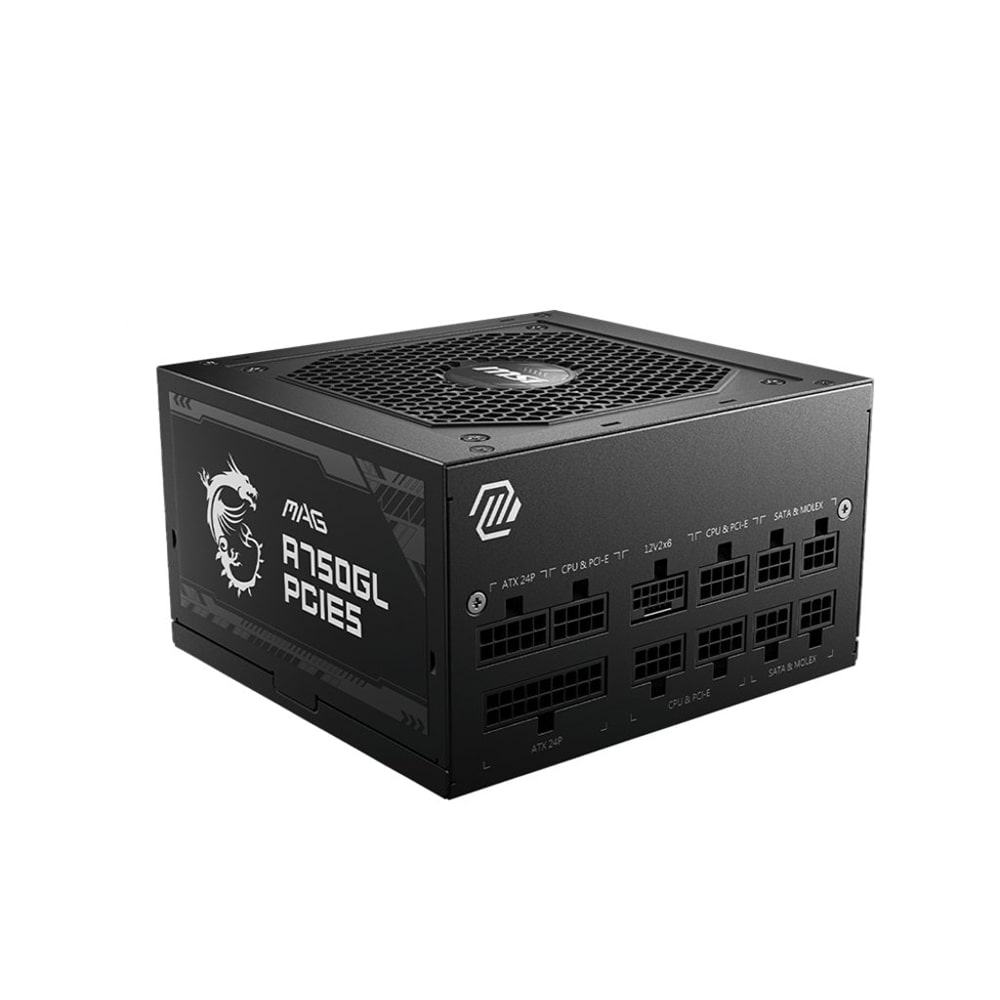

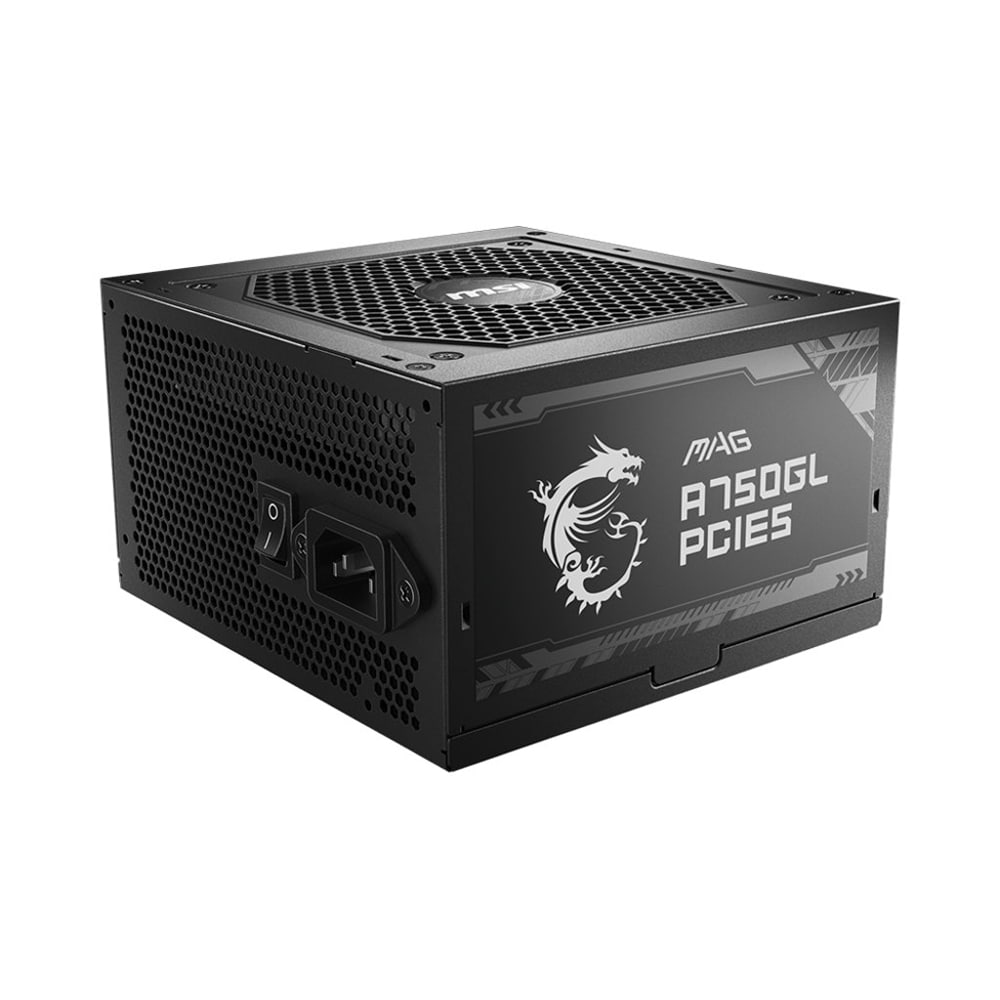

MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold 750 Watts Power Supply :
Features :
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTX 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Overview :
ATX 3.0 COMPATIBLE
MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold Power Supply has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold Power Supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The MSI MAG ATX 3.0 80 Plus Gold Power Supply 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold Power Supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

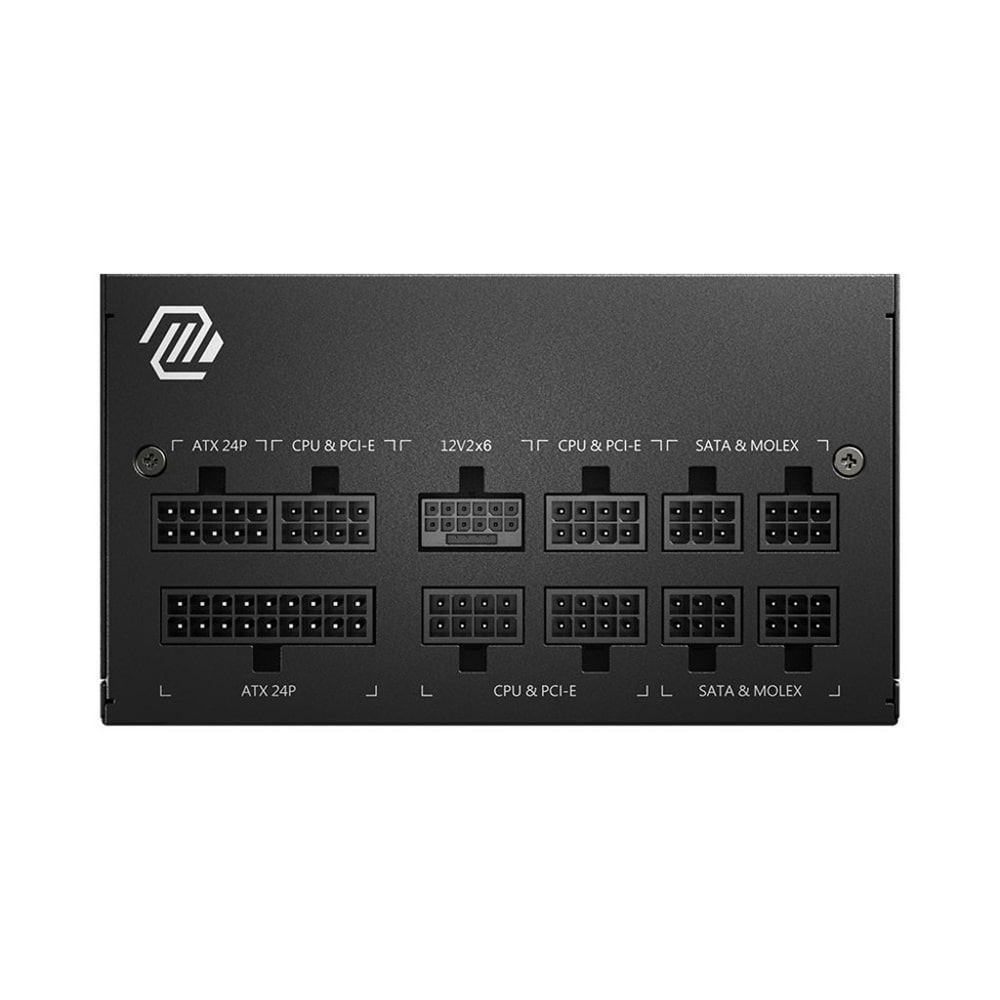

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

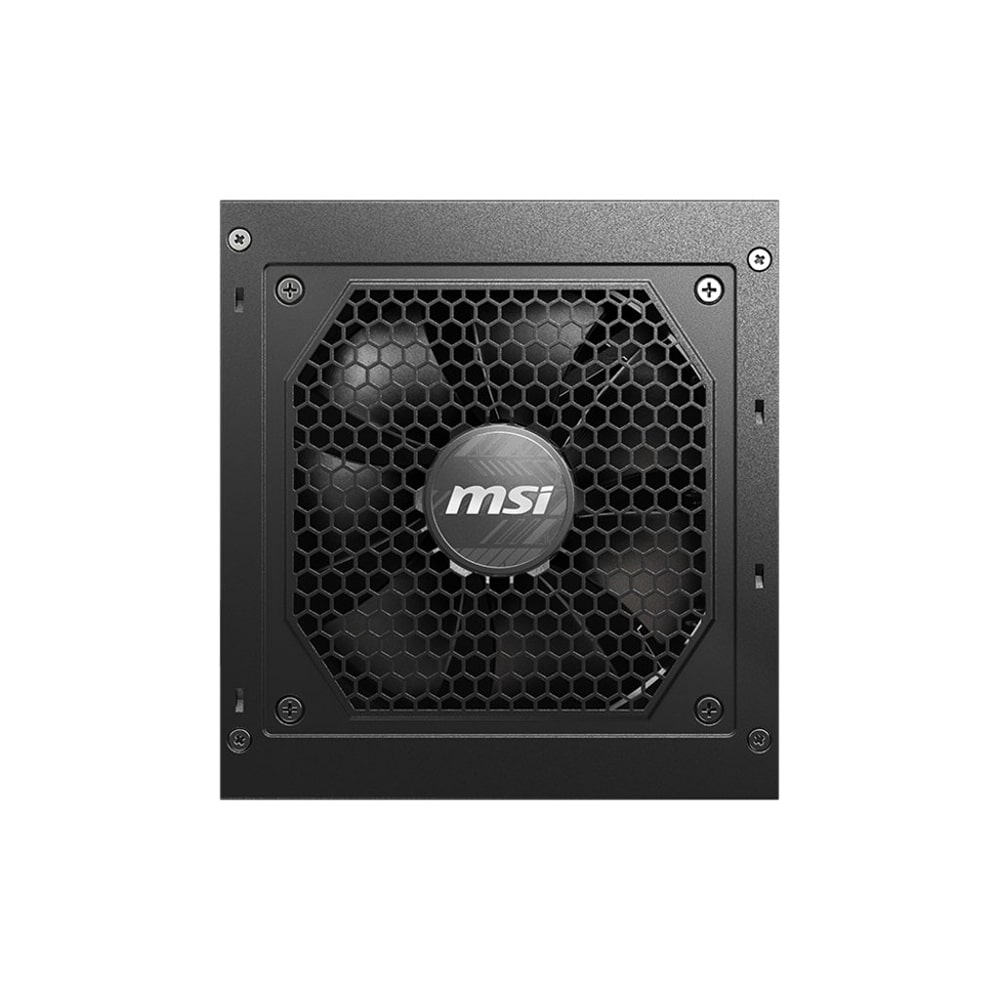

FLUID DYNAMIC BEARING
The MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold Power Supply fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the MSI MAG A750GL PCIE5 ATX 3.0 80 Plus Gold Power Supply comes with a number of protection mechanisms to give you the best peace of mind.
Specification :
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (full modular) |
| FAN SIZE | 120 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 140 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| POWER WATT | 750W |
| POWER EXCURSION | 1500W (*up to 200% of the PSU’s rated power for 100μs) |
| INPUT FREQUENCY RANGE | 47-63Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 (450W) |
| PCI-E (6+2 PIN) | 3 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
| WARRANTY | 5 Years |
