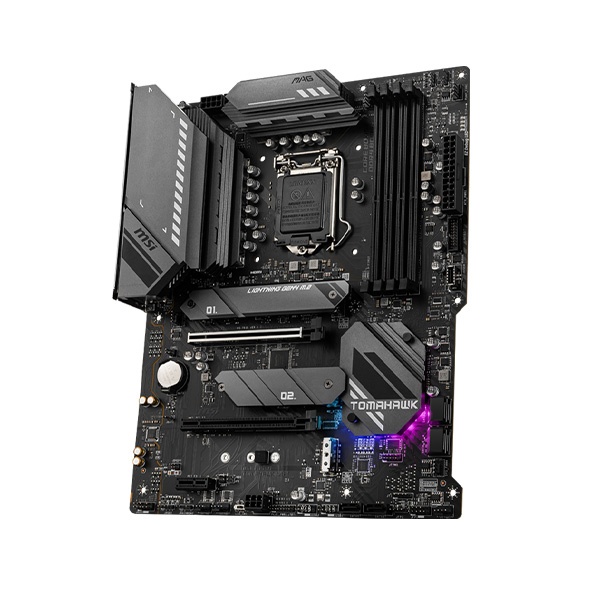

MSI MAG B560 Tomahawk WiFi INTEL 11TH GENERATION B560 ATX LGA 1200 Socket Gen4 Support Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Lightning Gen4 Solution
The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing
throttling, making them run faster.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value for MSI MAG B560 Tomahawk WiFi
Mystic Light
Mystic Light gives you complete control of the RGB lighting for
MSI devices and compatible RGB products.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® B560 Chipset |
| DDR4 MEMORY | 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 3 |
| LAN | 1x Realtek® 8125B 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |

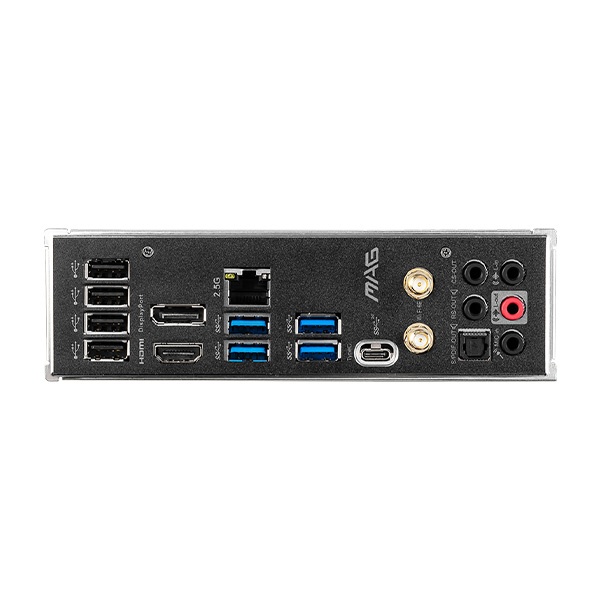

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
