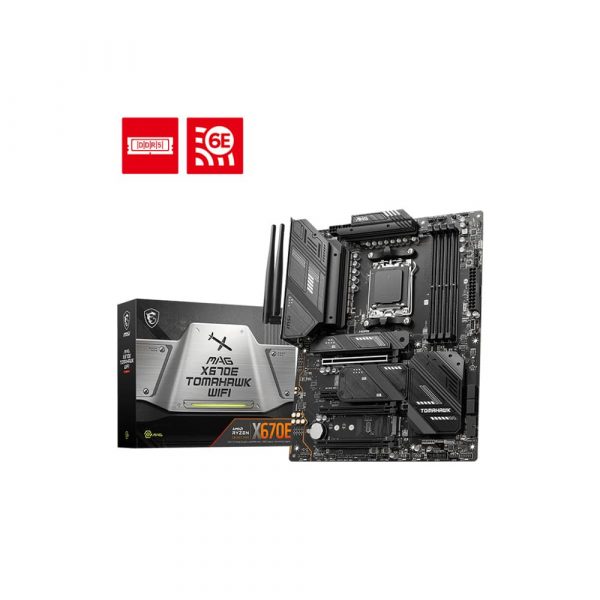

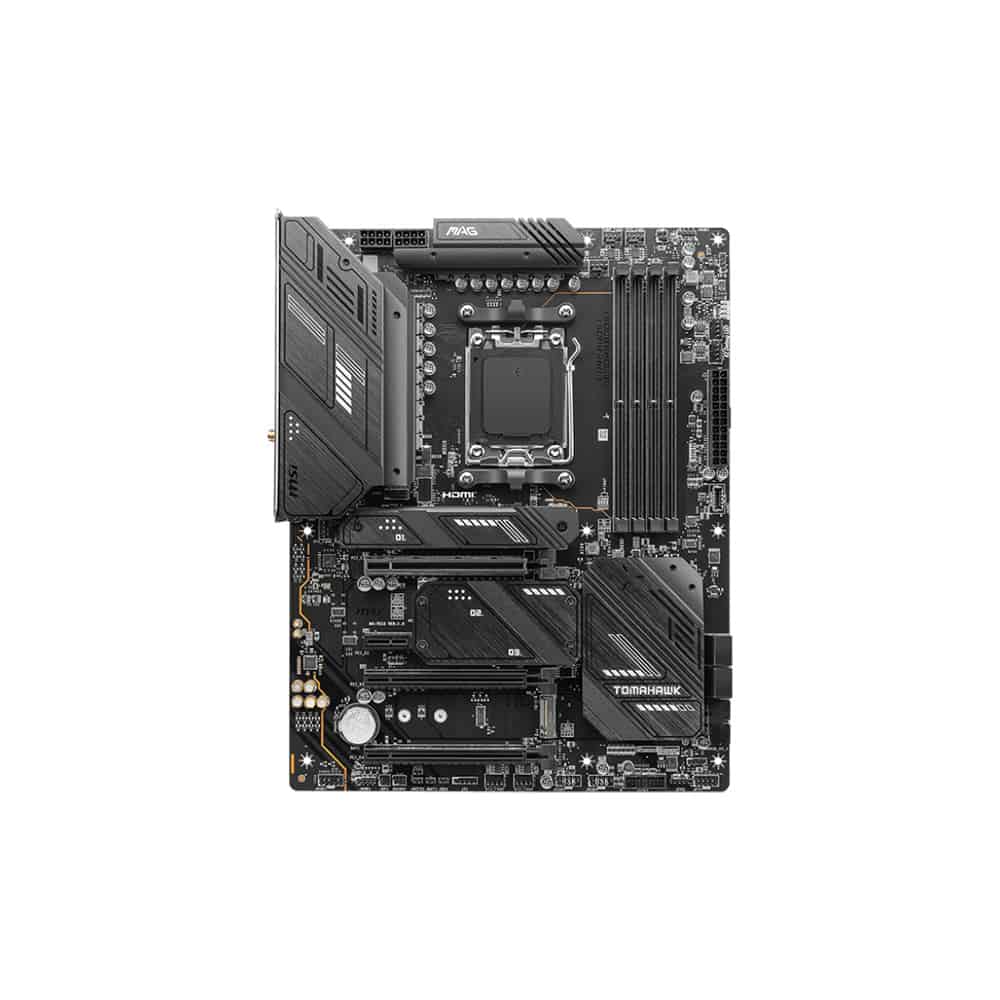

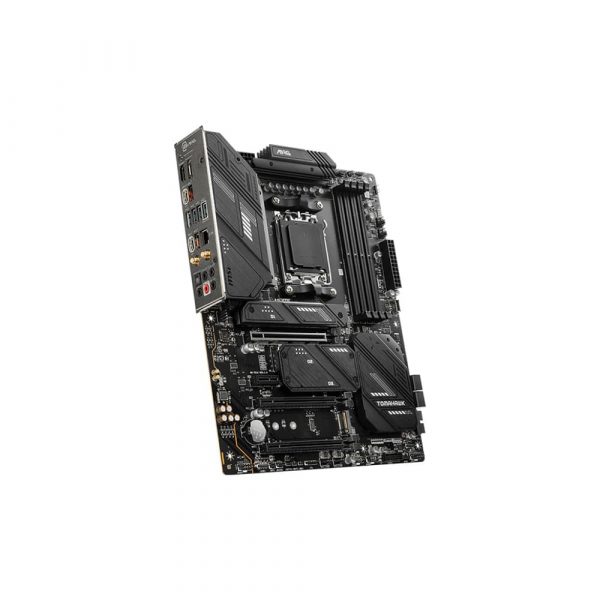

MSI MAG X670E Tomahawk WIFI DDR5 AM5 Socket AMD Ryzen 7000 Series Compatible Motherboard
Features:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
Overview:
COOLING OVERVIEW
Extended Heatsink
MSI MAG X670E TOMAHAWK WIFI has Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance with MSI MAG X670E TOMAHAWK WIFI.
Chipset Heatsink
MSI MAG X670E TOMAHAWK WIFI has The chipset heatsink which is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
7W/mK Thermal Pad & Additional Choke Pad
MSI MAG X670E TOMAHAWK WIFI has High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
OPTIMIZED FOR WATER COOLING
MSI MAG X670E TOMAHAWK WIFI is Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system with MSI MAG X670E TOMAHAWK WIFI. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI MAG X670E TOMAHAWK WIFI motherboard is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
PERFORMANCE
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
FAST AND FUTURE-READY STORAGE
MSI MAG X670E TOMAHAWK WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- EXPO(EXTENDED PROFILES FOR OVERCLOCKING) : Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
- GAME BOOST : Quickly overclock your CPU with a single button for more performance with MSI MAG X670E TOMAHAWK WIFI.
- M-FLASH : Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
- HARDWARE MONITOR : Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage with MSI MAG X670E TOMAHAWK WIFI.
- MEMORY TRY IT : Get extreme speed out of your system memory and get more performance.All you need in MSI MAG X670E TOMAHAWK WIFI.
- SEARCH & FAVORITES : A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXE
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring – all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
- Up to 50 GB PC cloud backup
- Real time Threat protection and Smart Firewall
- Password manager
- PC SafeCam
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
Specifications:
| Model | MAG X670E TOMAHAWK WIFI |
| Chipset | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| EXPANSION SLOT | 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID |
|
| USB |
|
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3 |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |

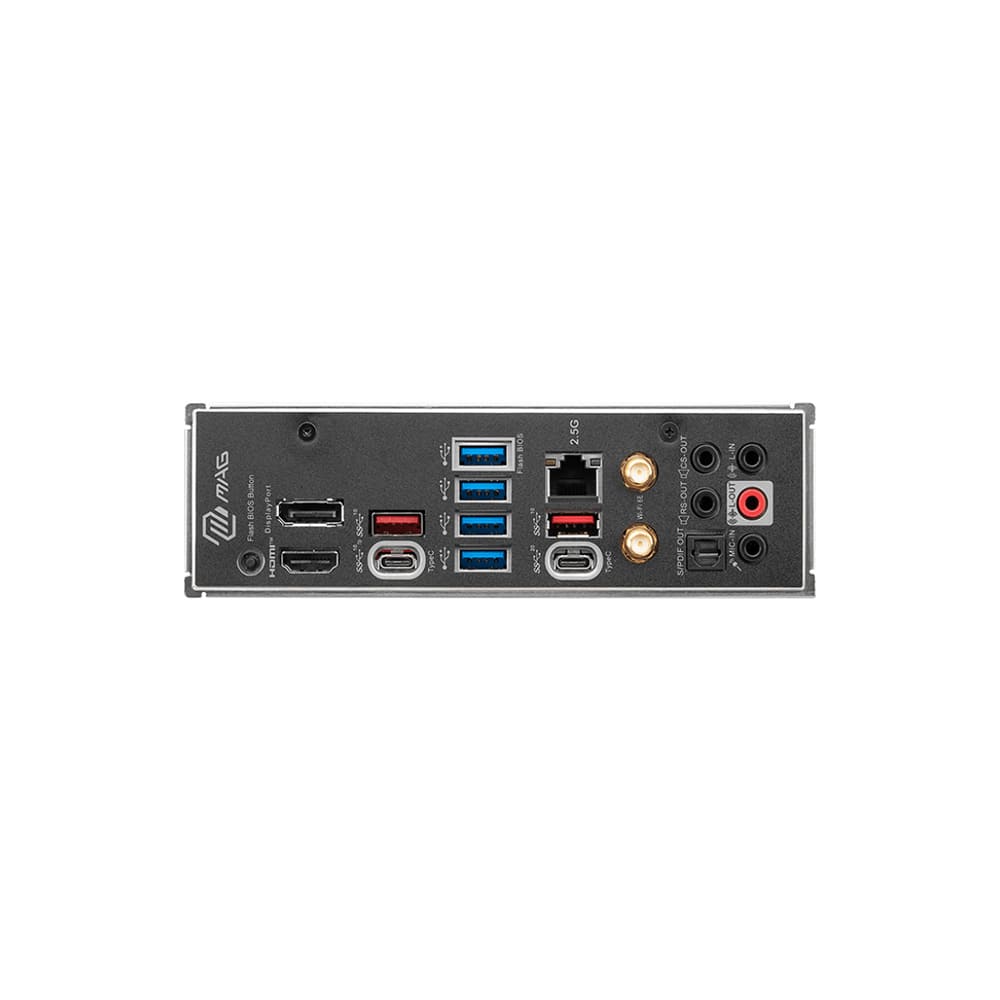

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
