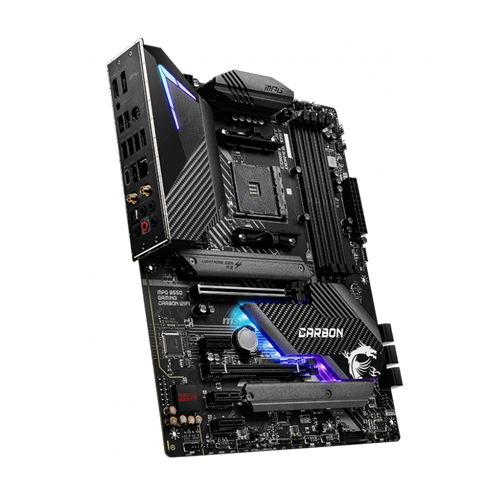

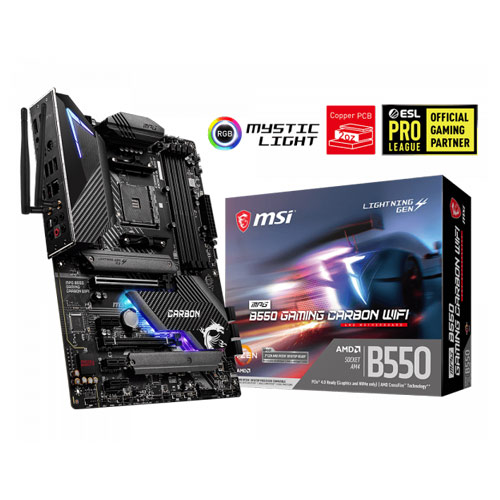

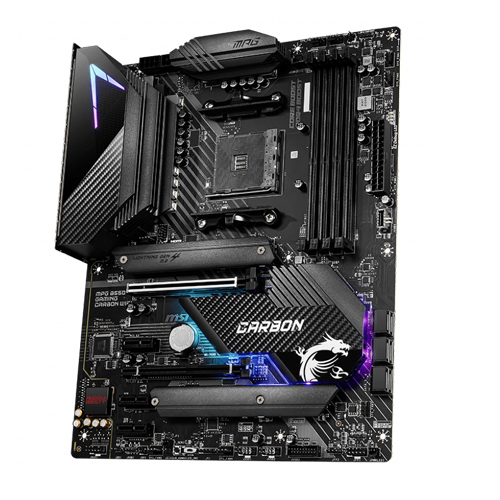

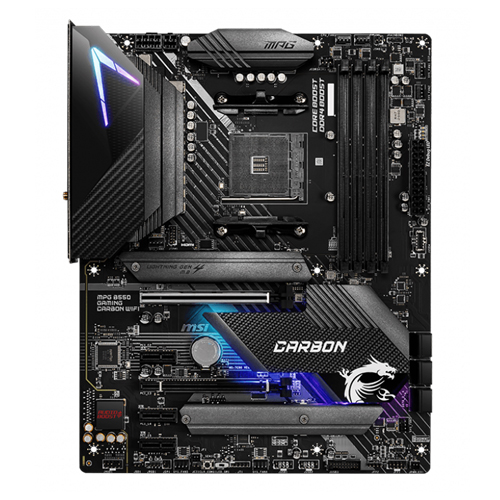

MSI MPG B550 Gaming Carbon WiFi AMD RYZEN B550 ATX AM4 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: 12+2+1 Digital Power with Doubler Design, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without
installing a CPU, memory or graphics card.

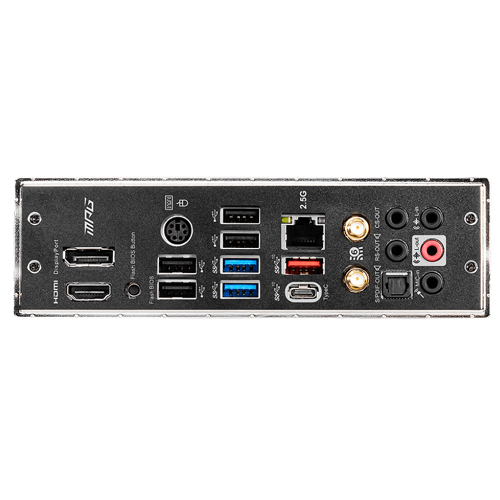

Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
EZ LED Control
One button to control LED on/off easily
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
8+4 Pin power supply
By providing 8+4 pin connectors to ensure adequate power
supply to unleash ultimate multi-core CPU performance.
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and Aluminum Backplate ensure the extreme
performance with low temp.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat
dissipation, ready for breaking the world record!
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability.
Specifications :
| CPU (MAX SUPPORT) | RYZEN 9 |
| SOCKET | AM4 |
| CHIPSET | AMD B550 Chipset |
| DDR4 MEMORY | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533/ 4600/ 4866/ 5000/ 5100 MHz by A-XMP OC MODE |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 3 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/10 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC1200 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
