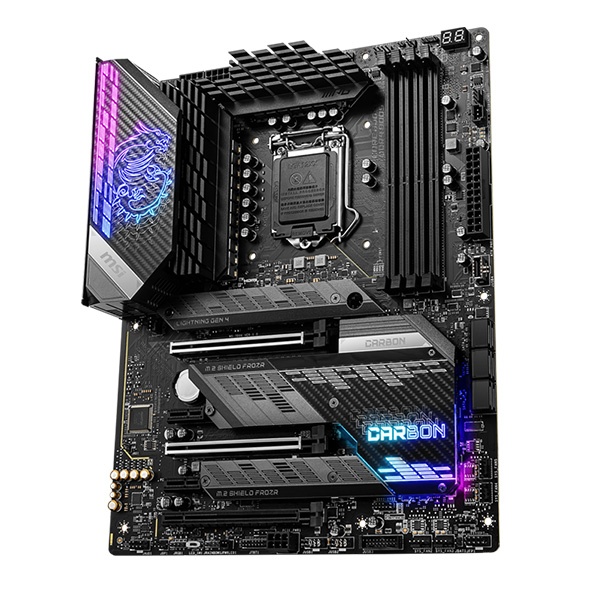

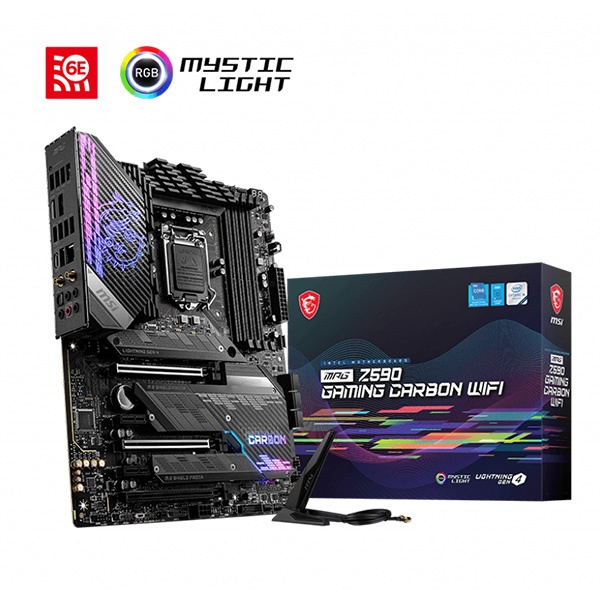

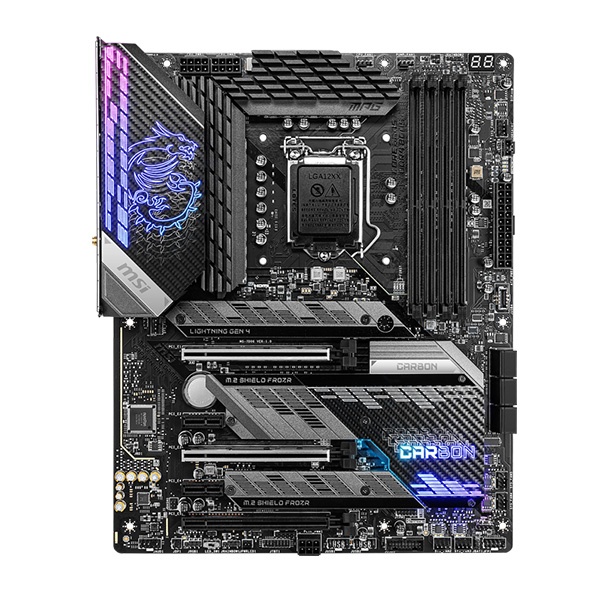

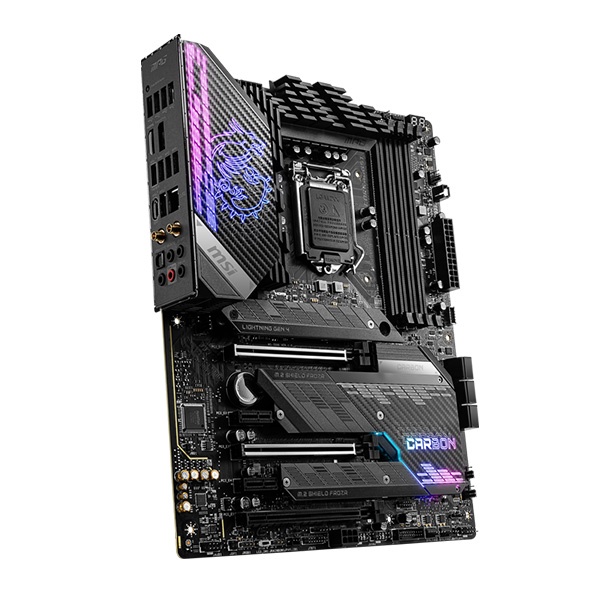

MSI MPG Z590 Gaming Carbon WiFi INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

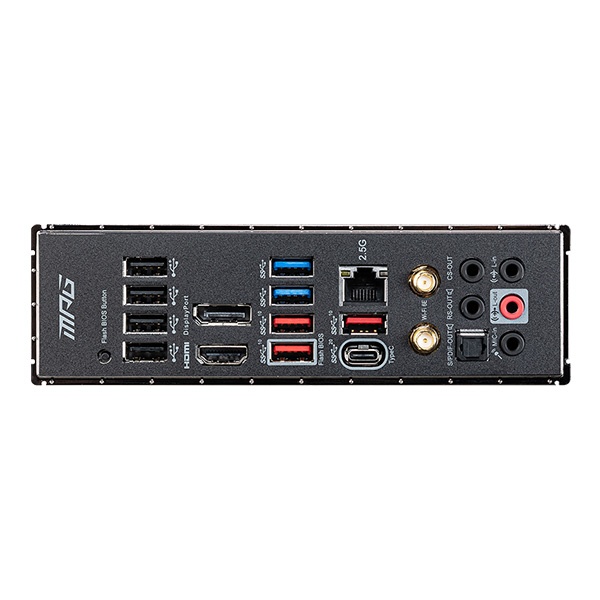

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
mosfet thermal pads / extra choke thermal pads / 3x onboard M.2
Shield Frozr
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ |
| 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ | |
| 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz | |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
