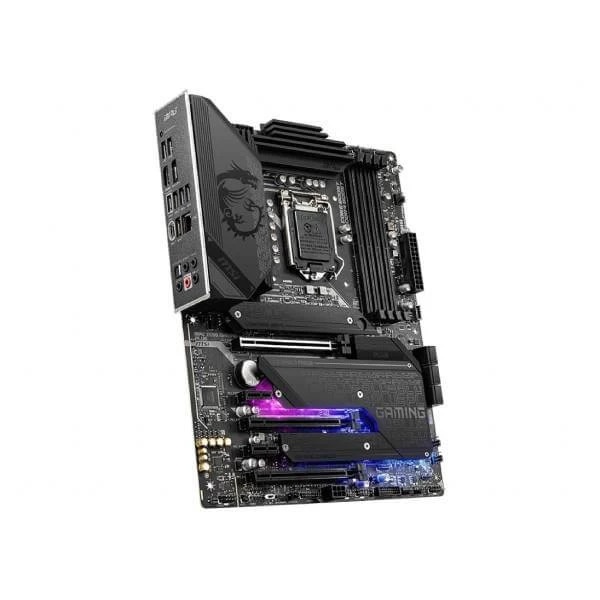

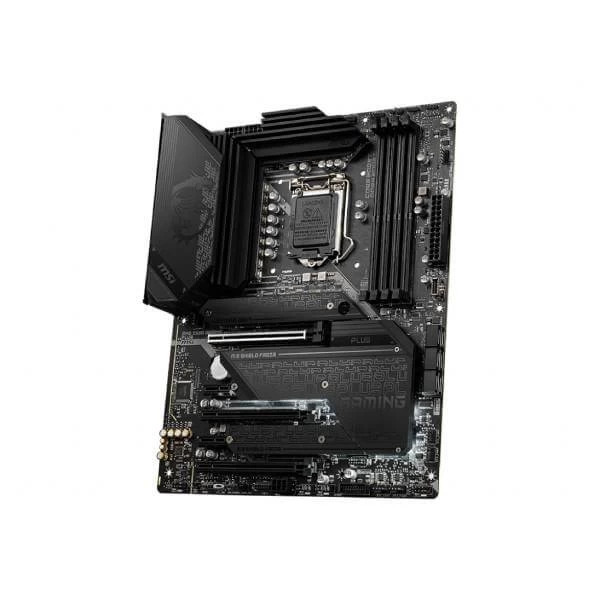

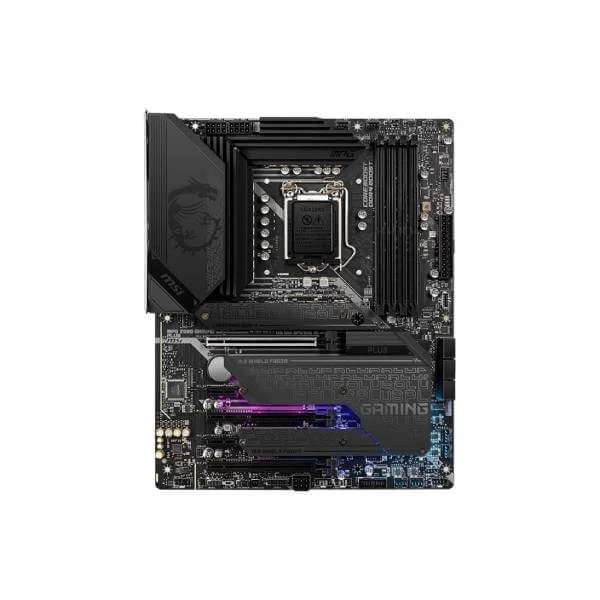

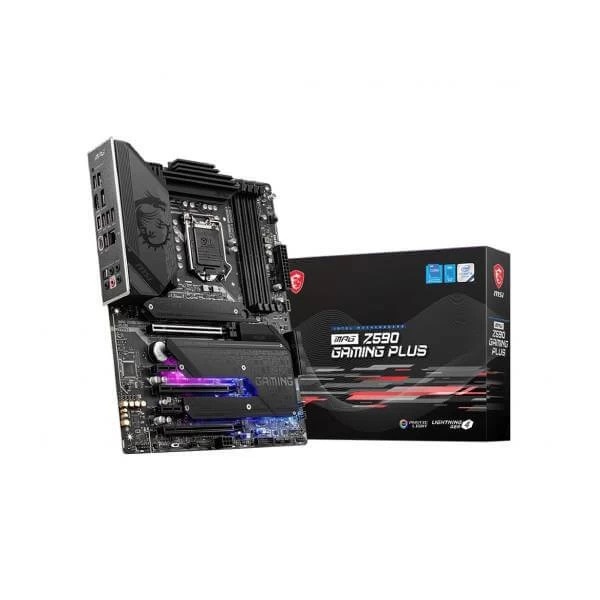

MSI MPG Z590 Gaming Plus INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

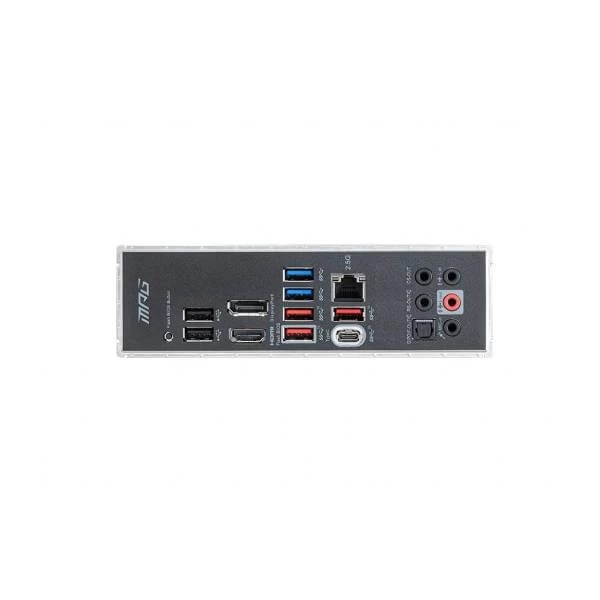

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
mosfet thermal pads / extra choke thermal pads / 3x onboard M.2
Shield Frozr
Audio Boost 5 HD
Ultimate audio solution with premium audio processor combining
ESS audio DAC and amplifier deliver the breathtaking experience.
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
MOSFET thermal pads / extra choke thermal pads / 2x onboard
M.2 Shield Frozr
Lightning Gen4 Solution
The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for
maximum transfer speed.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability for MSI MPG Z590 Gaming Plus
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | Supports S/PDIF output (Realtek® ALC4080) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
