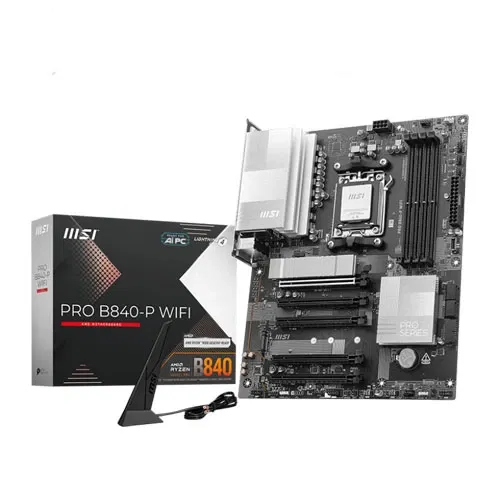

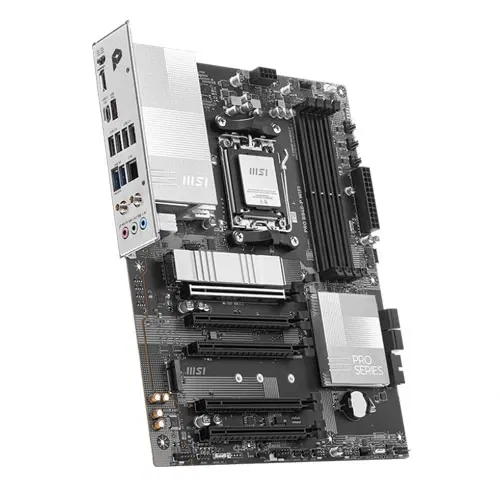

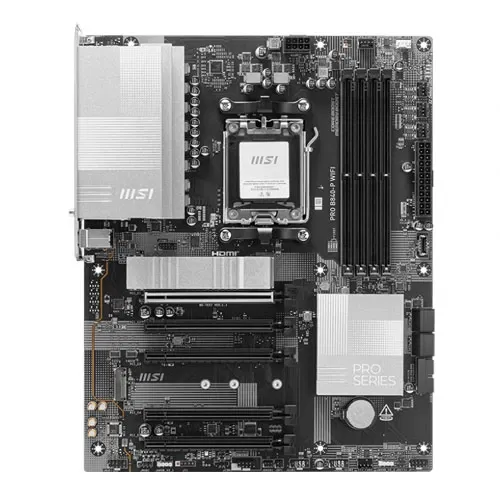

MSI Pro B840-P WiFi ATX Motherboard :
Overview :
The MSI Pro B840-P WiFi ATX Motherboard is built for professionals and enthusiasts who need a balance of performance, reliability, and cutting-edge connectivity. Designed with AMD B840 chipset and AM5 socket, MSI Pro B840-P WiFi ATX Motherboard supports AMD Ryzen™ 9000/8000/7000 Series processors, offering excellent computing power for workstations, gaming, and content creation. MSI Pro B840-P WiFi ATX Motherboard Equipped with Wi-Fi 7, PCIe 4.0, DDR5 memory support, and 2.5G LAN, MSI Pro B840-P WiFi ATX Motherboard motherboard ensures seamless multitasking, ultra-fast data transfers, and stable networking performance.
Features :
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
- 2.5G LAN with Wi-Fi 7 Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications :
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Capacity: 256GB |
| Memory Support | DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Ryzen™ 9000 Overclocking | – 1DPC 1R: Up to 8000+ MT/s – 1DPC 2R: Up to 6400+ MT/s – 2DPC 1R: Up to 6400+ MT/s – 2DPC 2R: Up to 4800+ MT/s |
| Memory Features | – Supports AMD POR & JEDEC Speed – Supports Memory Overclocking & AMD EXPO™ – Dual-Channel Mode – Non-ECC, Unbuffered Memory – Supports CUDIMM, Clock Driver Bypass Mode |
| Onboard Graphics | 1x HDMI™ 2.1 (Supports up to 4K 60Hz) Only available on CPUs with integrated graphics |
| PCI-E Slots | 5x PCI-E x16 slots: – PCI_E1: PCIe 4.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8 (Ryzen™ 8700/8600/8400), PCIe 4.0 x4 (Ryzen™ 8500/8300) – PCI_E2: PCIe 3.0 x1 (Chipset) – PCI_E3: PCIe 3.0 x1 (Chipset) – PCI_E4: PCIe 3.0 x4 (Chipset) – PCI_E5: PCIe 3.0 x1 (Chipset) |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | – M.2 Slots: 2x M.2 – M.2_1: PCIe 4.0 x4 (From CPU), Supports 2280/2260 Devices – M.2_2: PCIe 4.0 x4 (From CPU), Supports 22110/2280/2260 Devices – SATA Ports: 4x SATA 6G |
| M.2 Support | – M.2_2: PCIe 4.0 x4 (Ryzen™ 9000/7000), PCIe 3.0 x4 (Ryzen™ 8700/8600/8400), PCIe 3.0 x2 (Ryzen™ 8500/8300) Refer to manual for SSD heatsink restrictions |
| RAID Support | RAID 0, RAID 1, RAID 10 (SATA Storage Devices) |
| USB Ports | – Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C – Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal I/O | – 1x ATX Power Connector – 1x CPU Power Connector – 1x CPU Fan – 1x Combo Fan (Pump/Sys Fan) – 4x System Fan – 2x Front Panel Headers – 1x Chassis Intrusion Header – 1x Front Audio Header – 1x COM Port – 1x Tuning Controller Connector – 2x Addressable RGB LED Connectors – 1x RGB LED Connector – 1x TPM Pin Header (Supports TPM 2.0) – 4x USB 2.0 Ports – 2x USB 5Gbps Type-A Ports – 1x USB 5Gbps Type-C Port |
| Wireless LAN & Bluetooth | – Wi-Fi 7 (Pre-installed in M.2 Key-E slot) – Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps – Supports 802.11 a/b/g/n/ac/ax/be – Bluetooth 5.4, MLO, 4KQAM Wi-Fi 7 & Bluetooth 5.4 require Windows 11 version 24H2 |
| LED Features | 4x EZ Debug LED |

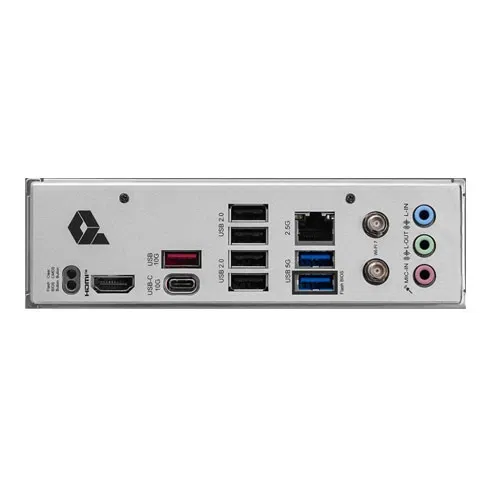

| Back Panel Ports | – Clear CMOS Button – USB 10Gbps Type-A – USB 2.0 – 2.5G LAN – Wi-Fi/Bluetooth Antenna Connectors – Audio Connectors – Flash BIOS Button – HDMI™ 2.1 Port – USB 10Gbps Type-C – USB 5Gbps Type-A |
| Operating System | Windows® 11 64-bit |
| PCB Info | ATX, 243.84mm x 304.8mm |
| Warranty | 3 Years |
