MSI PRO B860-P WiFi ATX Motherboard :
Overview :
The MSI PRO B860-P WiFi ATX Motherboard is designed for professionals and enthusiasts looking for stability, performance, and expandability. Powered by the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket, ensuring seamless multitasking and high-speed connectivity. Featuring DDR5 memory support, PCIe 5.0, Wi-Fi 7, and Thunderbolt™ 4, MSI Pro B860-P WiFi ATX Motherboard is perfect for demanding workloads, gaming, and high-speed data transfer.
Key Features :
Supports Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket
Dual-channel DDR5 memory support up to 8600+ MT/s (OC)
PCIe 5.0 x16 slot for next-gen graphics cards and expansion
Wi-Fi 7 and 5Gbps LAN for ultra-fast networking
Thunderbolt™ 4 with up to 40Gbps transfer speed and 8K display support
Advanced cooling with MOSFET heatsinks, M.2 Shield Frozr, and thermal pads
USB 10Gbps Type-C and multiple USB 3.2 ports
High-quality audio with Realtek ALC897 7.1-channel HD sound
Specifications :
| Chipset | Intel B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Socket | LGA 1851 |
| Memory | 4x DDR5 UDIMM, dual-channel, up to 256GB, 8600+ MT/s (OC) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 4.0 x1 |
| Storage | 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0), 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |

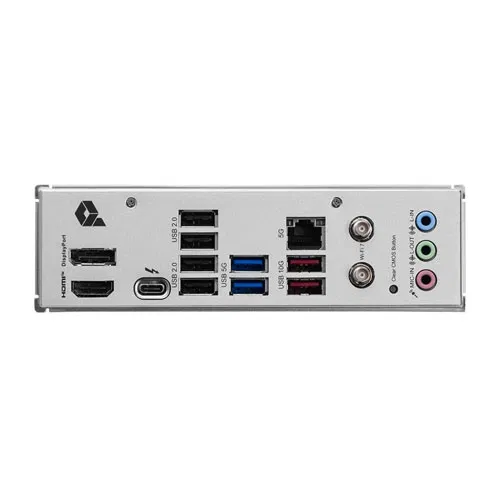

| USB Ports | 1x Thunderbolt™ 4, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 6x USB 5Gbps, 6x USB 2.0 |
| Networking | 5Gbps LAN (Realtek 8126), Intel® Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Cooling | Extended heatsinks, EZ M.2 Shield Frozr II, multiple fan headers |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Operating System | Windows 11 (64-bit) |
| Warranty | 3 Years |
