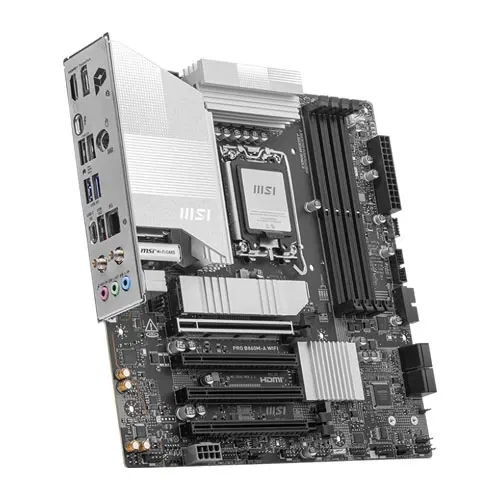

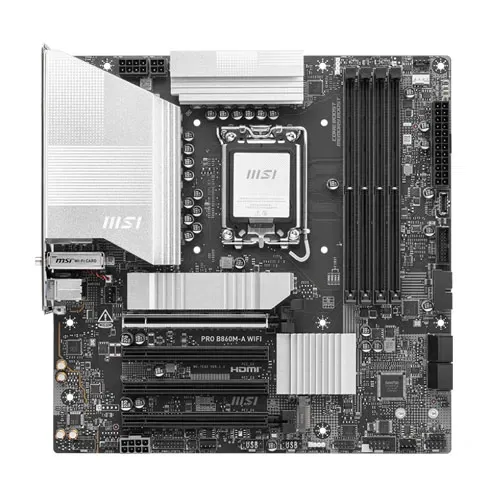

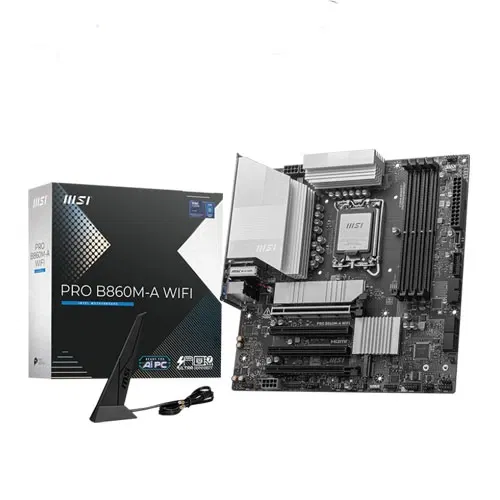

MSI Pro B860M-A WiFi M-ATX Motherboard :
Overview :
The MSI Pro B860M-A WiFi M-ATX Motherboard built for reliability and performance. Designed for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, MSI Pro B860M-A WiFi M-ATX Motherboard provides a stable foundation for business, gaming, and productivity. Featuring next-gen connectivity, efficient cooling, and high-speed networking, MSI Pro B860M-A WiFi M-ATX Motherboard ensures smooth performance for modern computing needs.
Features :
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications :
| Chipset | Intel B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s |
| Overclocking Speeds | – 1DPC 1R: Up to 8800+ MT/s – 1DPC 2R: Up to 7200+ MT/s – 2DPC 1R: Up to 6400+ MT/s – 2DPC 2R: Up to 5600+ MT/s |
| Additional Memory Features | Supports Intel® POR Speed, JEDEC Speed, XMP 3.0, Dual-Controller Dual-Channel Mode, Non-ECC Unbuffered Memory, CUDIMM |
| Onboard Graphics | – 1x HDMI™ 2.1 (4K 60Hz) – 1x DisplayPort 1.4 (4K 60Hz) – 1x Type-C DisplayPort (Thunderbolt™ 4) (4K 120Hz / 8K 60Hz) Available only with processors featuring integrated graphics |
| Expansion Slots | – 4x PCI-E x16 slots – PCI_E1 (PCIe 5.0 x16, from CPU) – PCI_E2 (PCIe 4.0 x1, from Chipset) – PCI_E3 (PCIe 4.0 x1, from Chipset) – PCI_E4 (PCIe 4.0 x4, from Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | – 3x M.2 Slots – M.2_1 (PCIe 5.0 x4, from CPU, 2280/2260/2242) – M.2_2 (PCIe 4.0 x4, from Chipset, 2280/2260) – M.2_3 (PCIe 4.0 x2, from Chipset, 2280) – 4x SATA 6G |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices |
| Onboard Thunderbolt | 1x Thunderbolt™ 4 (Rear) – Up to 40Gbps with Thunderbolt devices – Up to 20Gbps with USB4 devices – Up to 10Gbps with USB 3.2 devices – Supports 5V/3A, 15W power charging – Daisy-chain support for 3x Thunderbolt 4 or 5x Thunderbolt 3 devices – Supports 8K display |
| USB Ports | – Rear: – 2x USB 2.0 – 2x USB 5Gbps Type-A – 1x USB 5Gbps Type-C – 1x USB 10Gbps Type-A – Front: – 4x USB 2.0 – 4x USB 5Gbps Type-A – 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126 5Gbps LAN |
| Wireless & Bluetooth | – Intel® Wi-Fi 7 (Pre-installed in M.2 Key-E slot) – Supports 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps – Bluetooth® 5.4, MLO, 4KQAM (Wi-Fi 7 and Bluetooth 5.4 will be ready in Windows 11 version 24H2) |
| Internal I/O | – 1x Thunderbolt 5 card connector (JTBT5) – 1x ATX Power Connector – 2x CPU Power Connector – 1x PCIe Power Connector (8-pin) – 1x CPU Fan – 1x Combo Fan (Pump_SYS Fan) – 3x System Fan – 2x Front Panel (JFP) – 1x Chassis Intrusion (JCI) – 1x Front Audio (JAUD) – 1x COM Port (JCOM) – 1x Tuning Controller Connector (JDASH) – 2x Addressable V2 RGB LED Connector (JARGB_V2) – 1x RGB LED Connector (JRGB) – 1x TPM 2.0 Pin Header – 4x USB 2.0 Ports – 4x USB 5Gbps Type-A Ports – 1x USB 10Gbps Type-C Port |
| LED Feature | 4x EZ Debug LED |

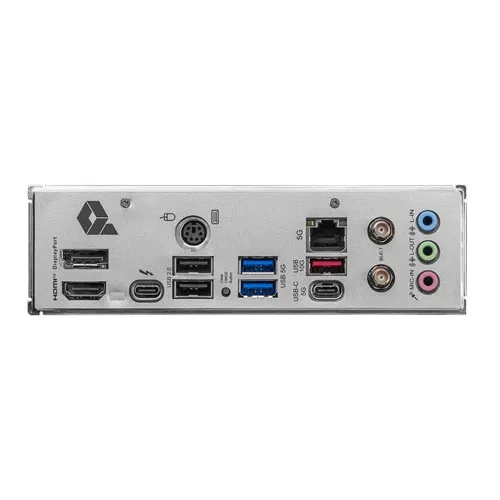

| Back Panel Ports | – 1x DisplayPort – 1x HDMI™ – 1x Thunderbolt™ 4 40Gbps (Type-C) – 1x USB 10Gbps Type-A – 1x USB 5Gbps Type-C – 2x USB 2.0 – 2x USB 5Gbps Type-A – 1x 5G LAN Port – 1x Wi-Fi / Bluetooth Antenna Connector – 1x Clear CMOS Button – Audio Connectors |
| Operating System | Windows® 11 64-bit |
| Form Factor | Micro-ATX (243.84mm x 243.84mm) |
| Warranty | 3 Years |
