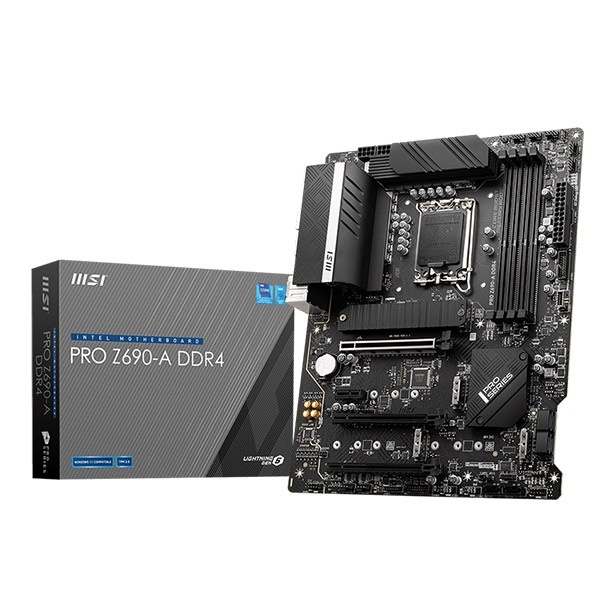

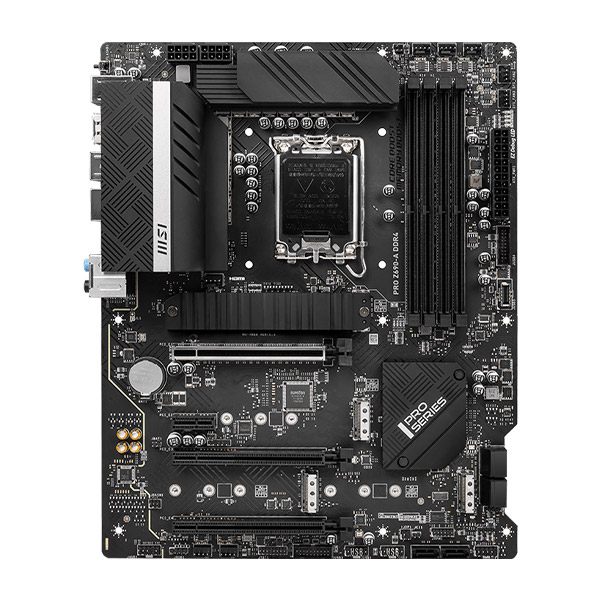

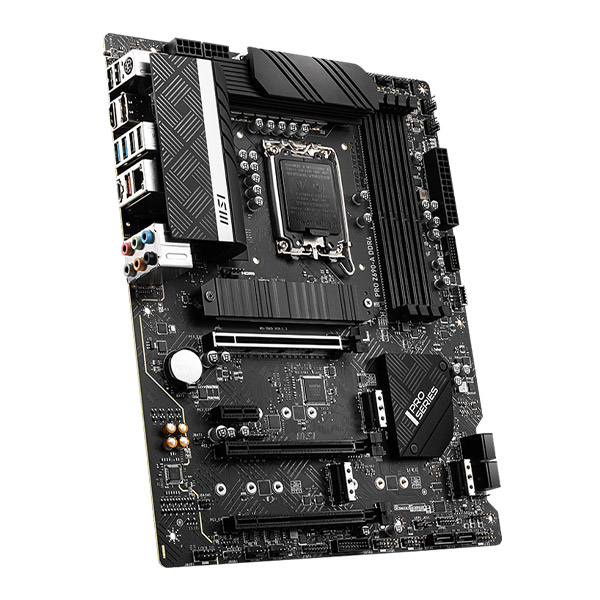

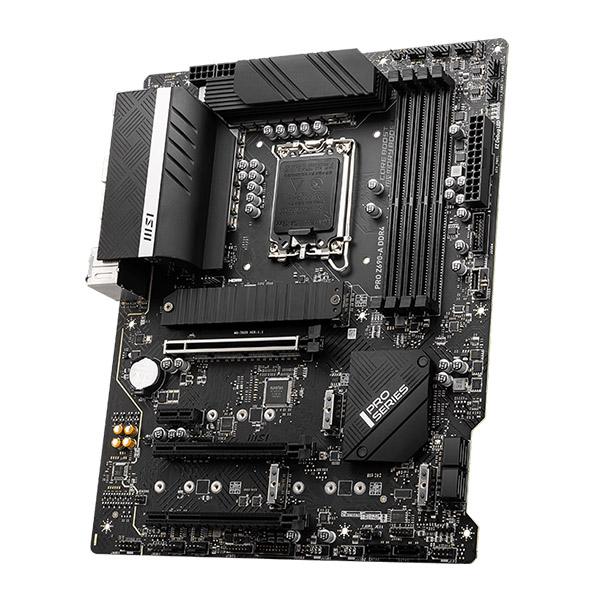

MSI Pro Z690-A DDR4 INTEL 12TH GENERATION Z690 ATX LGA 1700 Socket DDR4 RAM and PCIE 5 Support Gaming Motherboard
Overview :
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works in MSI Pro Z690-A DDR4
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance in MSI Pro Z690-A DDR4
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR4 MEMORY | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Intel® I225-V 2.5Gbps LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 4(Gen 1, Type A) |

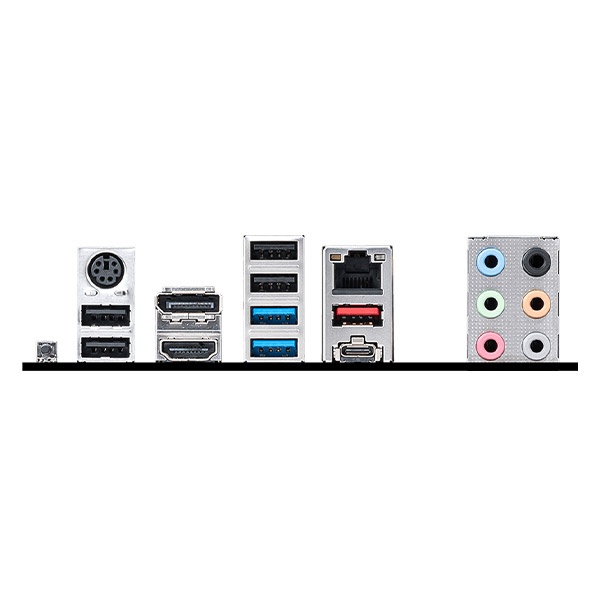

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
