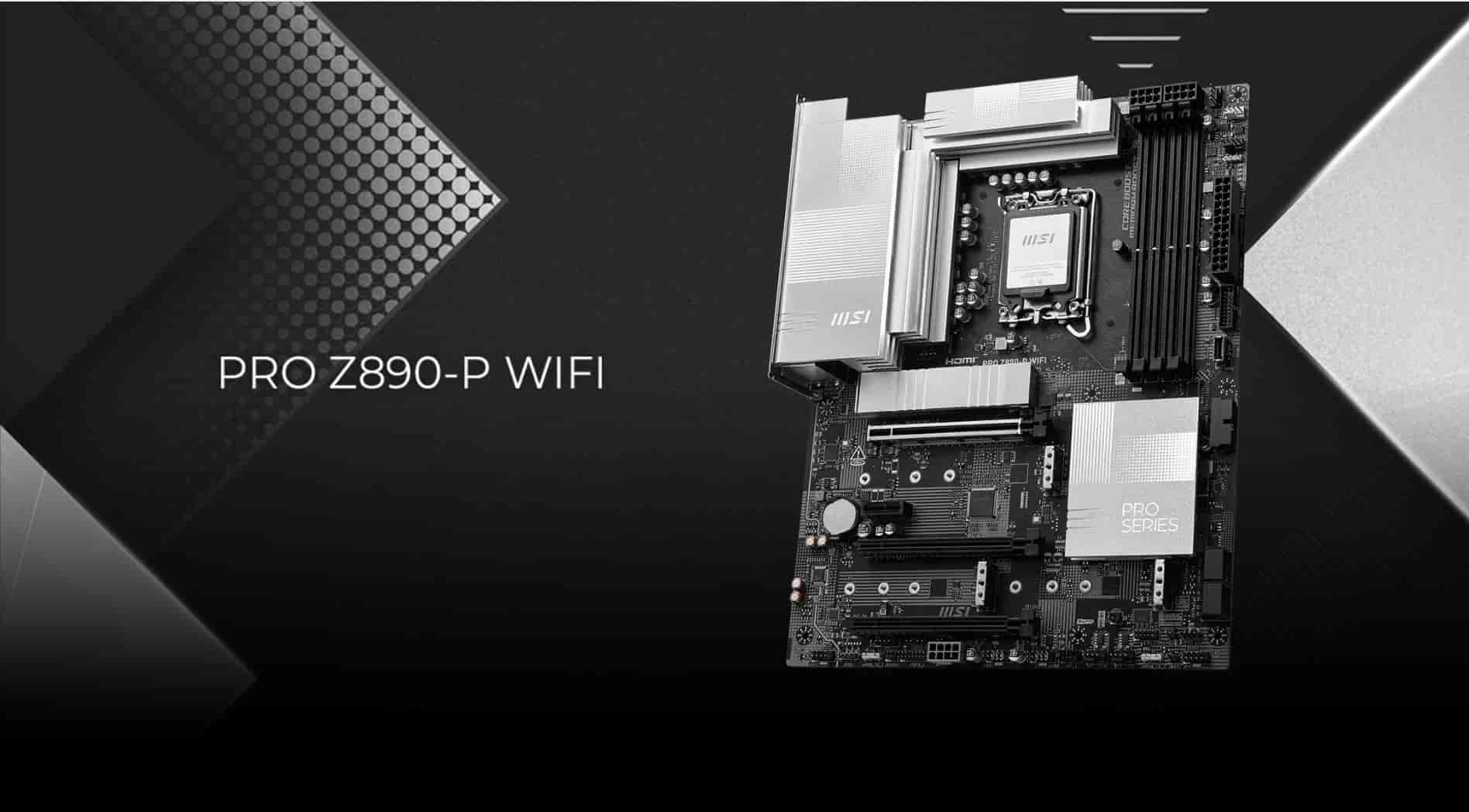

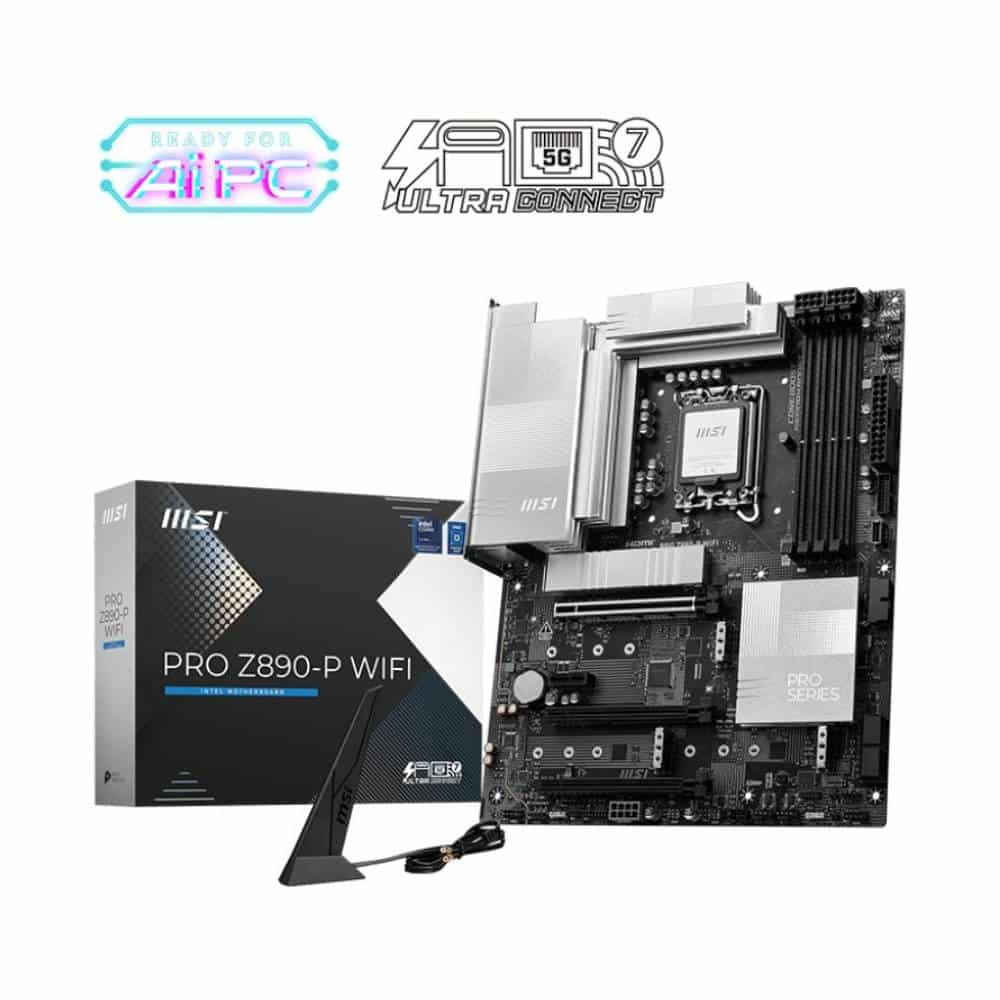

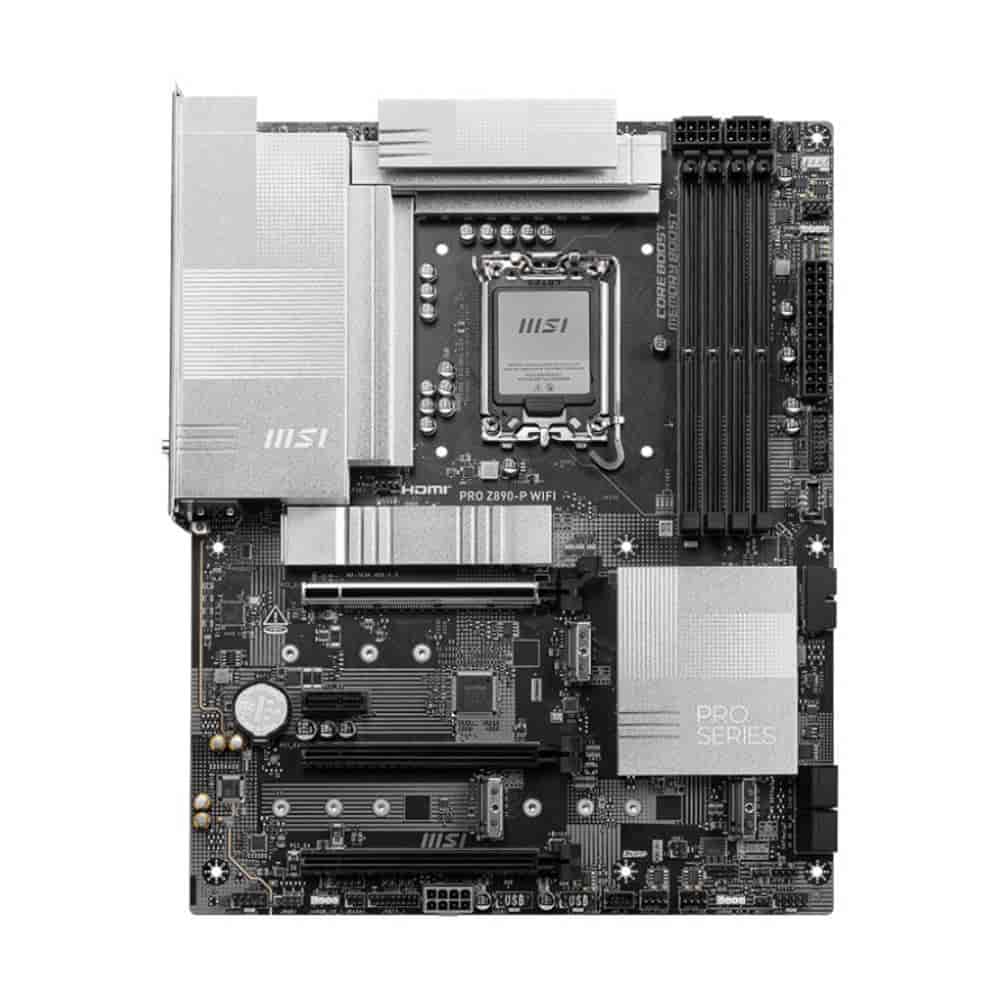

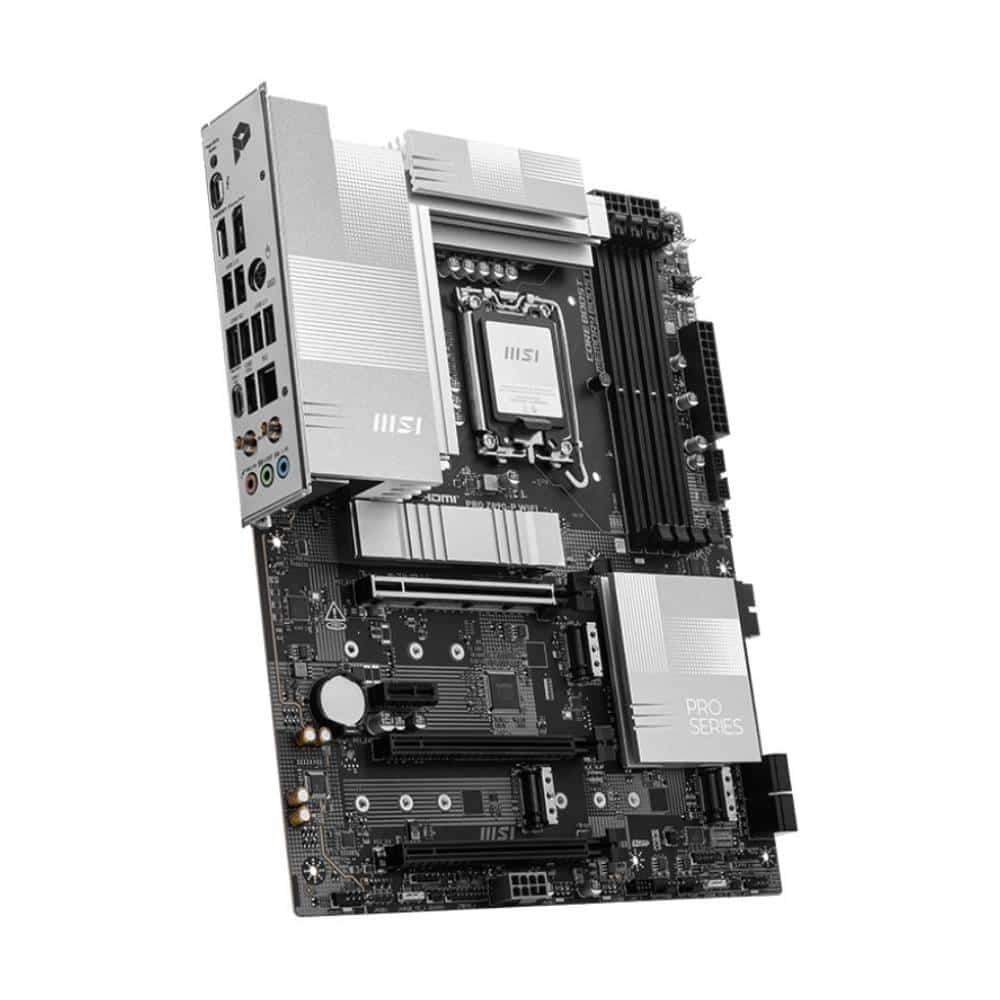

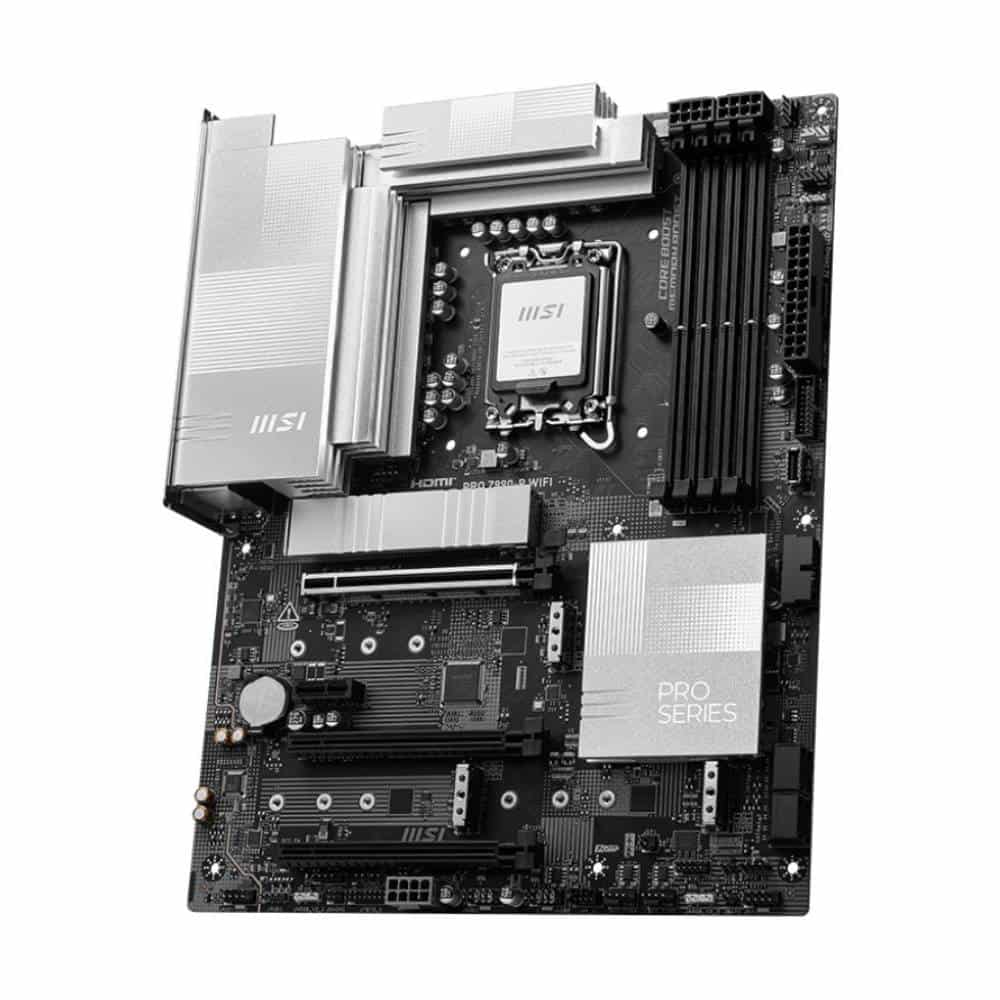

MSI Pro Z890-P WIFI Motherboard

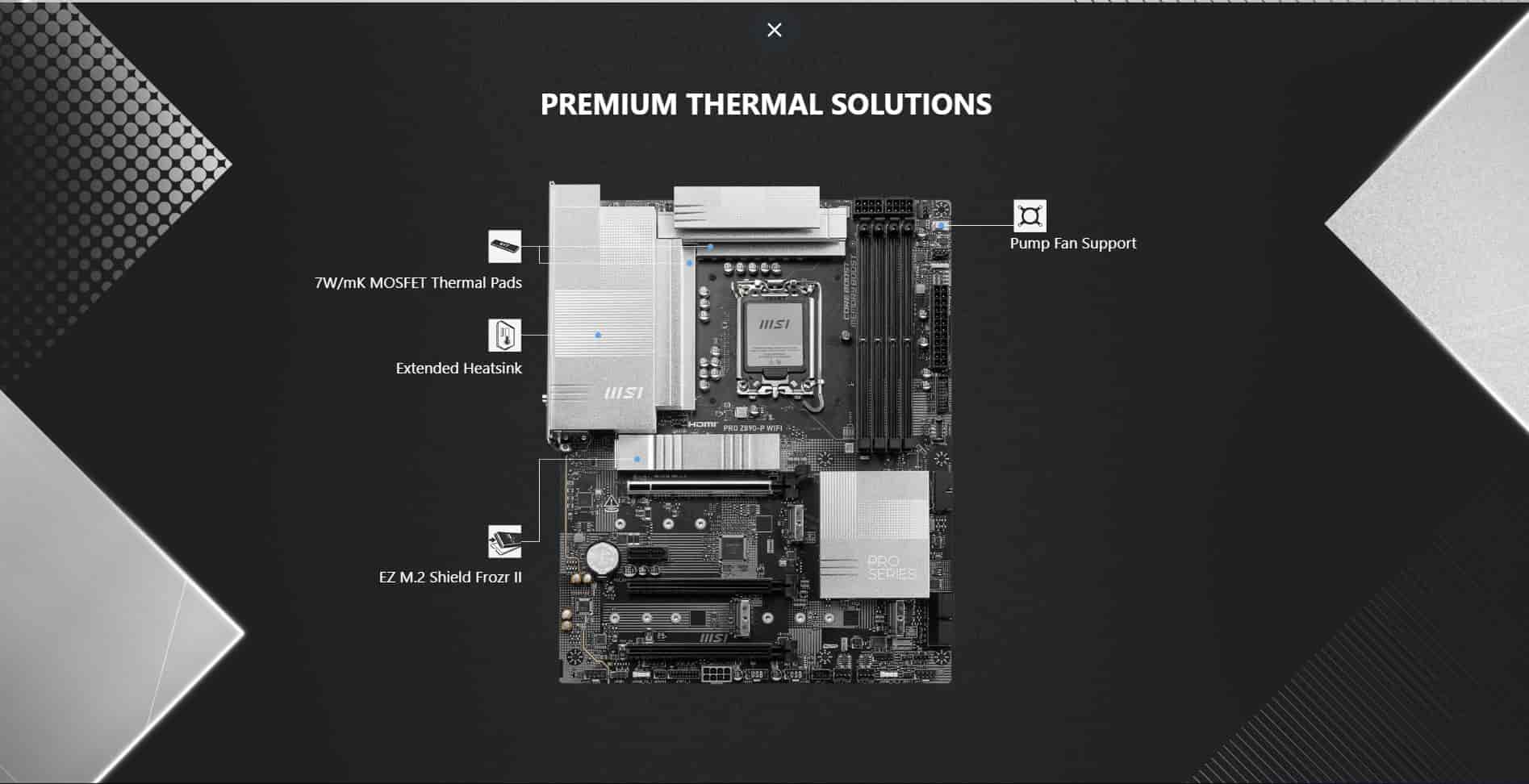

PREMIUM THERMAL SOLUTIONS
7W/mK MOSFET Thermal Pads, Extended Heatsink, M.2 Shield Frozr, Pump Fan Support.

14+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, MSI Pro Z890-P WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION
The PCB design of MSI Pro Z890-P WIFI has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI Pro Z890-P WIFI is ready to deliver the world-class memory performance.

Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance with MSI Pro Z890-P WIFI. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage in MSI Pro Z890-P WIFI.

solid pin design
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins MSI Pro Z890-P WIFI. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

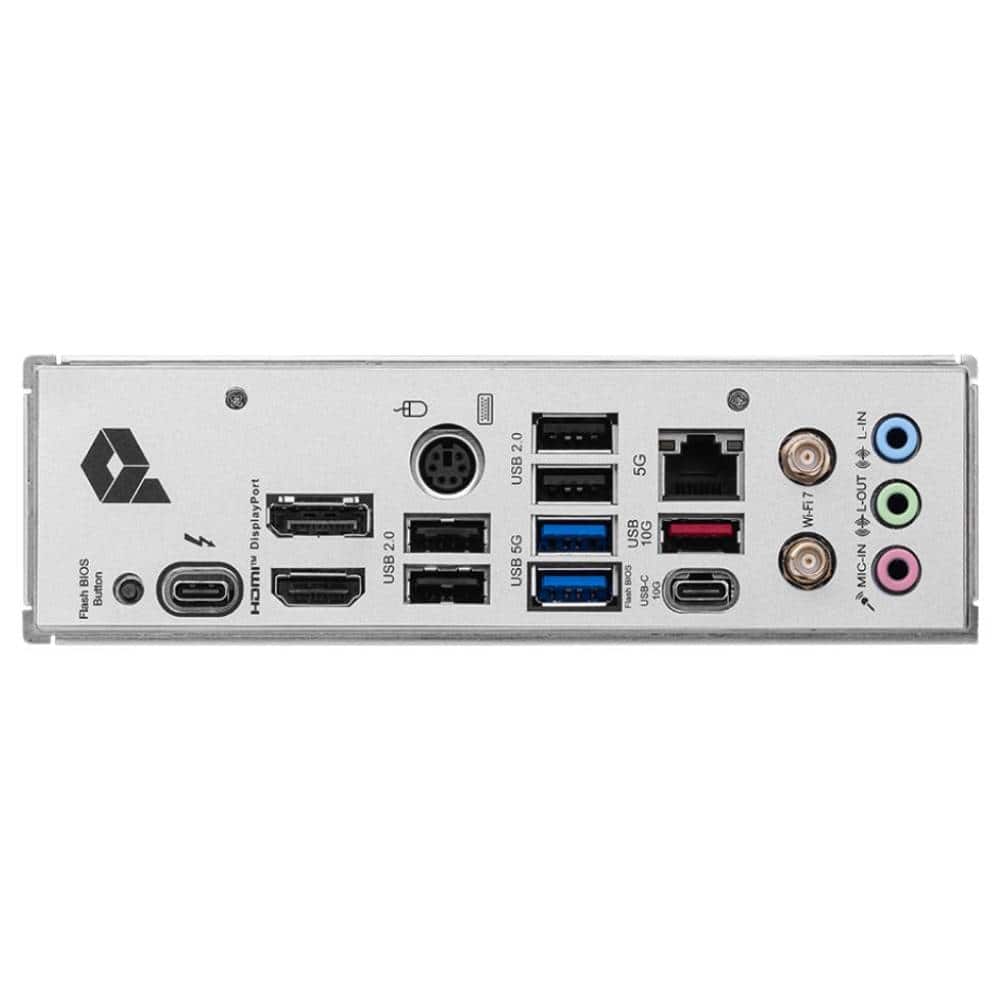

Anti-corrosive Stainless Steel IO Shield
An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields with MSI Pro Z890-P WIFI.

Over Current Protection
MSI Pro Z890-P WIFI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI’s dedication to producing motherboards that prioritize durability and stability.

The Grounding Structure of Power Phases
The grounding structure of power phases is the MSI Pro Z890-P WIFI’s exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

Extended Heatsink
MSI Pro Z890-P WIFI has Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance with MSI Pro Z890-P WIFI.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation with MSI Pro Z890-P WIFI.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI Pro Z890-P WIFI’s premium network solution provides incredible data transfer speed for demanding users.

Specifications :
