MSI RTX 3060 AERO ITX OC 12GB GDDR6 192-BIT GAMING GRAPHICS CARD
Features :
The MSI RTX 3060 AERO ITX OC 12GB lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
- 1792 MHz / 15 Gbps
- 12GB GDDR6
- DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Small Form Factor Design
- Perfect for small form factor systems and HTPC.
- Custom fan design with a unique curve to enhance heat dissipation.
- Copper heatpipes maximize heat transfer from the surface of the baseplate for better cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Afterburner Overclocking Utility
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
Overview :
SMALL PACKAGE, BIG PUNCH
The power of a full size graphics card in an incredibly small package. MSI RTX 3060 AERO ITX OC 12GB graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card.
This means they will fit into virtually any system and ensure a smooth gaming experience.
WE’VE GOT YOUR BACK

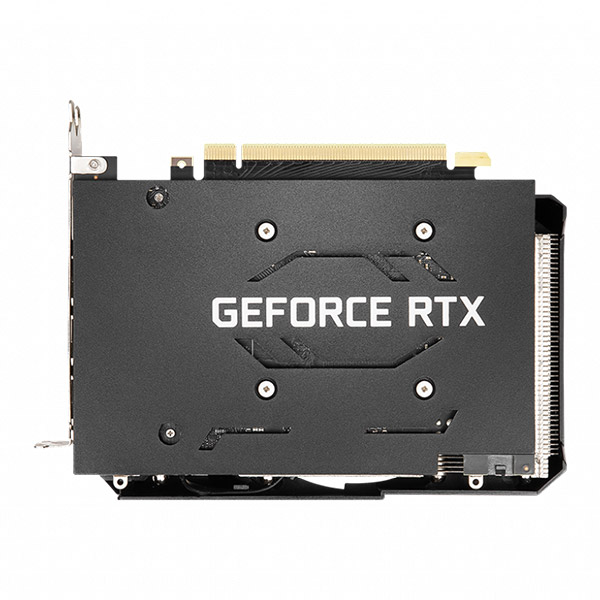

MSI RTX 3060 AERO ITX OC 12GB has a protective backplate helps to strengthen the graphics card and complements the design to look even better.
DESIGNED FOR BETTER DISSIPATION
Compared to generic fan designs, AERO ITX series fans utilize custom fan design with a unique curve to enhance heat dissipation by generating more airflow and air pressure.
HIGH-EFFICIENCY HEATPIPES
Up to 6mm thick copper heat pipes maximize heat transfer from the surface of the baseplate for better cooling.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
TRACES OF BRILLIANCE
TAILORED PCB DESIGN
Not all circuit boards are created equal. MSI RTX 3060 AERO ITX OC 12GB has a custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Specification :
| MODEL NAME | MSI RTX 3060 AERO ITX OC 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3060 |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 3584 Units |
| CORE CLOCKS | Boost : 1792 MHz |
| MEMORY SPEED | 15 Gbps |
| MEMORY | 12GB GDDR6 |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 170 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 172 x 125 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 503g / 833g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
