MSI RTX 3060 Gaming X 12GB GDDR6 192-Bit Gaming Graphics Card
Features :
The MSI RTX 3060 Gaming X 12GB lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
- 1837 MHz / 15 Gbps
- 12GB GDDR6
- DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TWIN FROZR 8 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Overview :
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust.
Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT ‘EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TWIN FROZR 8 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TWIN FROZR 8
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TWIN FROZR 8 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the MSI RTX 3060 Gaming X 12GB GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
DON’T SWEAT THE DETAILS
STRONG & COOL

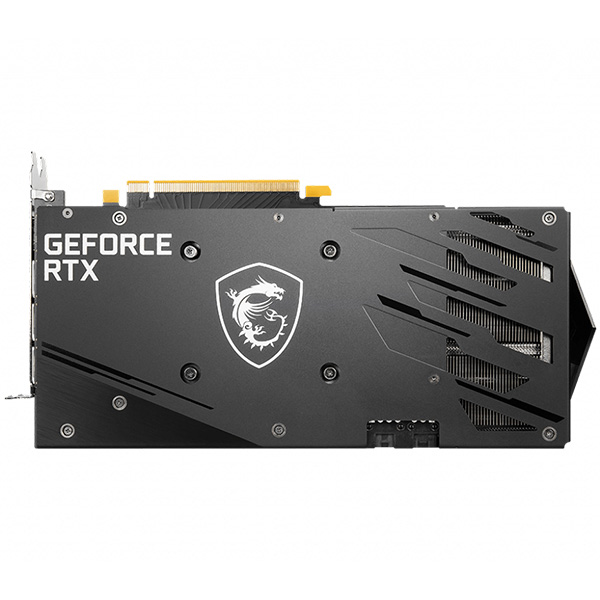

MSI RTX 3060 Gaming X 12GB has sturdy brushed aluminum Backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Stay Frosty
MSI RTX 3060 Gaming X 12GB has an abundance of thermal pads provide additional heat dissipation for board components.
Chillingly Silent
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
TOUGH ENOUGH TO BACK YOU UP!
MSI RTX 3060 Gaming X 12GB has been crafted to serve you well during intense gameplay. MSI RTX 3060 Ti Gaming X 8GB LHR legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Specification :
| MODEL NAME | MSI RTX 3060 Gaming X 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3060 |
| INTERFACE | PCI Express® Gen 4 |
| CUDA® CORES | 3584 Units |
| CORE CLOCKS | Boost: 1837 MHz |
| MEMORY SPEED | 15 Gbps |
| MEMORY | 12GB GDDR6 |
| MEMORY BUS | 192-bit |

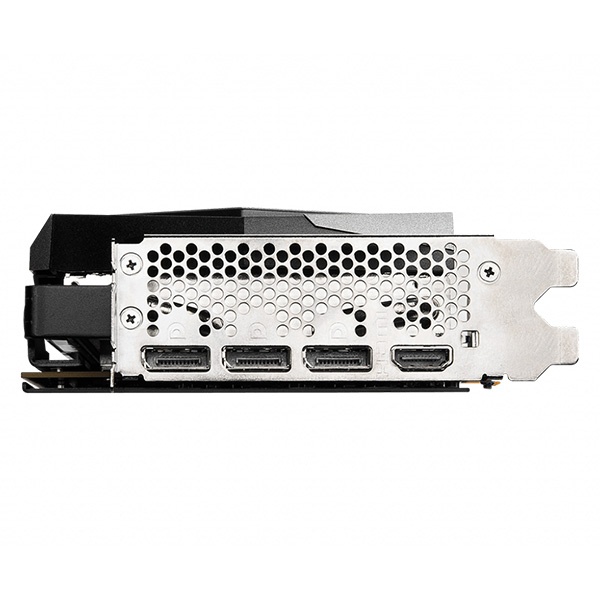

| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 170W |
| POWER CONNECTORS | 8-pin x 1 + 6-pin x 1 |
| RECOMMENDED PSU | 600w |
| CARD DIMENSION (MM) | 278 x 131 x 51 mm |
| WEIGHT (CARD / PACKAGE) | 996 g / 1567 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
| WARRANTY | 3 Years |
