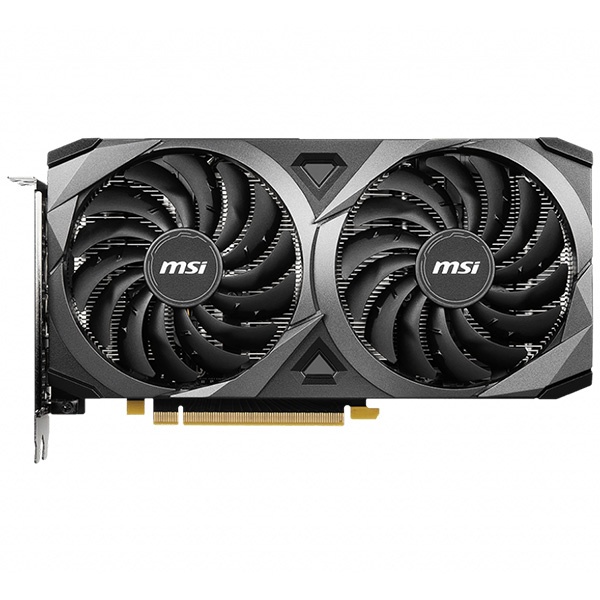

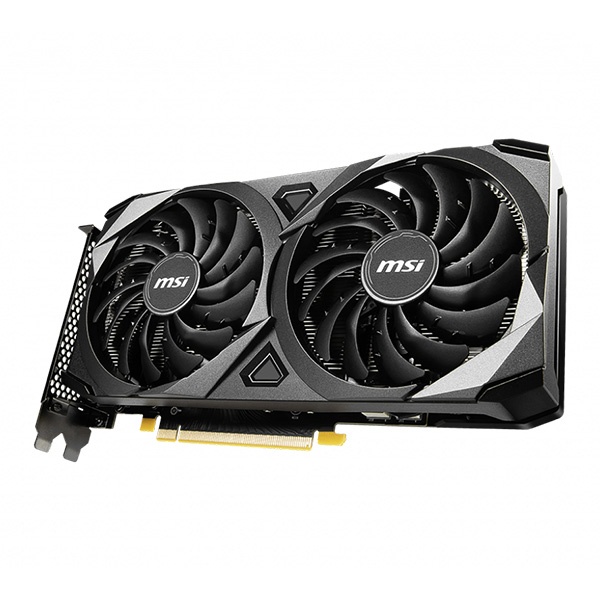

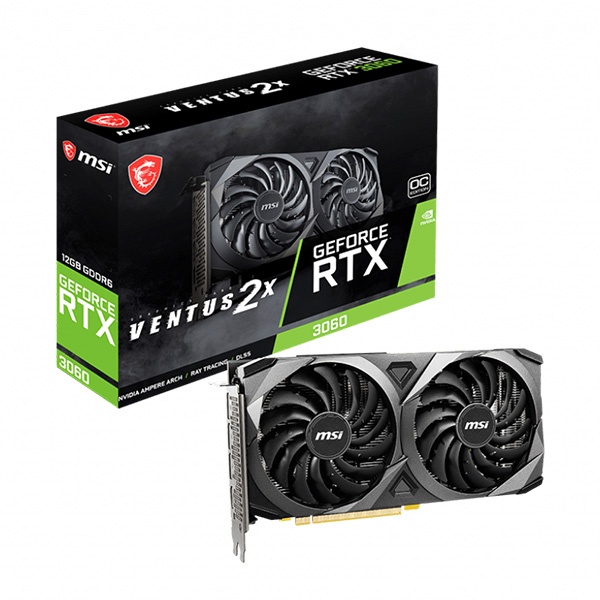

MSI RTX 3060 Ventus 2X OC 12GB GDDR6 192-BIT GAMING GRAPHICS CARD
Features :
The MSI RTX 3060 Ventus 2X OC 12GB lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
- 1807 MHz / 15 Gbps
- 12GB GDDR6
- DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Overview :
MSI RTX 3060 Ventus 2X OC 12GB brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

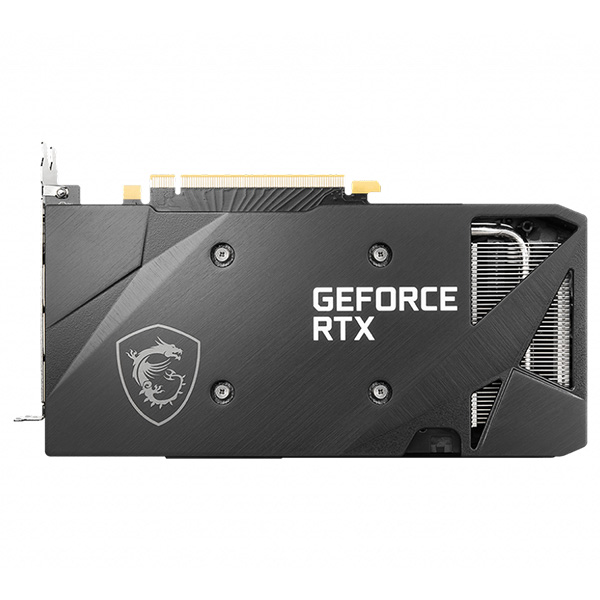

REINFORCING BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
CUTTING EDGE DUAL FAN THERMAL
Torx Fan 3.0
MSI RTX 3060 Ventus 2X OC 12GB has the award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning.
Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
Chillingly Silent
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded.
The fans will automatically start spinning again when the heat is on during gaming.
Core Pipes
Core Pipes are precision-machined for maximum contact over the MSI RTX 3060 Ventus 2X OC 12GB GPU and spread the heat along the full length of the heatsink for optimal cooling.
Thermal Padding.
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TRACES OF BRILLIANCE
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design in MSI RTX 3060 Ventus 2X OC 12GB provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Specification :
| MODEL NAME | MSI RTX 3060 Ventus 2X OC 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3060 |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 3584 Units |
| CORE CLOCKS | Boost: 1807 MHz |
| MEMORY SPEED | 15 Gbps |
| MEMORY | 12GB GDDR6 |
| MEMORY BUS | 192-bit |

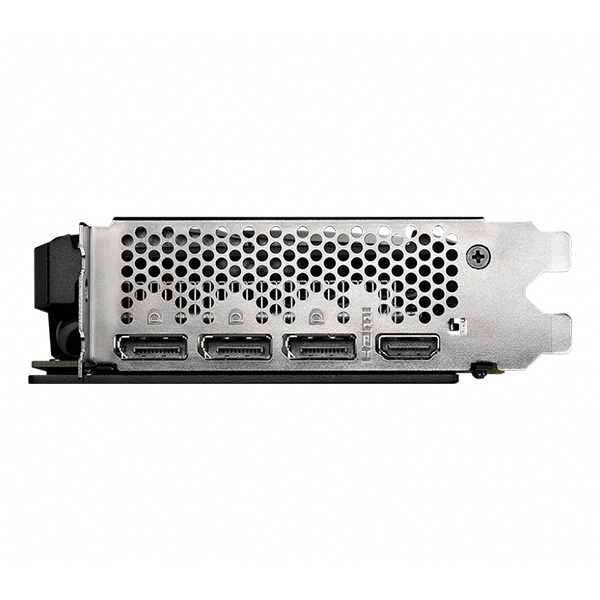

| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 170W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 235 x 124 x 42 mm |
| WEIGHT (CARD / PACKAGE) | 675 g / 1030 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | Y |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
