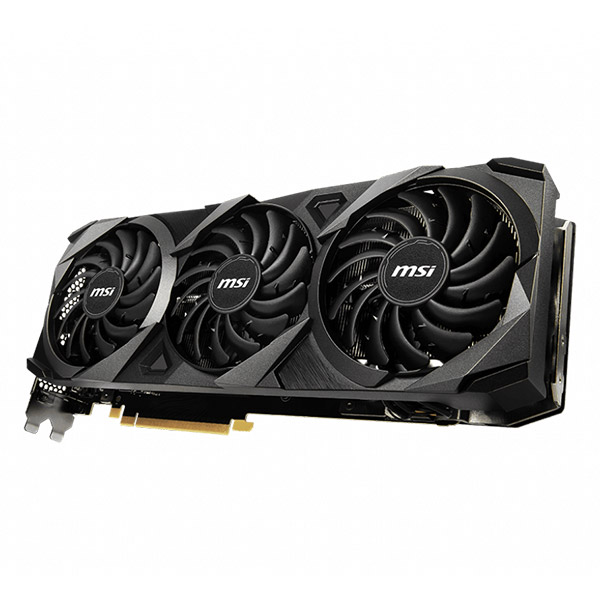

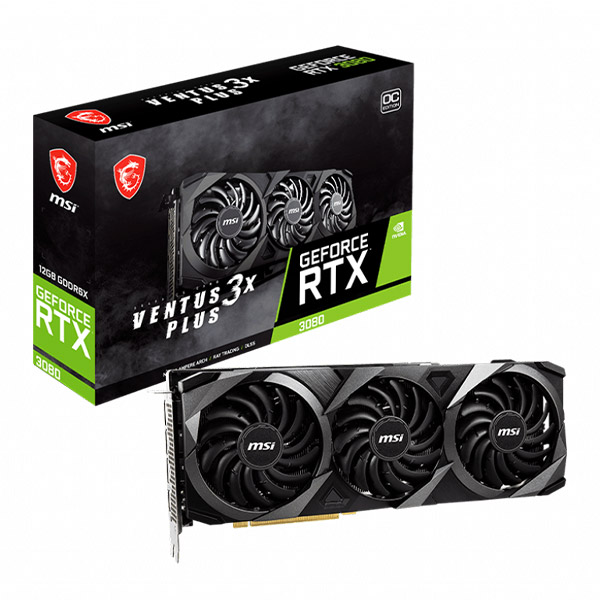

MSI RTX 3080 Ventus 3X Plus OC 12GB LHR GDDR6X 384-Bit Gaming Graphics Card
Features :
The MSI RTX 3080 Ventus 3X Plus OC 12GB LHR delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.
Core / Memory
- Boost Clock / Memory Speed
1740MHz / 19 Gbps - 12GB GDDR6X

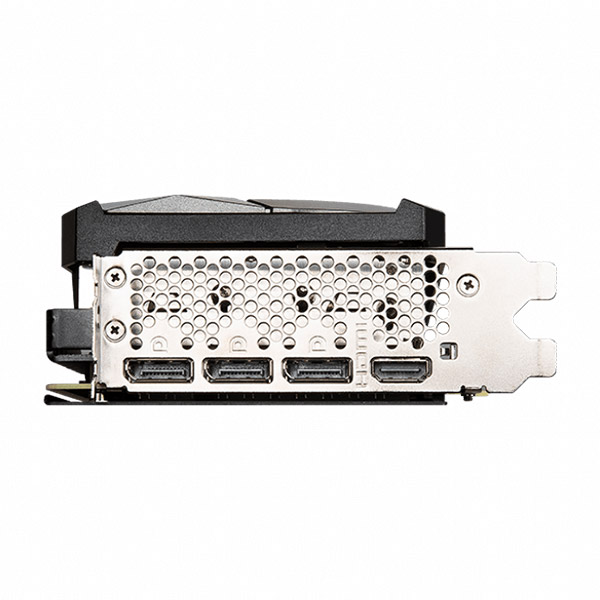

- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

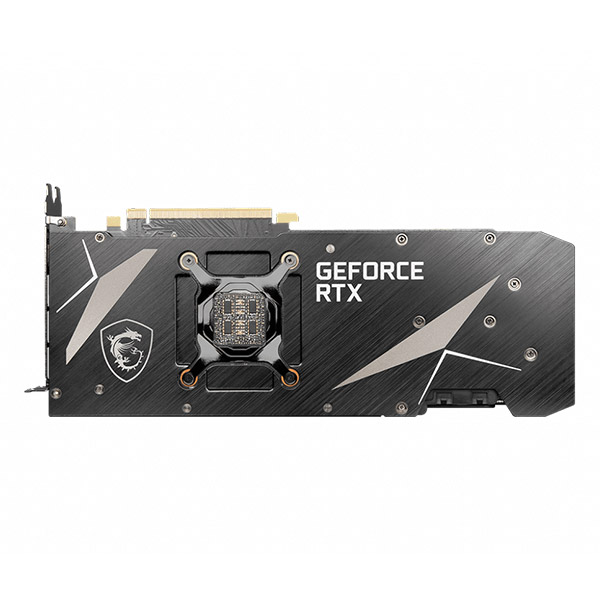

Metal Backplate
- A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- LHR 52 MH/s ETH hash rate (est.)
Overview :
MSI RTX 3080 Ventus 3X Plus OC 12GB LHR brings a performance-focused design that maintains the essentials to accomplish any task at hand.
A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
WE’VE GOT YOUR BACK
A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.

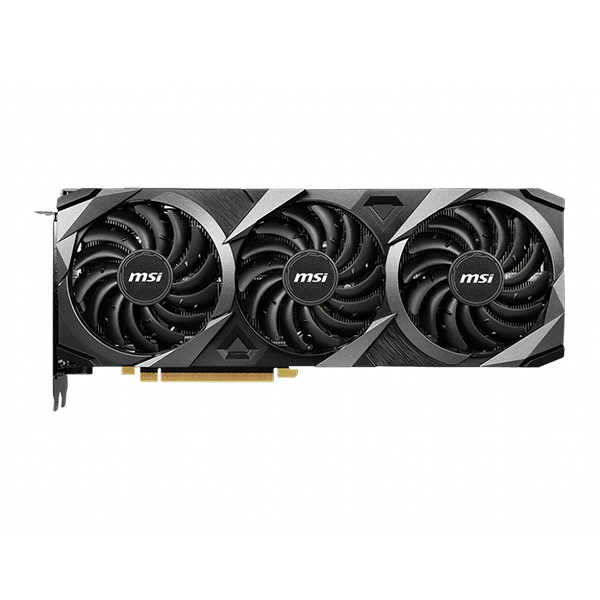

CUTTING EDGE TRIPLE FAN THERMAL
Torx Fan 3.0
MSI RTX 3080 Ventus 3X Plus OC 12GB LHR has the award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning.
Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
Chillingly Silent
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded.
The fans will automatically start spinning again when the heat is on during gaming.
Core Pipes
Core Pipes are precision-machined for maximum contact over the MSI RTX 3080 Ventus 3X Plus OC 12GB LHR GPU and spread the heat along the full length of the heatsink for optimal cooling.
Thermal Padding.
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TRACES OF BRILLIANCE
BUILT STRONG
Specially designed Anti-Bending brackets reinforce the card to resist sagging, bending, and twisting.

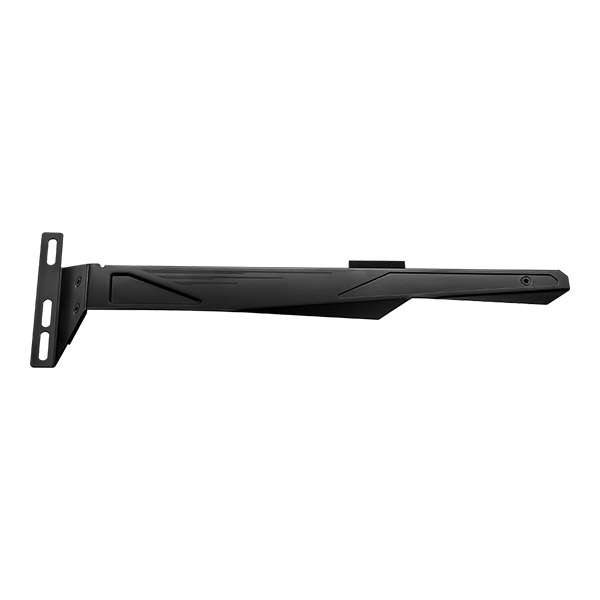

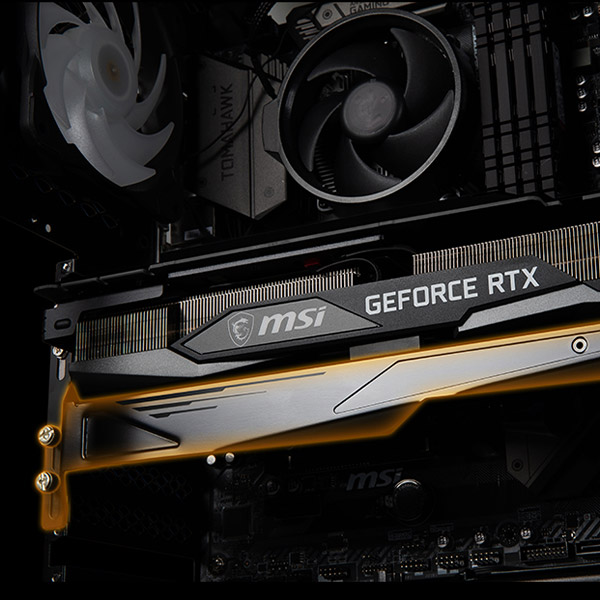

SUPPORT BRACKET
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design in MSI RTX 3080 Ventus 3X Plus OC 12GB LHR provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Specification :
| MODEL NAME | MSI RTX 3080 Ventus 3X Plus OC 12GB LHR |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3080 |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 8960 Units |
| CORE CLOCKS | Boost: 1740MHz |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 384-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 350 W |
| POWER CONNECTORS | 8-pin x 2 |
| RECOMMENDED PSU | 750 W |
| CARD DIMENSION (MM) | 305 x 120 x 57 mm |
| WEIGHT (CARD / PACKAGE) | 1362g / 1986g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
