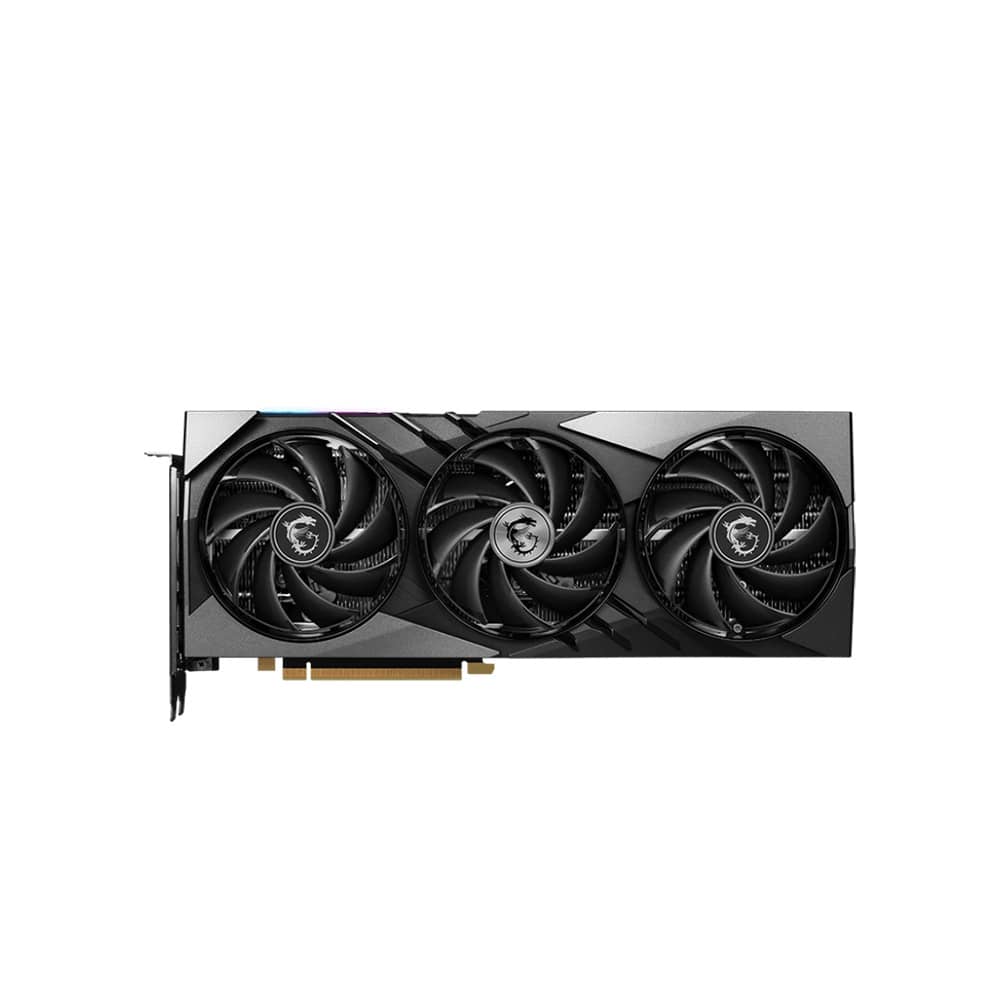

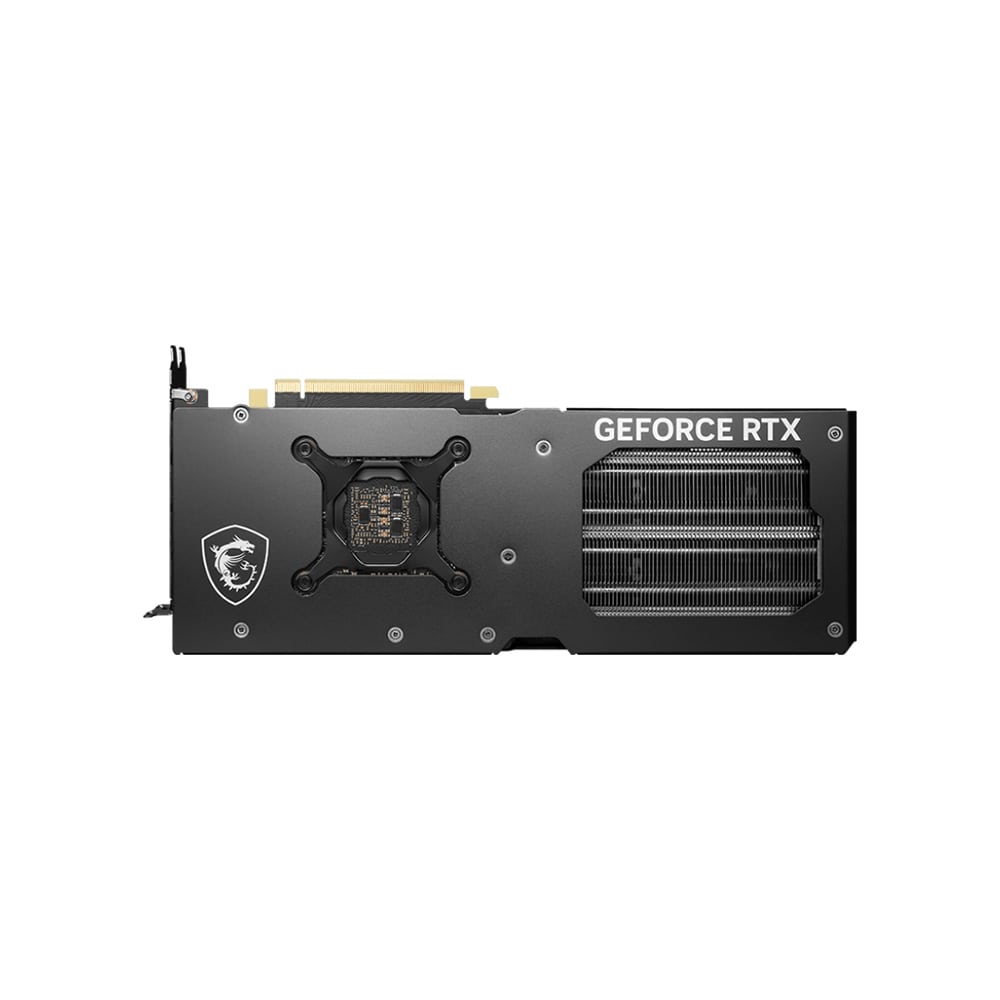

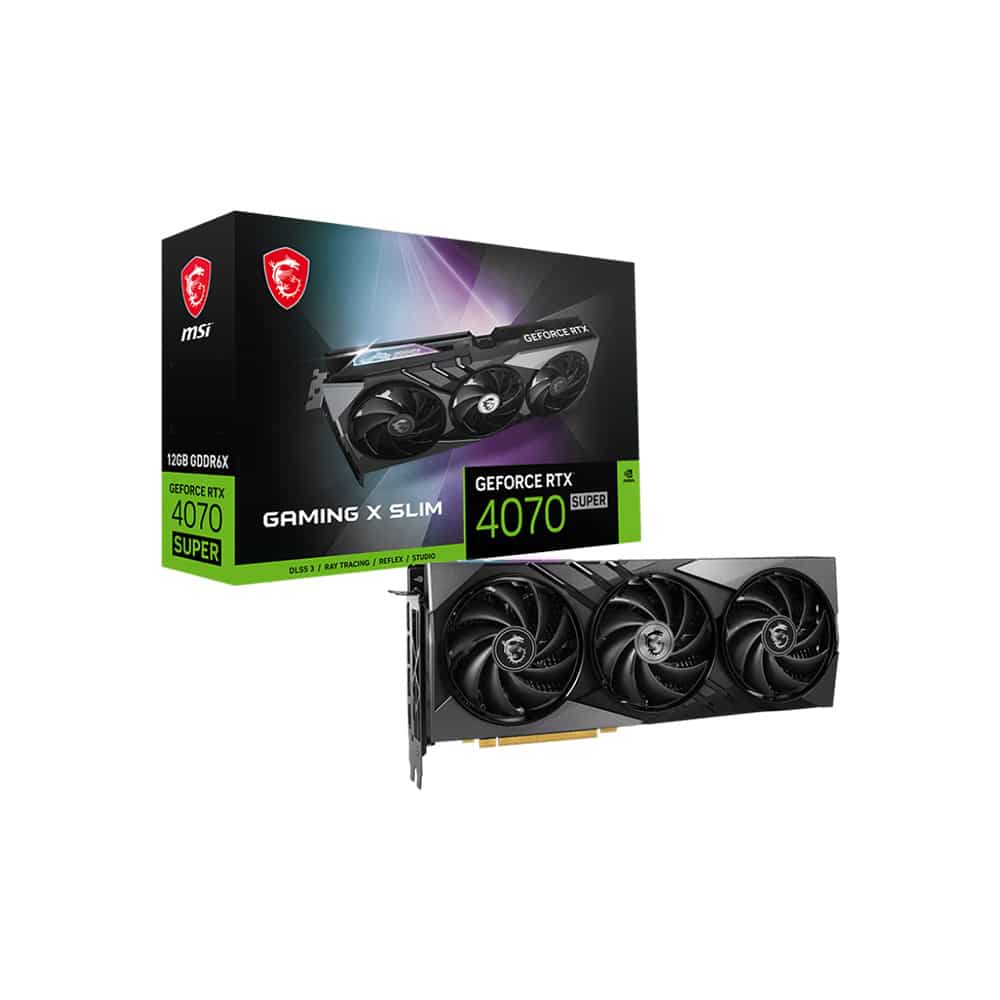

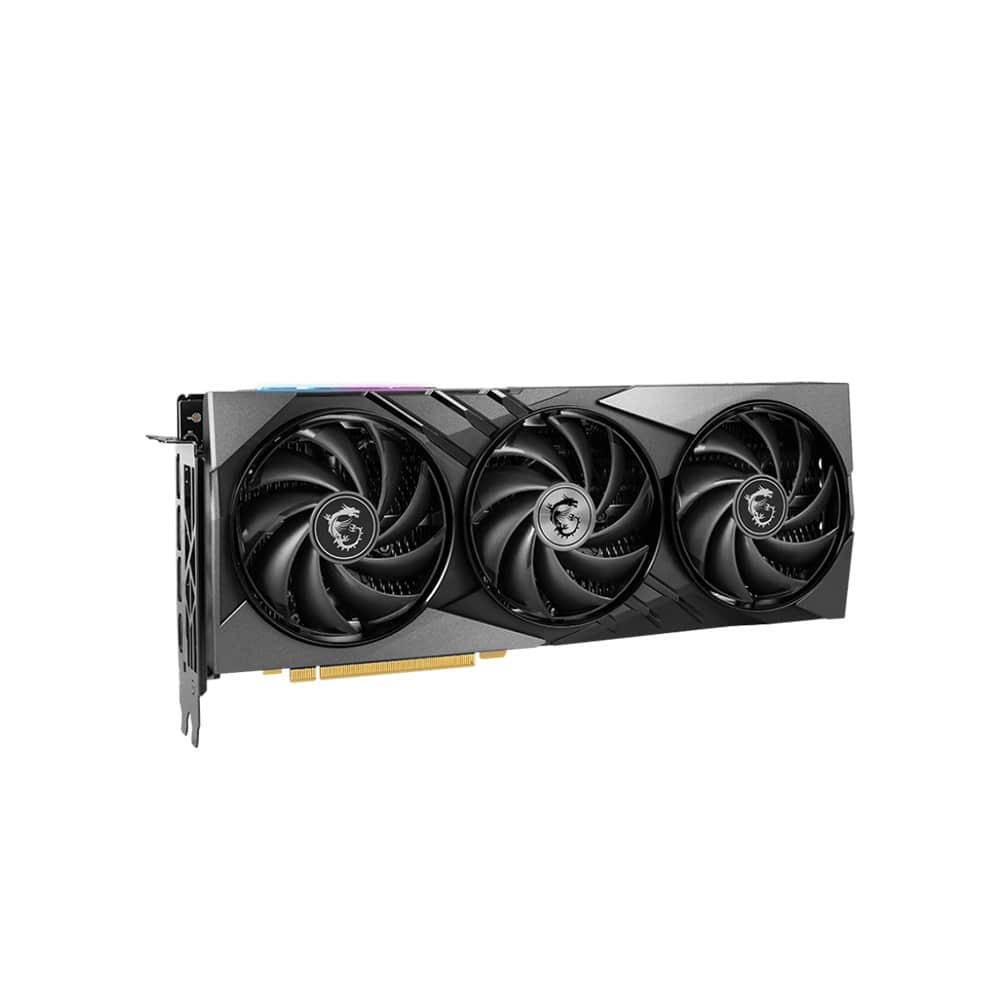

MSI RTX 4070 Super Gaming X Slim 12GB Graphics Card :
Features :
- Get equipped for supercharged gaming and creating with the NVIDIA® MSI RTX 4070 Super Gaming X Slim 12GB. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
- Boost Clock / Memory Speed
- 2640 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes. - Core Pipe: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Afterburner - Take full control with the most recognized and widely used graphics card overclocking software in the world.
Overview :
MSI RTX 4070 Super Gaming X Slim 12GB is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
STRENGTH AND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control with MSI RTX 4070 Super Gaming X Slim 12GB.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the MSI RTX 4070 Super Gaming X Slim 12GB graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.All in MSI RTX 4070 Super Gaming X Slim 12GB.
COPPER BASEPLATE FACING THE HEAT HEAD-ON
Heat from the MSI RTX 4070 Super Gaming X Slim 12GB Graphics Card and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the MSI RTX 4070 Super Gaming X Slim 12GB Graphics Card baseplate and spread the heat along the full length of the heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.All in MSI RTX 4070 Super Gaming X Slim.
Specification :
| MODEL NAME | MSI RTX 4070 Super Gaming X Slim 12GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
| CUDA® CORES | 7168 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |

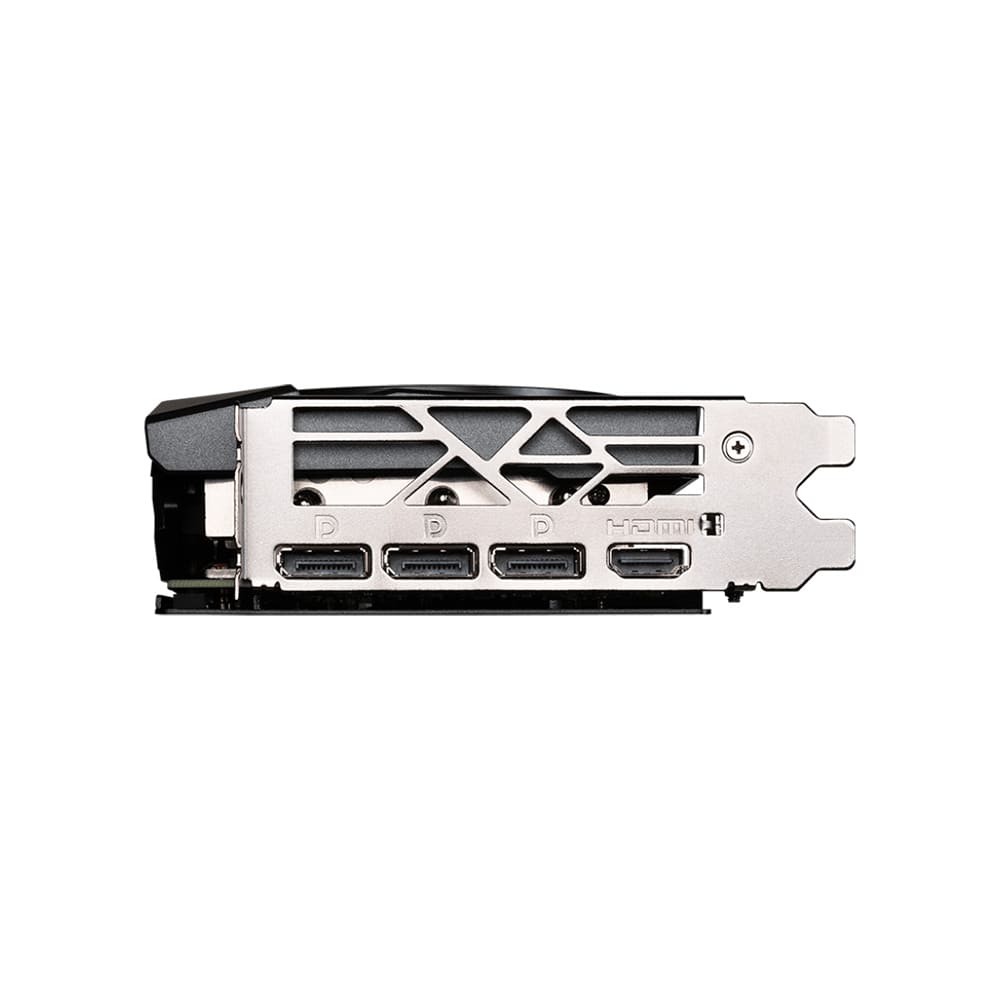

| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 245W |

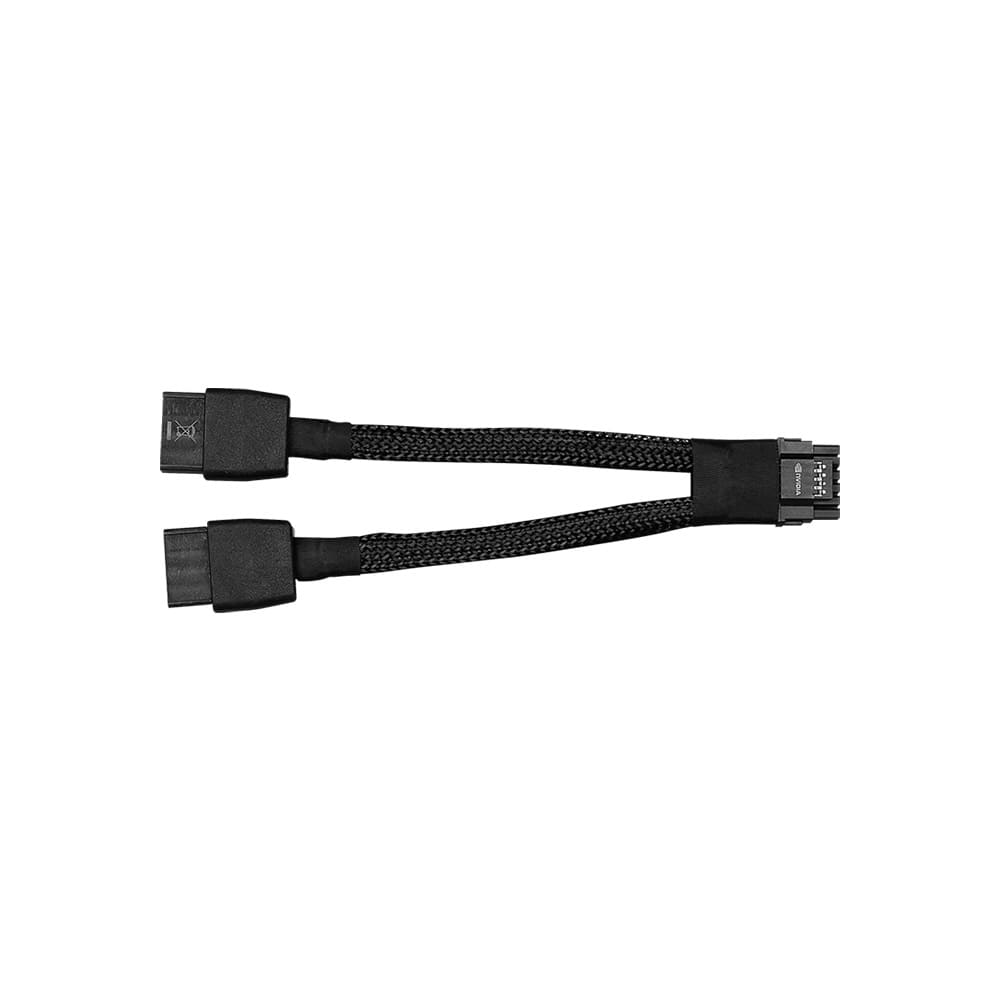

| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 650W |
| CARD DIMENSION (MM) | 307 x 125 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 972g/ 1585g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| Warranty | 3 Years |
