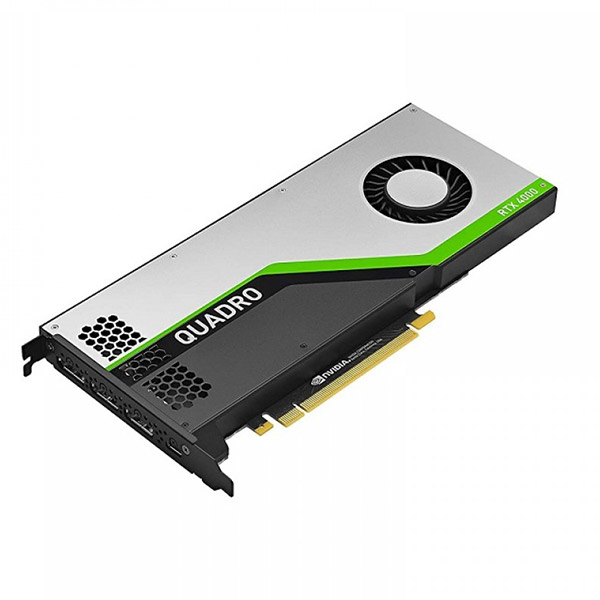

Nvidia Quadro RTX 4000 8GB GDDR6 256-bit Workstation Graphics Card
Experience Real Time Ray Tracing in a Single Slot Form Factor.
Meet the challenge of today’s demanding professional workflows with NVIDIA® Quadro RTX™ 4000, powered by NVIDIA Turing™ architecture and the NVIDIA RTX™ platform.
The Nvidia Quadro RTX 4000 8GB delivers GPU accelerated ray tracing, deep learning, and advanced shading in an accessible single slot form factor.
It gives designers the power to accelerate their creative efforts with faster time to insight and faster time to solution.
Equipped with 2304 CUDA® cores, 288 Tensor Cores, 36 RT cores and 8 GB GDDR6 memory, the Nvidia Quadro RTX 4000 8GB is designed to manage the most intensive AEC, DCC, AI, VR and graphics workloads.
And with the industry’s first implementation of the all-newVirtualLink1 , Nvidia Quadro RTX 4000 8GB provides simplified connectivity to next-generation, high-resolution VR head-mounted displays, letting designers work in the most compelling virtual environments.
Quadro is certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of NVIDIAsupport specialists so you can focus on doing your best work.
Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, do it brilliantly with Quadro performance.
Features
- Three DisplayPort 1.4 Connectors
- VirtualLink Connector
- DisplayPort with Audio
- VGA Support
- 3D Stereo Support with Stereo Connector
- NVIDIA GPUDirect™ Support
- Quadro Sync II3 Compatibility
- NVIDIA nView® Desktop Management Software
- HDCP 2.2 Support
- NVIDIA Mosaic
Specifications :
| GPU Memory | 8 GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Bandwidth | Up to 416 GB/s |
| NVIDIA CUDA Cores | 2304 |
| NVIDIA Tensor Cores | 288 |
| Single-Precision Performance | 7.1 TFLOPS |
| Tensor Performance | 57.0 TFLOPS |
| System Interface | PCI Express 3.0 x16 |
| Power Consumption | Total board power: 160 W Total graphics power: 125 W |
| Thermal Solution | Active |
| Form Factor | 4.4” H x 9.5” L, Single Slot |

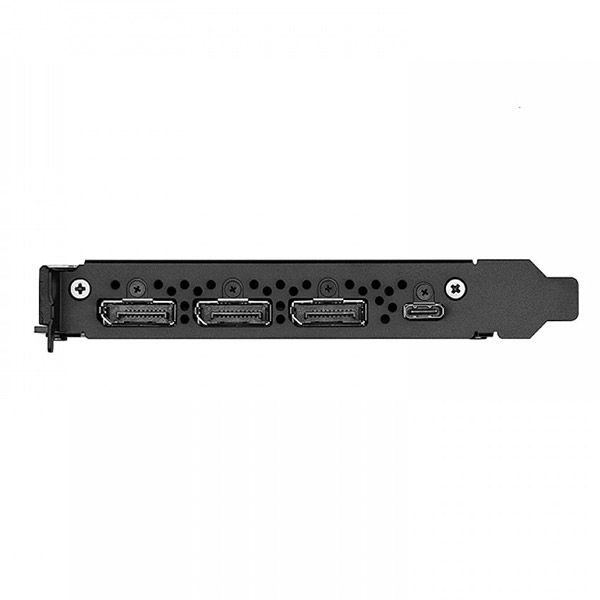

| Display Connectors | 3xDP 1.4, 1x USB-C |
| Max Simultaneous Displays | 4x 3840×2160 @ 120 Hz 4x 5120×2880 @ 60 Hz 2x 7680×4320 @ 60 Hz |
| VR Ready | Yes |
| Graphics APIs | Shader Model 5.15 OpenGL 4.66 DirectX 12.05 Vulkan 1.16 |
| Compute APIs | CUDA, DirectCompute, OpenCL™ |
| Warranty | 3 Year |
