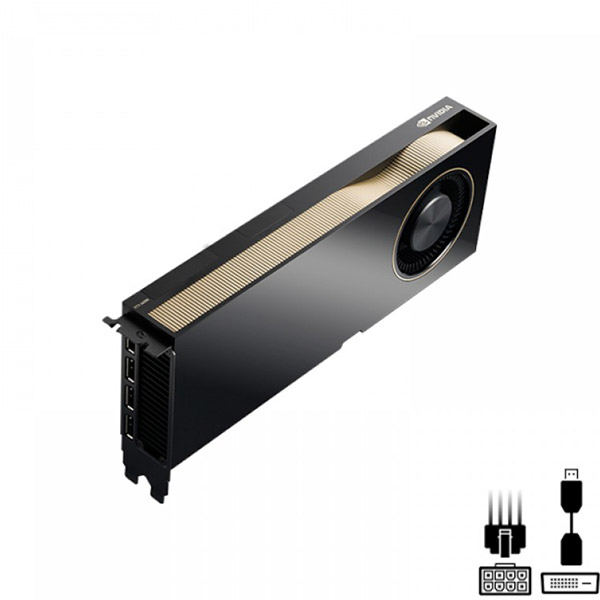

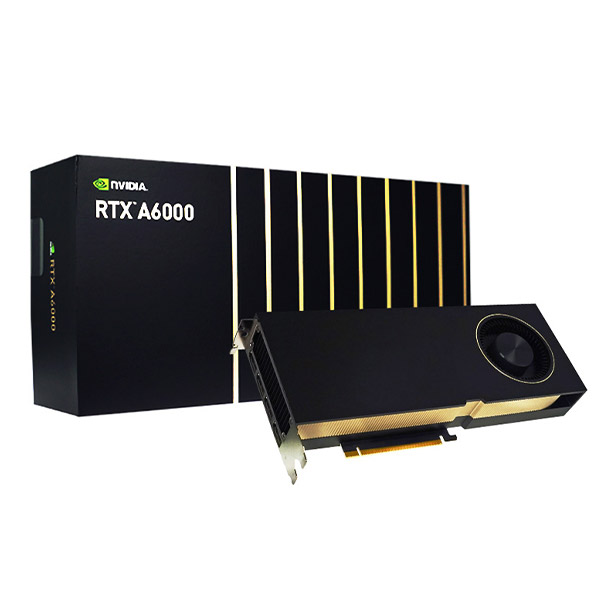

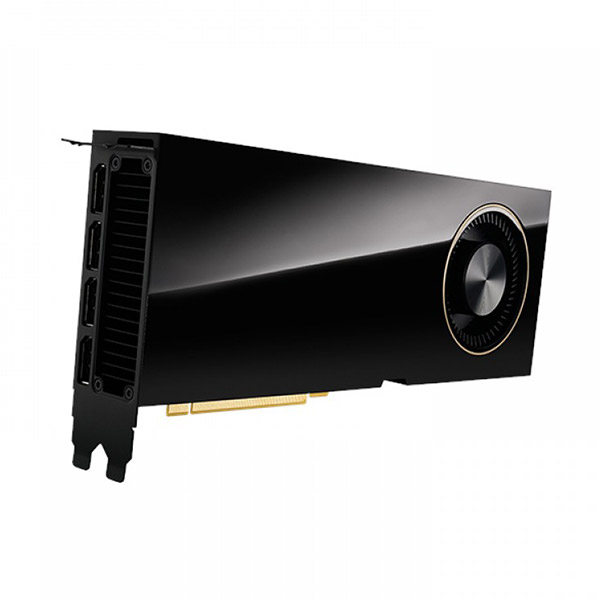

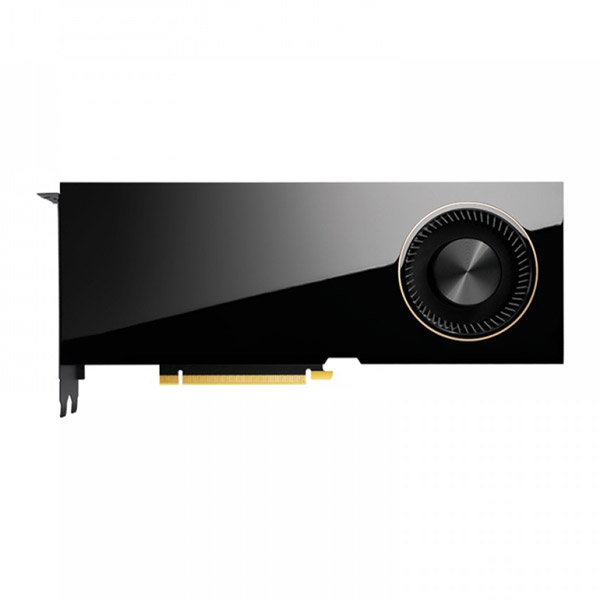

Nvidia Quadro RTX A6000 48GB GDDR6 384-bit Workstation Graphics Card
Amplified Performance for Professionals
The Nvidia Quadro RTX A6000 48GB, built on the NVIDIA Ampere architecture, delivers everything designers, engineers, scientists, and artists need to meet the most graphics and compute-intensive workflows.
The Nvidia Quadro RTX A6000 48GB is equipped with the latest generation RT Cores, Tensor Cores, and CUDA® cores for unprecedented rendering, AI, graphics, and compute performance.
Certified with a broad range of professional applications, tested by leading independent software vendors (ISVs) and workstation manufacturers, and backed by a global team of support specialists, Nvidia Quadro RTX A6000 48GB is the visual computing solution of choice for demanding enterprise deployments.
EXCEPTIONAL PERFORMANCE BY DESIGN
NVIDIA Ampere Architecture CUDA® Cores
Double-speed processing for single-precision floating point (FP32) operations and improved power efficiency provide significant performance improvements for graphics and simulation workflows, such as complex 3D computer-aided design (CAD) and computer-aided engineering (CAE), on the desktop.
Second-Generation RT Cores
With up to 2X the throughput over the previous generation and the ability to concurrently run ray tracing with either shading or denoising capabilities, second-generation RT Cores deliver massive speedups for workloads like photorealistic rendering of movie content, architectural design evaluations, and virtual prototyping of product designs. This technology also speeds up the rendering of ray-traced motion blur for faster results with greater visual accuracy.
Third-Generation Tensor Cores
New Tensor Float 32 (TF32) precision provides up to 5X the training throughput over the previous generation to accelerate AI and data science model training without requiring any code changes.
Hardware support for structural sparsity doubles the throughput for inferencing. Tensor Cores also bring AI to graphics with capabilities like DLSS, AI denoising, and enhanced editing for select applications.
Third-Generation NVIDIA NVLink®
Increased GPU-to-GPU interconnect bandwidth provides a single scalable memory to accelerate graphics and compute workloads and tackle larger datasets.
Nvidia Quadro RTX A6000 48GB Gigabytes (GB) of GPU Memory
Ultra-fast GDDR6 memory, scalable up to 96 GB with NVLink, gives data scientists, engineers, and creative professionals the large memory necessary to work with massive datasets and workloads like data science and simulation.
Virtualization-Ready
Support for NVIDIA virtual GPU (vGPU) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances enabling remote users, to share resources to drive high-end design, AI, and compute workloads.*
PCI Express Gen 4
Support for PCI Express Gen 4 provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.
Power Efficiency
Featuring a dual-slot, power efficient design, the Nvidia Quadro RTX A6000 48GB is up to 2X more power efficient than Turing GPUs and crafted to fit into a wide range of workstations from worldwide OEM vendors.
*Virtualization support for the Nvidia Quadro RTX A6000 48GB GPU will be available in an upcoming NVIDIA virtual GPU (vGPU) release.
Features
- PCI Express Gen 4
- Four DisplayPort 1.4a connectors
- AV1 decode support
- DisplayPort with audio
- VGA support
- 3D stereo support with stereo connector
- NVIDIA GPUDirect® for Video support
- NVIDIA virtual GPU (vGPU) software support
- NVIDIA Quadro® Sync II5 compatibility
- NVIDIA Quadro Experience™
- Desktop Management Software
- NVIDIA RTX IO support
- HDCP 2.2 support
- NVIDIA Mosaic technology
Specifications :
| GPU Memory | 48 GB GDDR6 |
| Memory Interface | 384-bit |
| Memory Bandwidth | 768 GB/s |
| Error-correcting code (ECC) | Yes |
| NVIDIA Ampere architecture-based CUDA Cores | 10752 |
| NVIDIA third-generation Tensor Cores | 336 |
| NVIDIA second-generation RT Cores | 84 |
| Single-Precision Performance | 38.7 TFLOPS |
| RT Core Performance | 75.6 TFLOPS |
| Tensor Performance | 309.7 TFLOPS |
| NVIDIA NVLink | Connects two NVIDIA RTX A6000 GPUs |
| NVIDIA NVLink bandwidth | 112.5 GB/s (bidirectional) |
| System Interface | PCI Express 4.0 x16 |
| Power Consumption | Total board power: 300 W |
| Thermal Solution | Active |
| Form Factor | 4.4” H x 10.5” L, dual slot, full height |

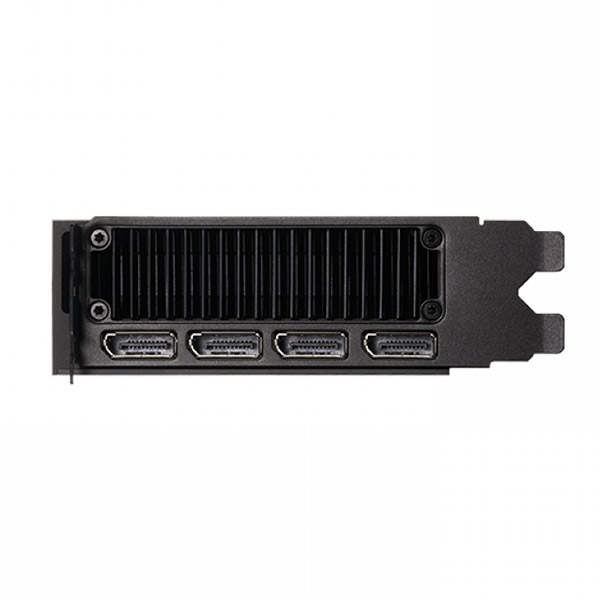

| Display Connectors | 4x DisplayPort 1.4a |
| Max Simultaneous Displays | 4x 4096 x 2160 @ 120 Hz, 4x 5120 x 2880 @ 60 Hz, 2x 7680 x 4320 @ 60 Hz |
| Power connector | 1x 8-pin PCIe |
| Encode/decode engines | 1x encode, 2x decode (+AV1 decode) |
| VR Ready | Yes |
| vGPU software support | NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation, NVIDIA Virtual Compute Server |
| vGPU profiles supported | 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB |
| Graphics APIs | DirectX 12.07, Shader Model 5.17, OpenGL 4.68, Vulkan 1.18 |
| Compute APIs | CUDA, DirectCompute, OpenCL™ |
| Warranty | 3 Year |
