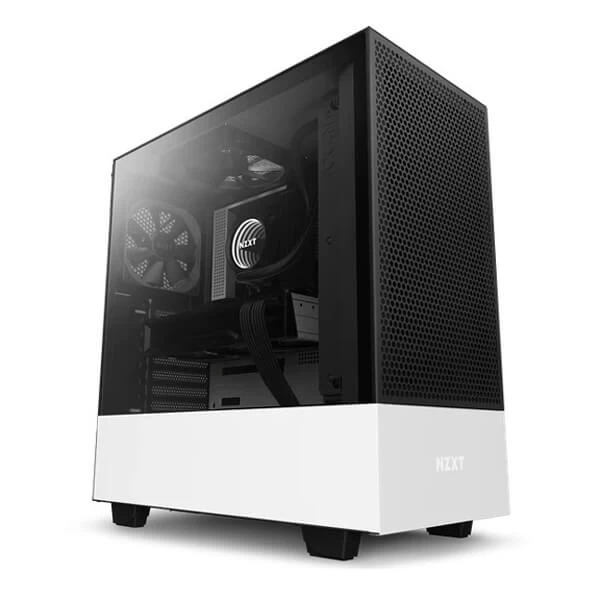

NZXT H510 FLOW MATTE WHITE (ATX) COMPACT MID TOWER CABINET WITH TEMPERED GLASS SIDE PANEL
Features:
NZXT H510 FLOW MATTE WHITE compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The NZXT H510 FLOW MATTE WHITE is easy to build in and offers flexibility for a variety of ATX parts.
- An optimized perforated top panel delivers increased airflow to your system for improved temperatures
- Iconic cable management bar and uninterrupted tempered-glass side panel
- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filters on all air intakes
- Removable bracket designed for radiators up to 280mm **Case version fans and specs vary from retail version
Specifications:
| Model Number | CA-H52FW-01 |
| Key Specs | |
| Motherboard Support | Mini-ITX, MicroATX, ATX |
| Enclosure Type | Compact Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Dimensions | |
| Height | 460 mm / 18.11 inches |
| Weidth | 210 mm / 8.26 inches |
| Depth | 428 mm / 16.85 inches |
| Weight | 6.6 kg / 14.5 lb |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | 165 mm |
| Max GPU Clearance | 360 mm |
| Front Fan & Radiator Clearance | 60 mm |
| Cable Management | 19 – 23 mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | – |
| Drive Bays | |
| 2.5″ | 2 + 1 |
| 3.5″ | 2 + 1 |
| Fan Support | |
| Front | 2 x 120mm / 2 x 140mm |
| Top | 1 x 120mm / 1 x 140mm |
| Rear | 1 x 120mm |
| Filters | All air intake |
| Included Fans | |
| Front | 1 x Aer F 120mm (Case Version) |
| Top | – |
| Rear | 1 x Aer F 120mm (Case Version) |
| Radiator Support | |
| Front | 280mm |
| Rear | 120mm |
| Fan Specs | |
| Model | Aer F 120mm (Case Version) |
| Speed | 1,200 ± 200RPM |
| Airflow | 50.42 CFM |
| Noise | 28 dBA |
| Bearing | Rifle Bearing |
| Fan Connector | 3-pin |
| Warranty | 2 years |
