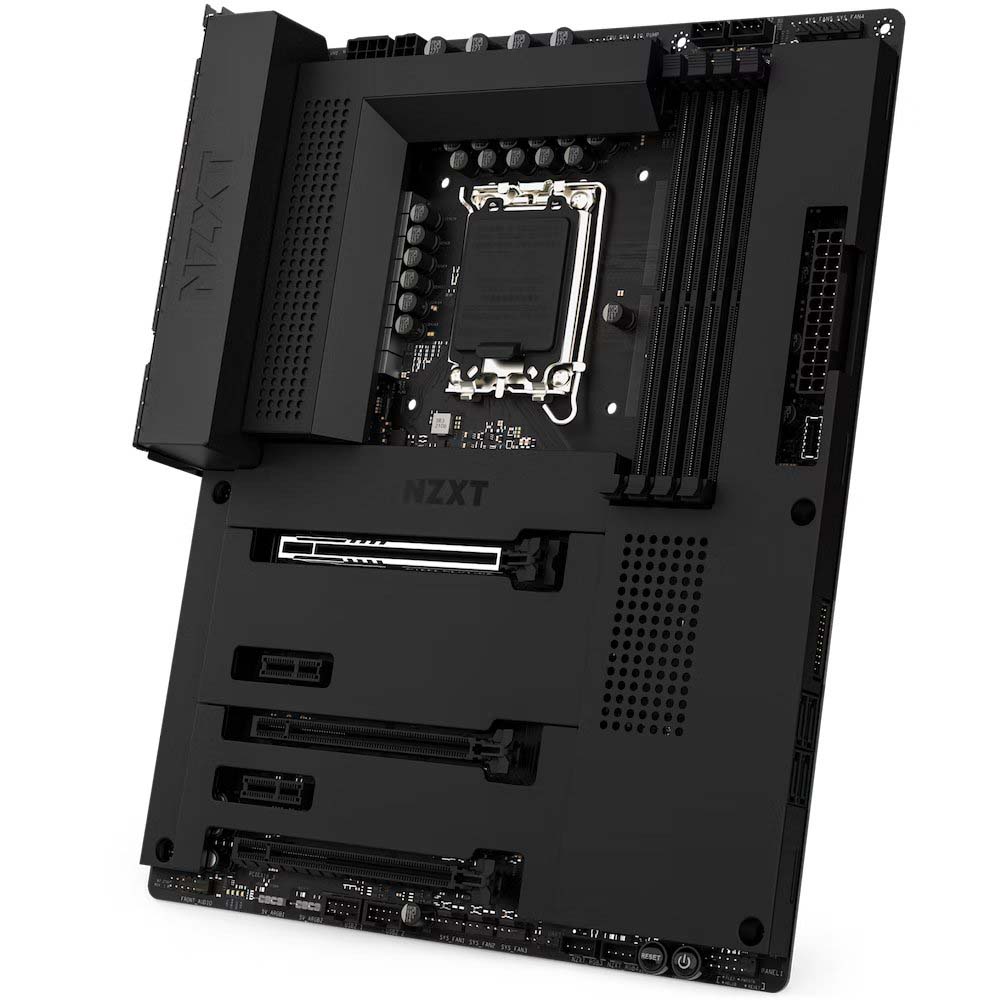

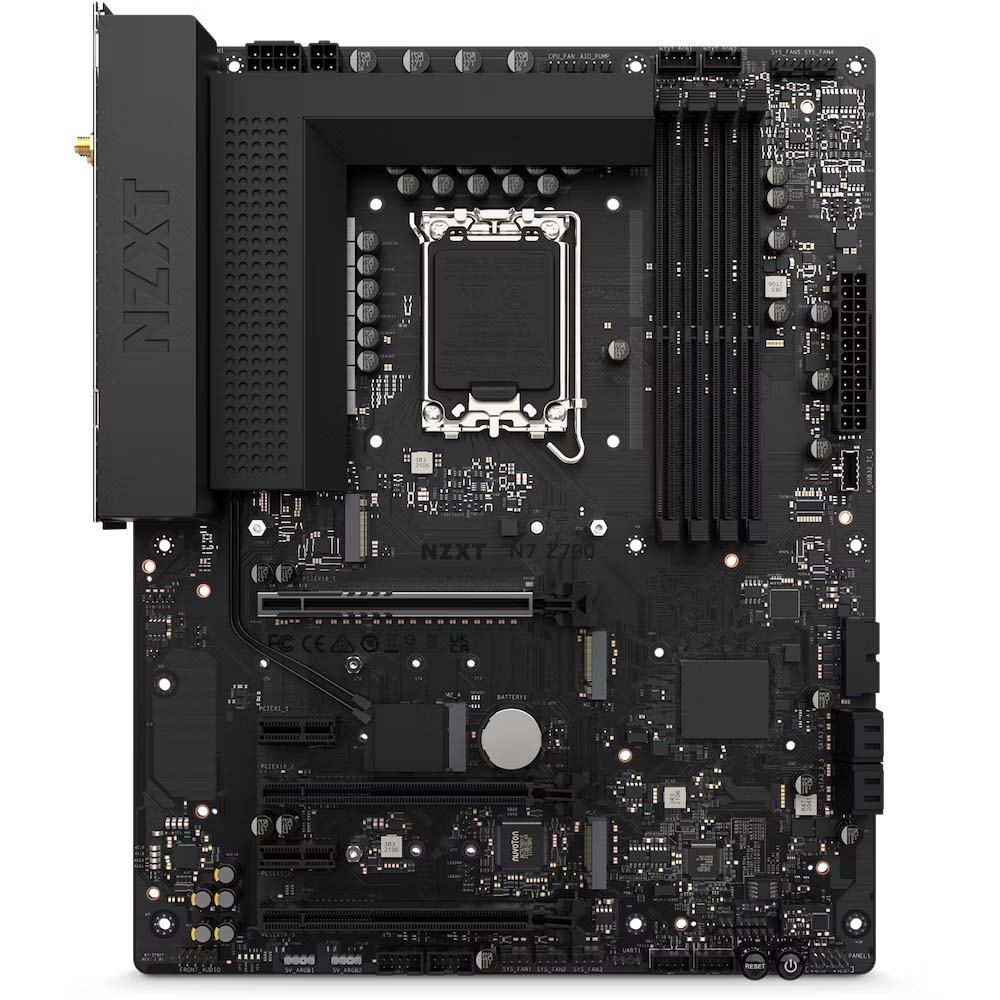

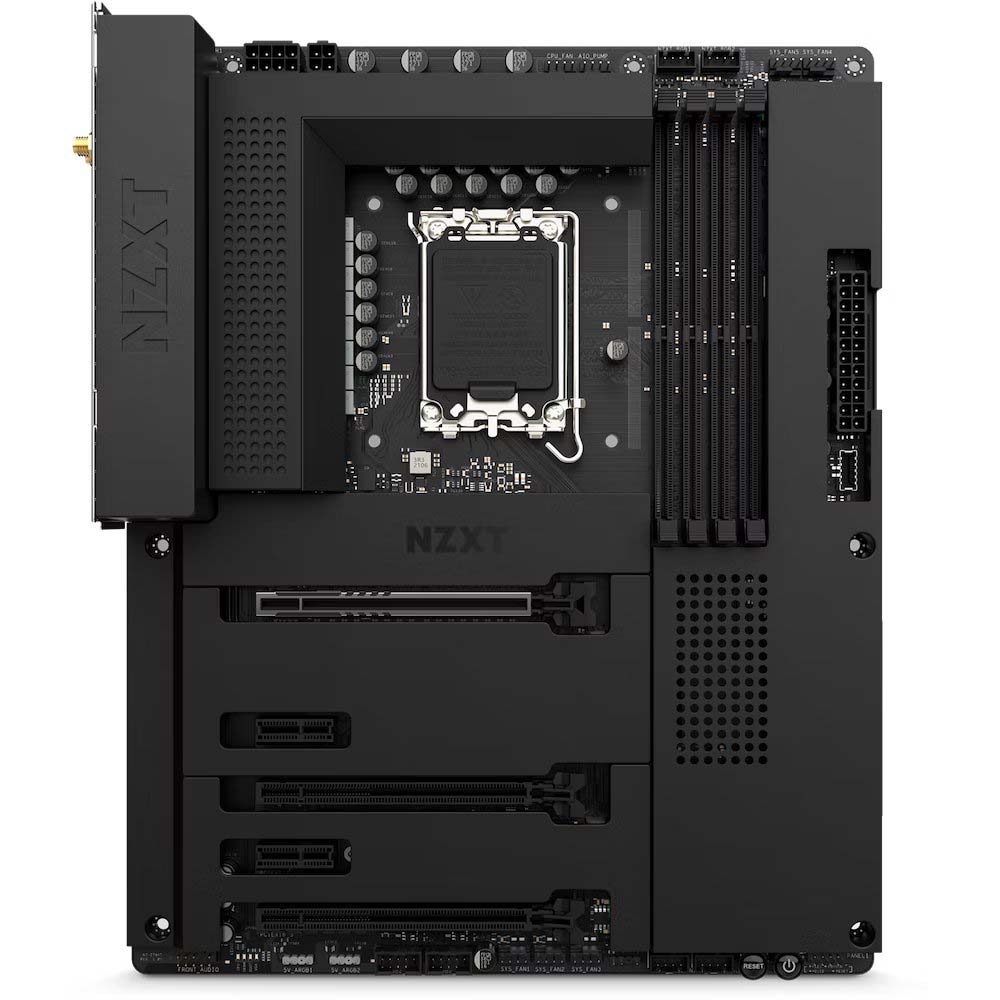

NZXT N7 Z790 Black Intel ATX Motherboard
Features :
- The NZXT N7 Z790 Black Motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.
- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB

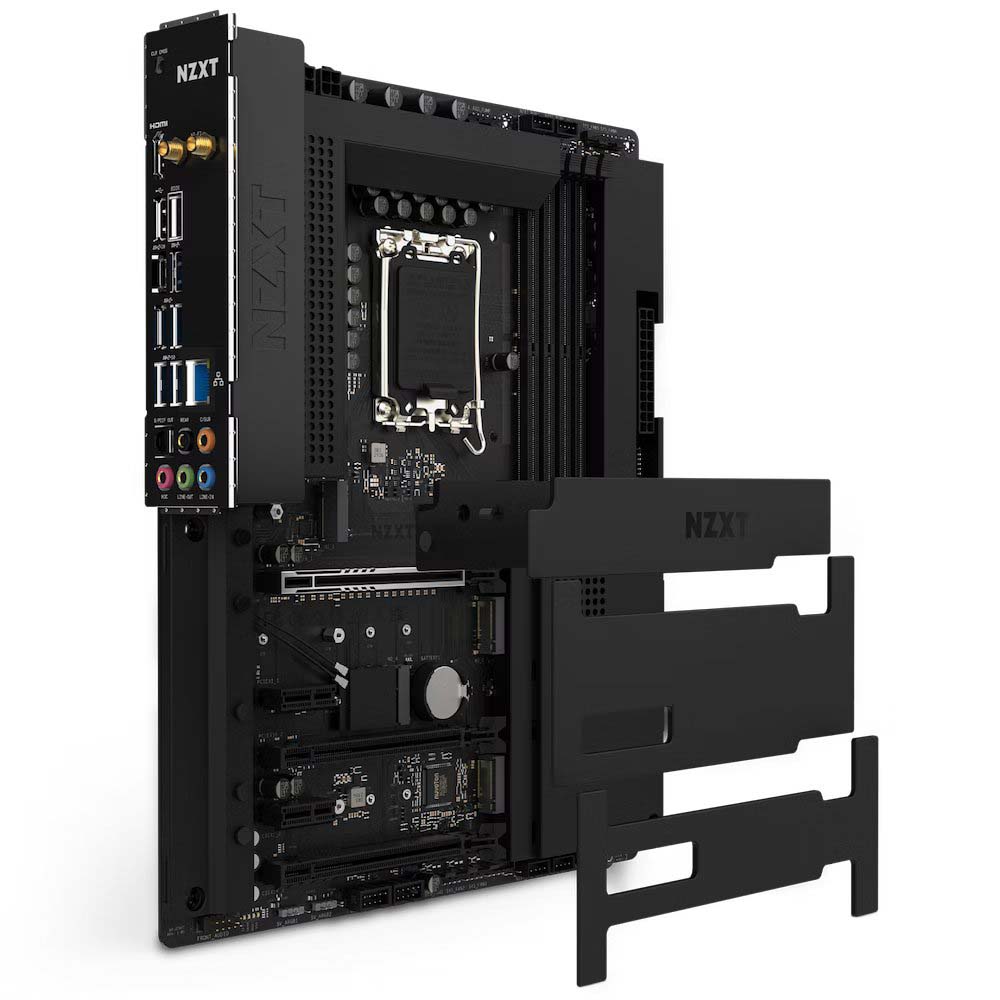

- Full cover in black or white with integrated heat spreader for the top-most M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2 in NZXT N7 Z790 Black
- Three M.2 connectors for storage devices
- NZXT N7 Z790 Black Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
- 8-channel high-definition audio
Specifications :
| CPU | Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list. Intel® Hybrid Technology:Supported Turbo Boost Max 3.0 Technology:Supported Intel® Thermal Velocity Boost (TVB):Supported Intel® Adaptive Boost Technology (ABT):Supported |
| Chipset | Intel®:Z790 |
| Memory | DIMM Slots:4 Max Memory Support:128GB, DDR5 Memory Architecture:Dual-Channel OC Frequency:5000+(O.C.). Please refer to memory QVL. Intel® Extreme Memory Profile (XMP) 3.0:Supported |
| Expansion Slots | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode:2 (Supports NVMe SSD as boot disks) PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*:2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1 |
| Storage | M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode):1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode):1 SATA 6Gb/s ports:4 Intel® Volume Management Device (VMD):Supported NVMe SSD as boot disks:Supported |
| LAN | Realtek®:RTL8125BG 2.5G LAN |
| Wireless | Dual Band Wi-Fi 6E:Supported Bluetooth:V5.2 |
| Audio | Realtek®:ALC1220 Codec |

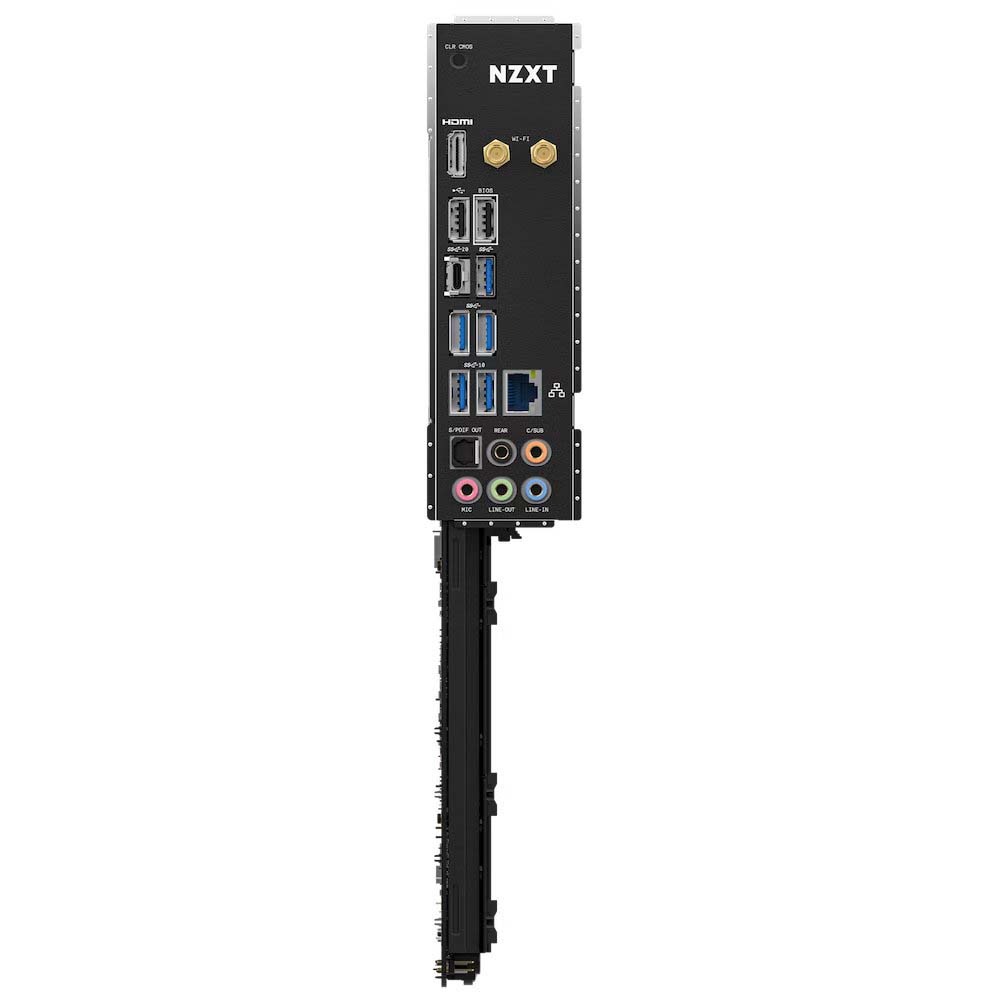

| Rear I/O | Wireless antenna SMA connectors:2 HDMI™ port:1 USB 2.0:2 USB 3.2 Gen 2×2 Type-C port:1 USB 3.2 Gen 2 ports:2 USB 3.2 Gen 1 ports:3 Clear CMOS button:1 LAN (RJ45) port:1 Audio jacks:5 Optical S/PDIF Out port:1 |
| Internal I/O | 24-pin ATX power connector:1 8+4-pin ATX 12V power connector:1 4-pin CPU_FAN connector:1 4-pin AIO_PUMP connector:1 4-pin SYS_FAN connectors:5 NZXT RGB LED connectors:4 5V ARGB LED connector:2 USB 2.0 header (Up to 4 USB 2.0 ports):2 USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1 USB 3.2 Gen2x2 front panel header (For USB Type-C):1 Front panel audio connector:1 Power button:1 Reset button:1 POST LEDs:4 |
| Operating System | Windows® 11/10 64-bit |
| Form Factor | ATX |
| Warranty | 3 Years |
