PowerColor Hellhound AMD RX 6600 8GB Graphics Card:
Overview:
Hellhound: A Cool but Powerful Beast

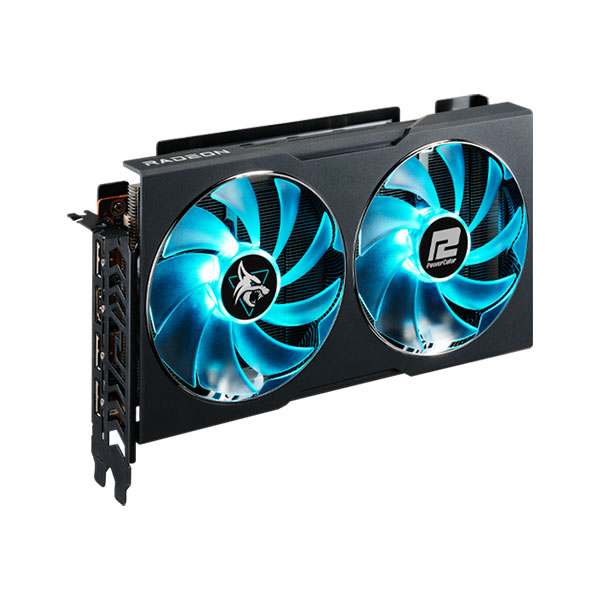

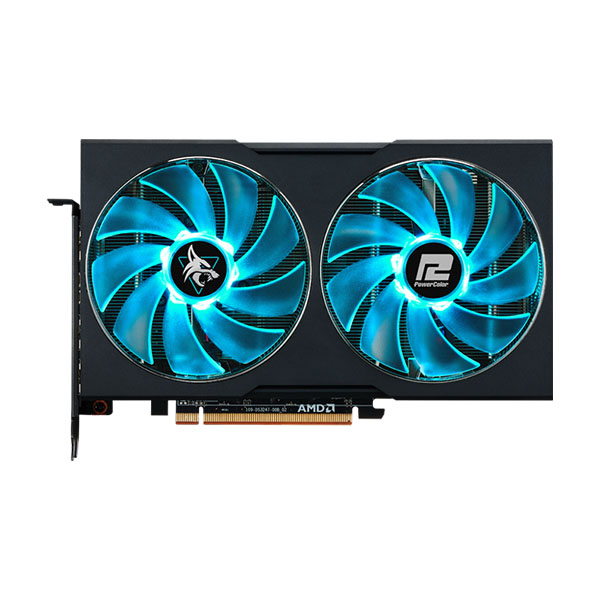

The PowerColor Hellhound Radeon™ RX 6600 is built based on AMD’s latest RDNA2 architecture with enhanced performance and cooling efficiency to empower gamers to vanquish 1080p gaming. Housing two 100mm fans, the shroud is clean and sleekly crafted with silver accent, just like a hound stays calm and low-keyed but always ready to release its power inside. PowerColor Hellhound AMD RX 6600 8GB
The Power of Hellhound

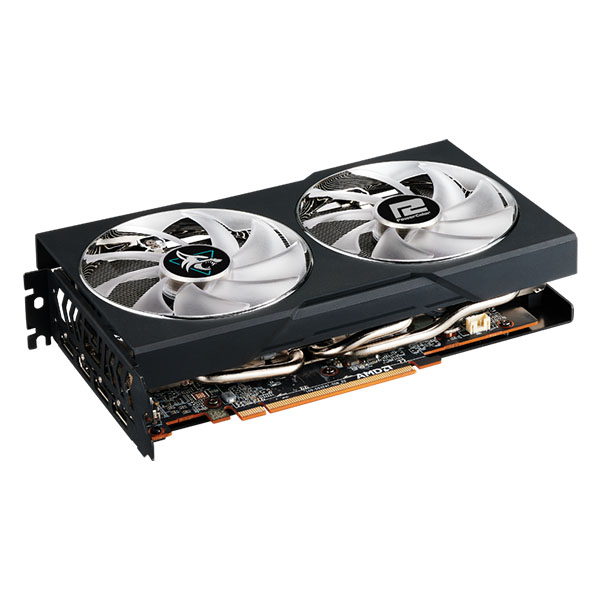

To provide a better thermal solution, PowerColor Hellhound Radeon™ RX 6600 is equipped with a dual fan design (2x 100mm), a cooler with 3X6Φ nickel plated heatpipes, and a smooth nickel-plated copper base that enhances heat dissipation. Besides, it adopts 5+1 phase VRM with DrMOS, high polymer solid capacitors and one 8-pin PCI-E connectors to deliver advanced gaming performance. PowerColor Hellhound AMD RX 6600 8GB
Two-Ball Bearing – 4X greater longevity
The cooling fan utilizes two-ball bearing technology, increasing the longevity of the fans by up to 4 times. PowerColor Hellhound AMD RX 6600 8GB
Mute Fan Technology – 0db –Silent gaming
Mute Fan Technology intelligently turns off the fan below 60℃, providing silent gaming during medium and low load while reducing power consumption. PowerColor Hellhound AMD RX 6600 8GB
Exclusive New Cooling-Fan Design, Advanced Cooling Solution
Compared with previous designs, PowerColor Hellhound RX 6600 graphics card uses an exclusive new cooling-fan design to increase airflow and air pressure by up to 60%, achieving new levels of thermal performance. PowerColor Hellhound AMD RX 6600 8GB
Dual-Fan Cooler, Lower Temperature Better Performance
The Hellhound Radeon™ RX 6600 is equipped with 3X6Φ nickel plated copper heatpipes and an enlarged heatsink surface for providing lower temperatures and better performance. PowerColor Hellhound AMD RX 6600 8GB
Horizontal Aluminum Fin Design
The increased array of horizontal aluminum fins helps heatpipes collect and dissipate heat with maximum efficiency, specifically suited for Radeon™ RX 6600 PowerColor Hellhound AMD RX 6600 8GB
Copper Base Direct Touch
A smooth nickel plated copper base directly contacts the GPU to enhance exceptional heat dissipation efficiency, and keeps the card in the optimum cooling condition.
Platinum Power Kit—DrMOS
‧ Digital controller and high polymer solid capacitor for improved reliability
‧ Superior power efficiency
‧ Significantly low power loss
‧ Better thermal protection
‧ A 5+1 phase VRM guarantees better overclocking and stability
Stunning Hellhound Brighten in the Dark
Hellhound features blue LED lighting on the shroud and backplate to lighten up your case. Want to keep a low profile for a while? Just flip the switch to turn the fan LED off.
Reinforced Back Plate
The metal back plate is extremely rigid to strengthen the card and prevent PCB bending, while the hollow area on it improves airflow.
Specifications:
| Graphics Engine | AMD Radeon™ RX 6600 |
| Bus Standard | PCI® Express 4.0 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | Boost Clock: 2491 MHZ |
| Game Clock: 2044 MHZ | |
| Stream Processors | 1792 |
| Memory Clock | 14 Gbps |
| Memory Bus | 128-bit |
| Resolution | Digital Max Resolution: 7680×4320 |

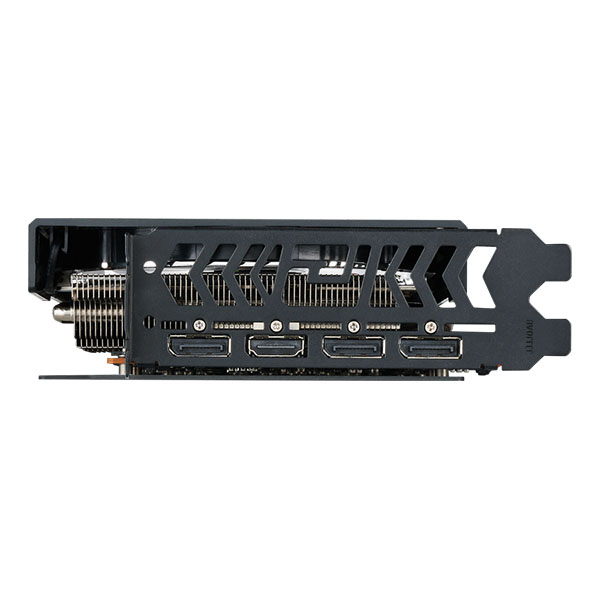

| Interface | 1 x HDMI |
| 3 x DisplayPort | |
| HDCP Support | Yes |
| Multi-view | 4 |
| Recommended PSU | 500 W |
| Power Connector | 1 x 8 Pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 220 mm x 132 mm x 45 mm |
| Warranty | 3 Years |
