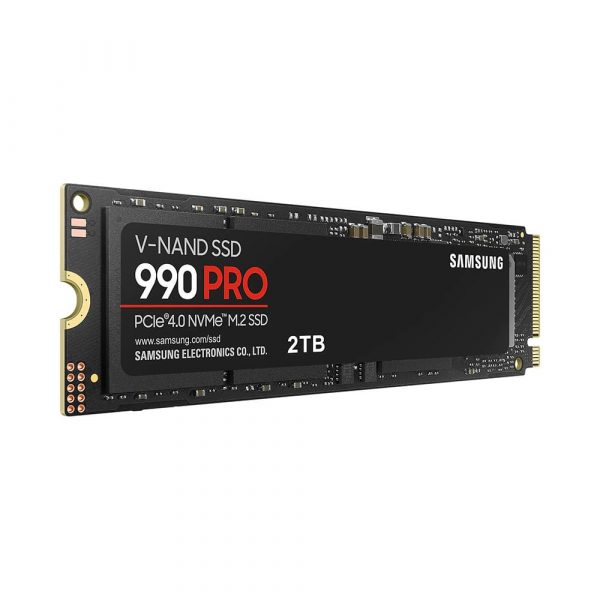

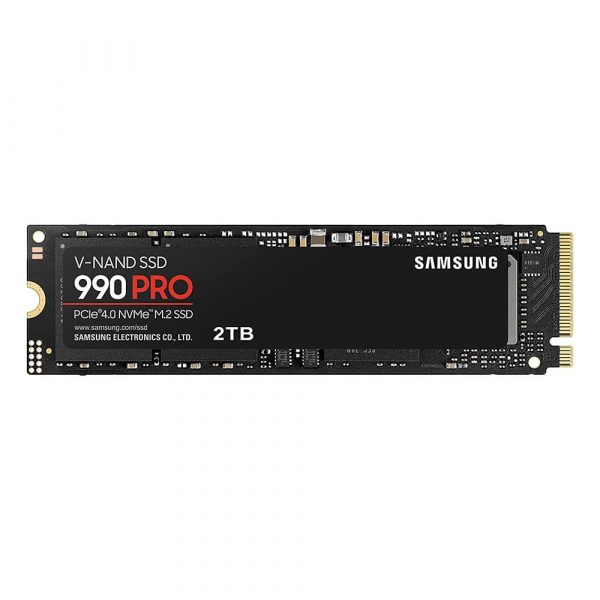

Samsung 990 Pro 2TB Gen4 M.2 NVMe Internal SSD

Samsung 990 Pro 2TB Gen4 M.2 NVMe Internal SSD :

Overview :

The Ultimate SSD

Reach max performance of PCIe® 4.0.
Experience longer-lasting, opponent-blasting speed.
The in-house controller’s smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance,
to always keep you at the top of your game.

PCIe 4.0 speed maximized

Huge speed boost.
40% and 55% faster random read/write speeds than 980 PRO – up to 1400K/1550K IOPS,
while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe® 4.0.
Fly high in gaming, video and 3D editing, data analysis, and more.

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration, and other factors. For detailed information, please contact your local service center

* Test system configuration: AMD Ryzen 7 5800X 8-Core Processor [email protected], DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS – Windows 10 Pro 64bit, Chipset – ASRock-X570 Taichi

* To maximize the performance of the Samsung 990 Pro 2TB Gen4, please check whether your system supports PCIe®4.0 at the Intel or AMD website.

Breakthrough power efficiency

More power-efficient performance.
Higher performance usually consumes more power.
But, Samsung 990 Pro 1TB Gen4 uses less power with over 50% improved performance per Watt over 980 PRO.
This low-power design makes max PCIe®4.0 performance possible with optimal power efficiency.

* Samsung 990 Pro Gen4 Sequential Read/Write – 1,129/877 MB/Watt, 990 PRO Sequential Read/Write – 1380/1319 MB/Watt based on the internal test result of the 1TB capacity model.

Smart thermal solution

Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.

The champion maker

The best gameplay experience.
A more than 55% improvement in random performance enables faster loads
for ultimate gaming realism on PS5 and DirectStorage PC games.

* DirectStorage technology from Microsoft loads games faster than before by leveraging the multiple GB/sec speed of modern NVMe SSDs.

* Results are based on a comparison with Samsung 990 Pro 2TB Gen4

Samsung Magician software

Unlock the full power of Samsung 990 Pro 2TB Gen4.
Samsung Magician software’s user-friendly suite of optimization tools always gets you the best SSD performance.
Protect valuable data, monitor drive health, and get important updates. Your personal SSD toolkit..

World’s No.1 Flash Memory

Experience superior performance and reliability you only get from the world’s No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung’s world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications :

General Feature

• Application : Client PCs, Game Consoles
• Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD) : 80 x 22 x 2.3 mm
• Weight : Max 9.0g Weight
• Storage Memory : Samsung V-NAND 3-bit MLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 2GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32) : Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32) : Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1) : Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level) : *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) : Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 – 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)
