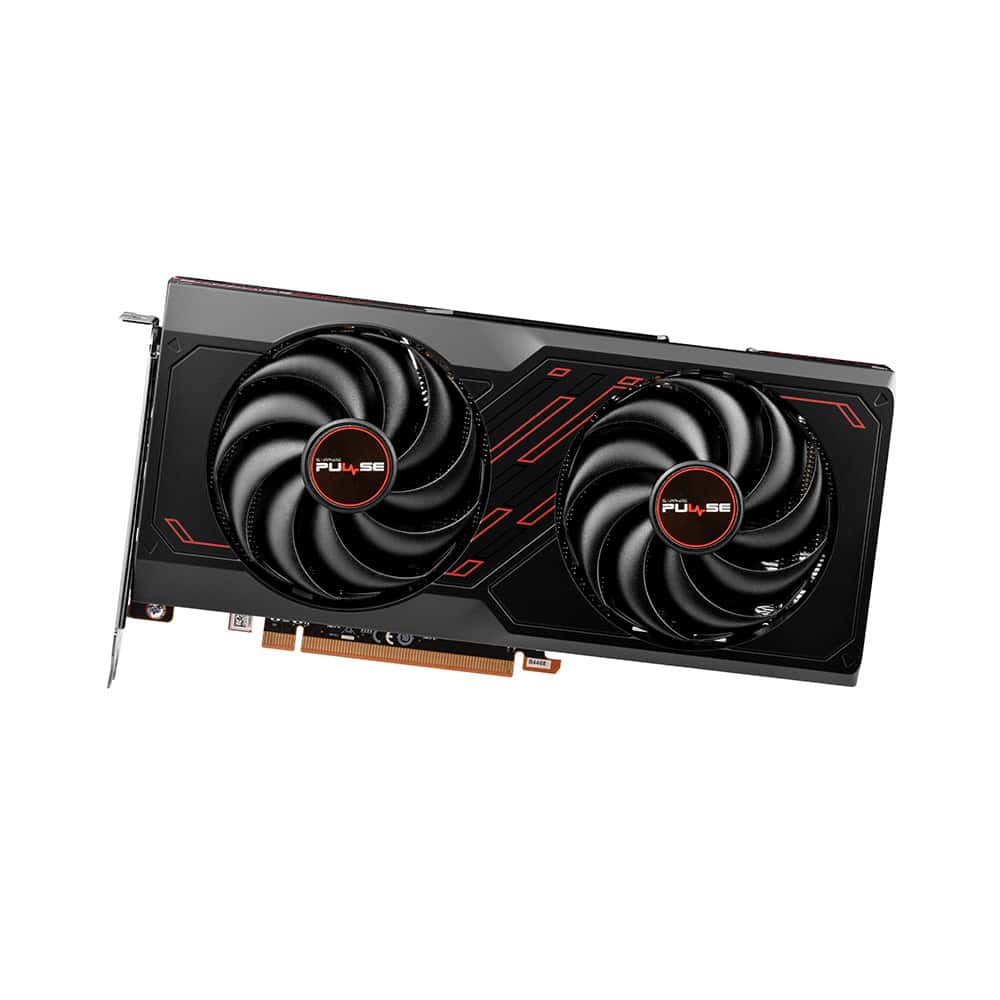

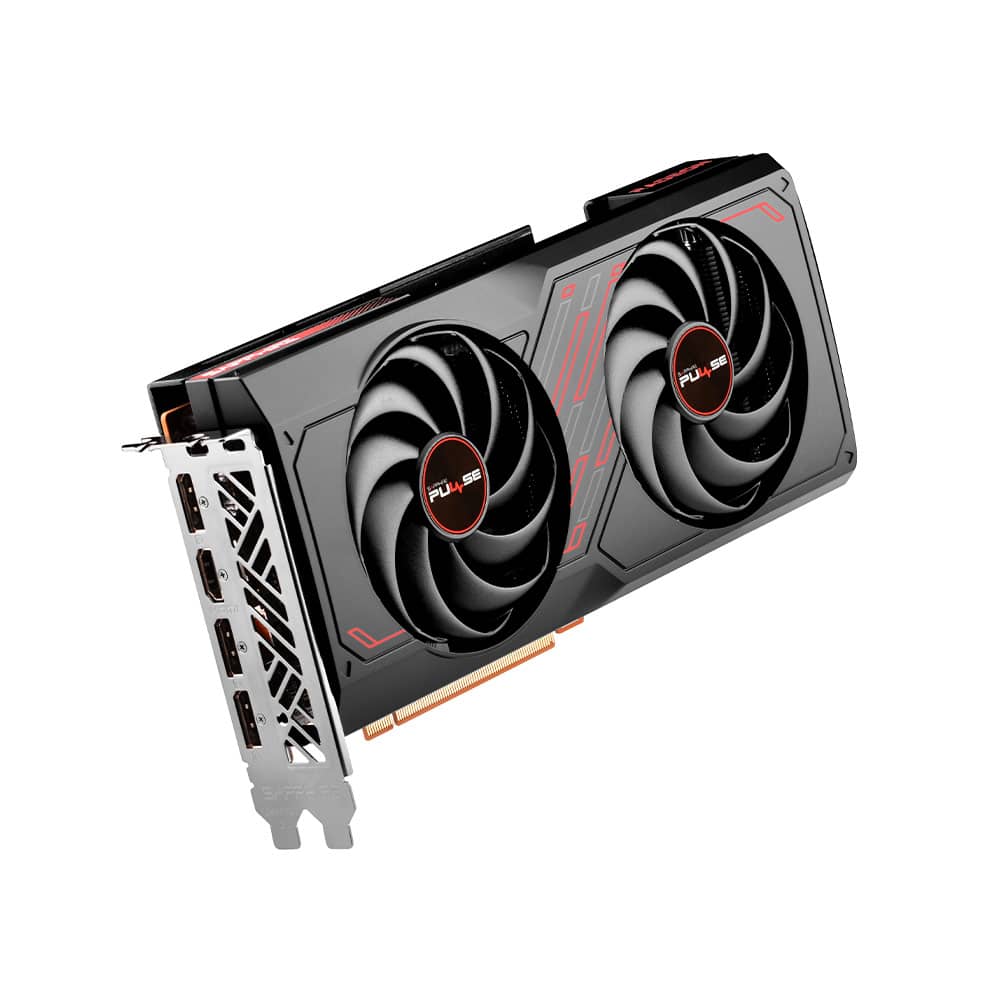

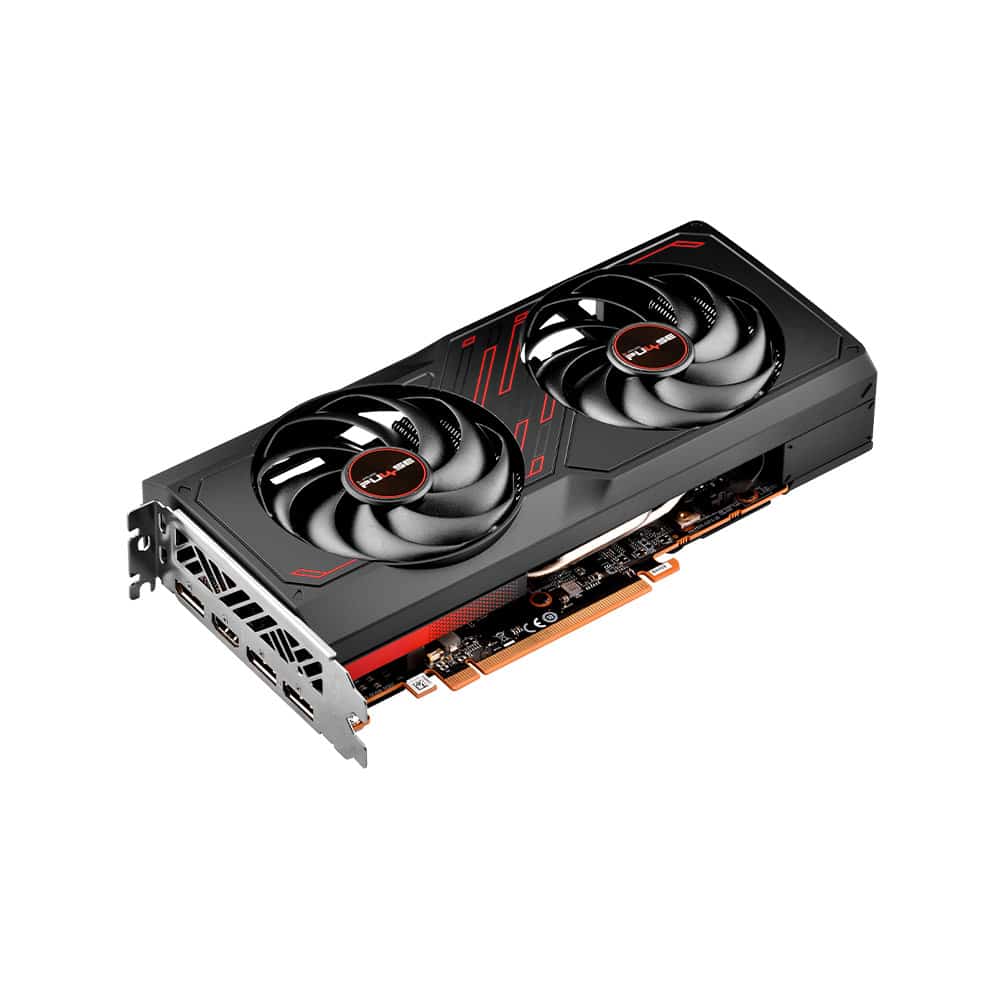

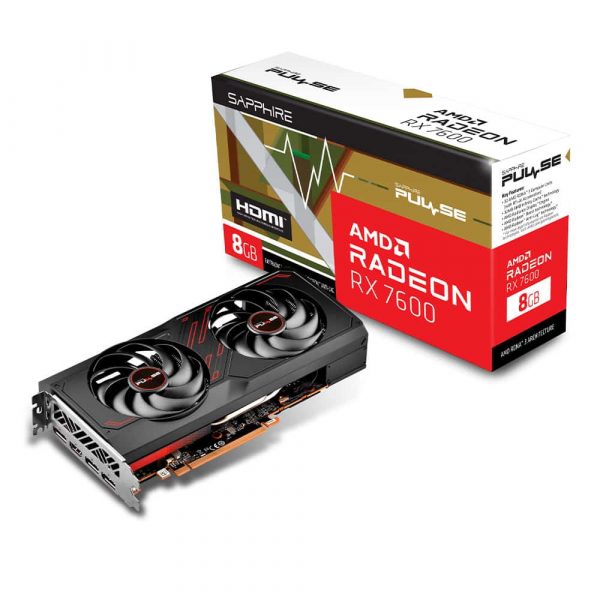

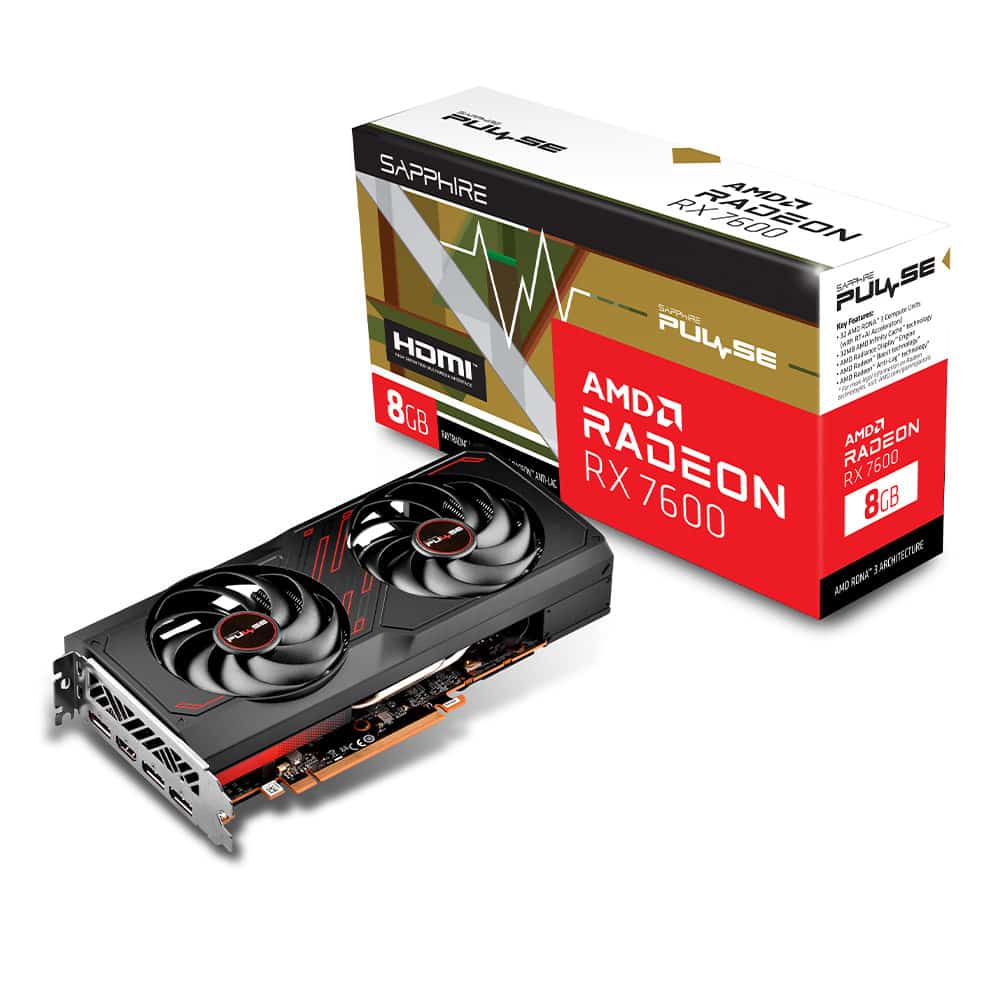

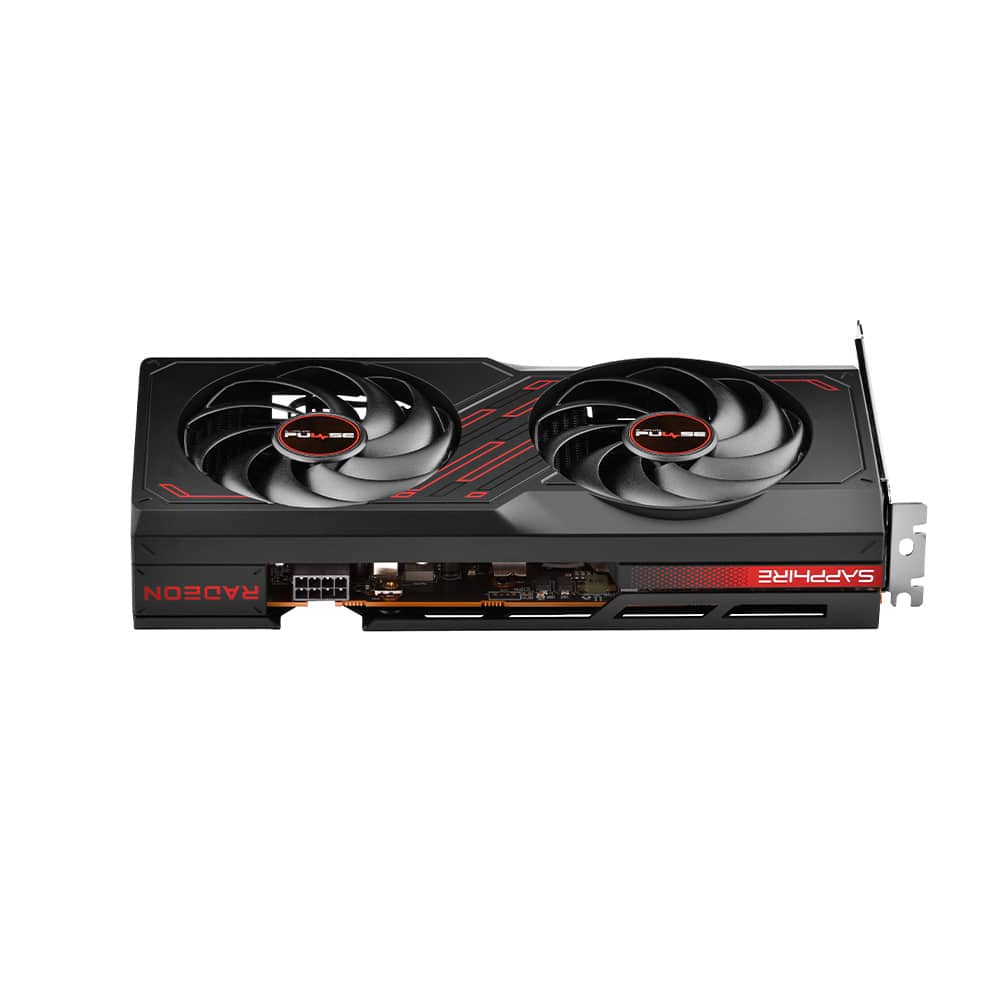

Sapphire Pulse AMD Radeon RX 7600 8GB Graphics Card:
Features :
- GPU: Boost Clock: Up to 2755 MHz
- GPU: Game Clock: Up to 2355 MHz
- Memory: 8GB/128 bit DDR6. 18 Gbps Effective
- Stream Processors: 2048
- RDNA™ 3 Architecture
- Ray Accelerator: 32
Overview :
Fuse Protection
In order to protect your card, the Sapphire Pulse AMD Radeon RX 7600 8GB Graphics Card have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades in Sapphire Pulse AMD Radeon RX 7600 8GB Graphics Card means the solution is up to 10% quieter than the previous generation.

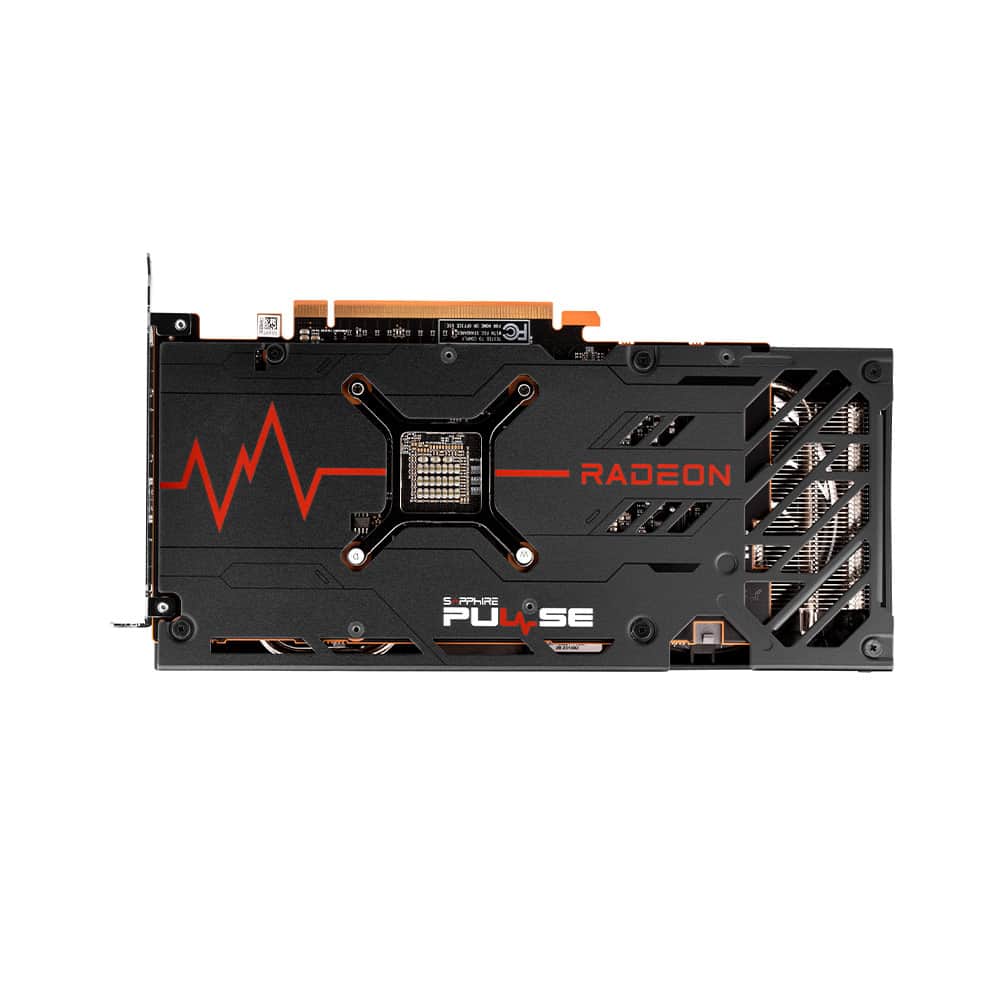

Tough Metal Backplate
The all-aluminum backplate in Sapphire Pulse AMD Radeon RX 7600 8GB Graphics Card provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Specifications :
| GPU | AMD Radeon™ RX 7600 Graphics Card |
| Architecture | AMD RDNA™ 3 Architecture |
| Engine Clock | Boost Clock: Up to 2755 MHz |
| Game Clock: Up to 2355 MHz | |
| Stream Processors | 2048 |
| Compute Units | 32 CU |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| Memory Size/Bus | 8GB/128 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort 1.4: 7680×4320 | |
| Interface | PCI-Express 4.0 x8 |
| Output | 1x HDMI |
| 3x DisplayPort | |
| BIOS Support | UEFI |
| Game Index | 1080P Ultimate |
| Sapphire Features | Fuse Protection |
| Dual-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate | |
| Two-Ball Bearing Fans | |
| Optimized Composite Heatpipe | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA 3 Architecture |
| DirectX 12 Ultimate | |
| AMD Smart Access Memory | |
| AMD Infinity Cache | |
| PCI Express 4.0 Support | |
| AMD FreeSync™ Technology | |
| DisplayPort 1.4 with DSC | |
| HDMI | |
| Video Streaming up to 8K | |
| AMD Radeon VR Ready Premium | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Software: Adrenalin Edition™ Technology | |
| Game Driver Optimizations | |
| Cooling | 2 Fans |
| Form Factor | 2 slot, ATX |
| Dimension | 240(L)X 107.1(W)X 44.07 (H)mm |
| Power Consumption | 185W Total Board Power |
| OS | Linux®, Windows® 10, and Windows 11 |
| 64-bit operating system required | |
| System Requirement | Minimum 550 Watt Power Supply |
| 1 x 8-pin Power Connector | |
| PCI Express® based PC is required with one X16 lane | |
| graphics slot available on the motherboard | |
| Minimum 8GB of system memory. 16GB recommended. | |
| Warranty | 3 Years |
