Thermaltake Divider 200 TG Air Micro Cabinet :

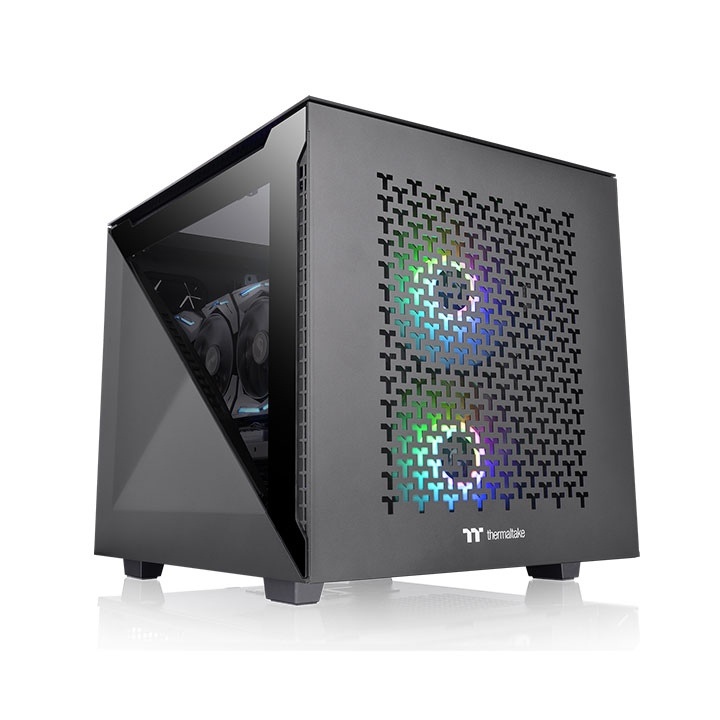

The Thermaltake Divider 200 TG Air is a Micro-ATX case that comes with one preinstalled 200mm front fan, one 120mm standard rear fan, two durable 3mm tempered glass windows on the top and left side.
Overview :
Thermaltake Divider 200 TG Air Micro-ATX Chassis
Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The Divider 200 TG Air is a Micro-ATX case of the Divider Series. Just like the other models, the most exceptional feature of the Divider 200 TG Air is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing components inside. Additionally, the Divider 200 TG Air comes with one preinstalled 200mm front fan and one 120mm standard rear fan to ensure outstanding cooling performance. Lastly, the Divider 200 TG Air has a chamber design with a flat motherboard tray that lets a user better doing cable management, while showing off hardware at the top. The Divider 200 TG Air Micro Case is the next-gen gaming PC case for users, enthusiasts, and gamers who are craving a micro case, giving them unprecedented satisfaction.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Avant-Grade Style Side Panels with Tempered Glass Windows

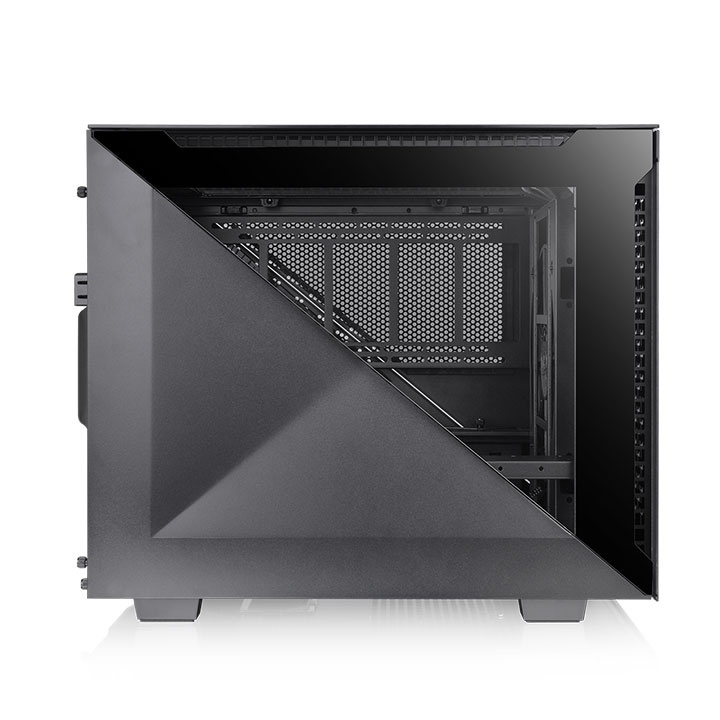

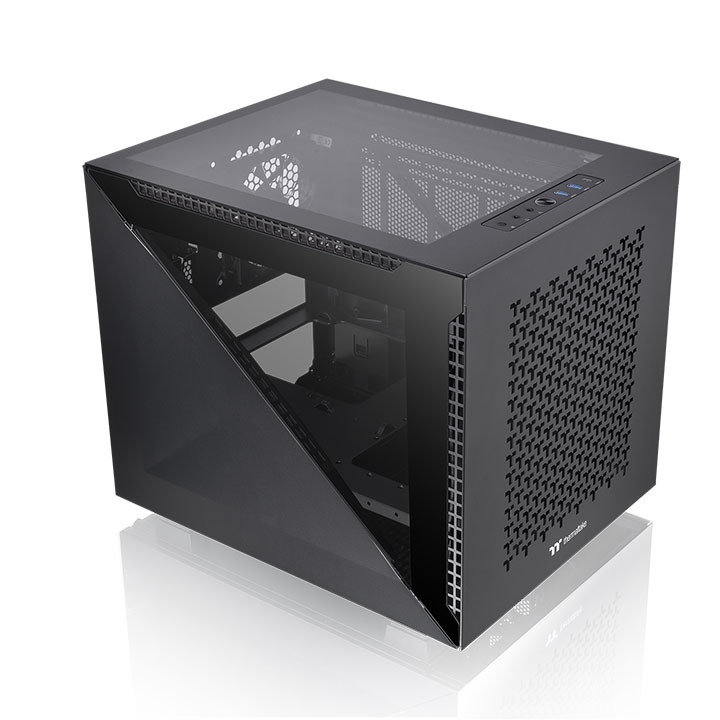

The exceptional feature of the Divider 200 TG Air is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on a user’s preference when building a PC. All of them are tool-free and easy to remove. Divider 200 TG Air comes with two sturdy 3mm tempered glass windows on the top and at the right, showcasing components inside the system. Tempered glass windows are thicker and more scratch-resistant compared to standard acrylic.
An Airflow-Optimized Panel

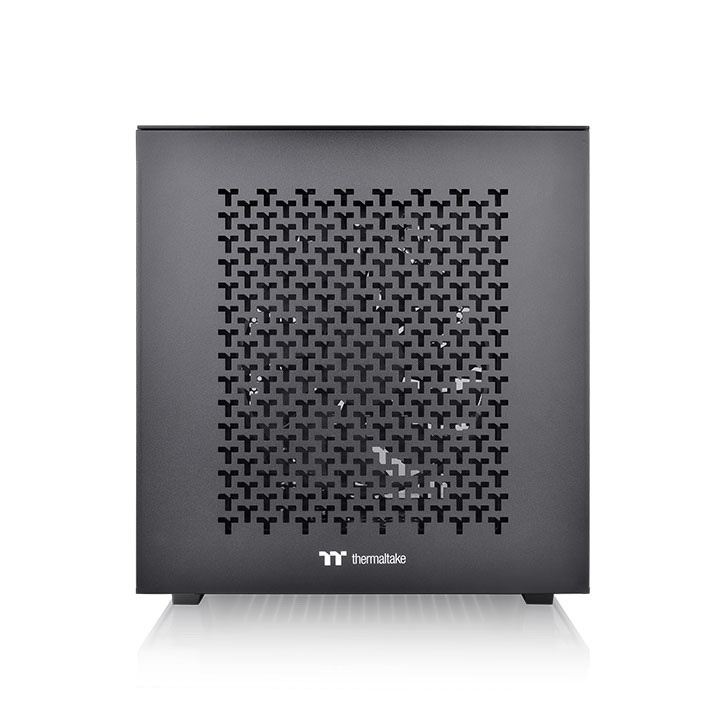

The Thermaltake Divider 200 TG Air comes with one large airflow-optimized mesh panel at the front for massive airflow performance.
Excellent Dust Filtration
The Thermaltake Divider 200 TG Air has well-designed removal magnetic fan filters on the right side and inner bottom. At the front and bottom, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Air Intake and Exhaust

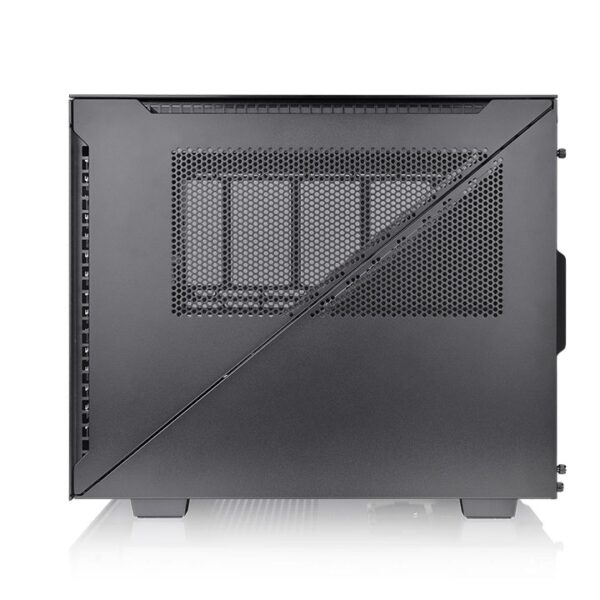

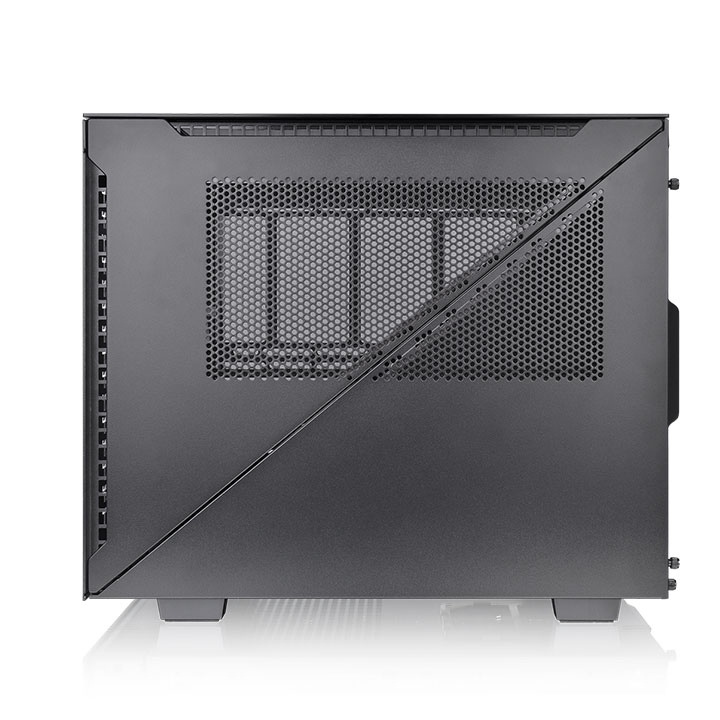

The cooling performance of the Divider 200 TG Air is excellent. The front mesh panel, air vents on the two sides of the front mesh panel and top tempered glass, and the vent between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on the user’s overall PC layout design.
Idle and Full-load Temperature
To let our customers better understand the thermal performance of the Divider 200 TG Air Micro ATX Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.
Specifications :
| P/N | CA-1V1-00S1WN-01 |
| SERIES | Divider |
| MODEL | Divider 200 TG Air |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 364.7 x 333.2 x 425.7 mm |
| (14.4 x 13.1 x 16.8 inch) | |
| NET WEIGHT | 8.97 kg / 19.78 lbs. |
| SIDE PANEL | 3mm Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Front (intake): |
| 200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1 | |
| Rear(exhaust): | |
| 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1 | |
| DRIVE BAYS | |
| -ACCESSIBLE | 3 x 3.5’’, 3 x 2.5’’ |
| -HIDDEN | or 6 x 2.5” |
| EXPANSION SLOTS | 5 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: |
| 2 x 120mm, 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| 1 x 200mm | |
| Right: | |
| 2 x 120mm, 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm, 1 x 140mm | |
| Bottom: | |
| 2 x 120mm, 1 x 120mm | |
| RADIATOR SUPPORT | Front: |
| 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Right: | |
| 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm | |
| CLEARANCE | CPU cooler height limitation: |
| 185mm | |
| VGA length limitation: | |
| 310mm (With 27mm radiator) | |
| 340mm (Without radiator) | |
| PSU length limitation: | |
| 180mm (With Bottom Fan) | |
| 200mm (Without Bottom Fan) |
