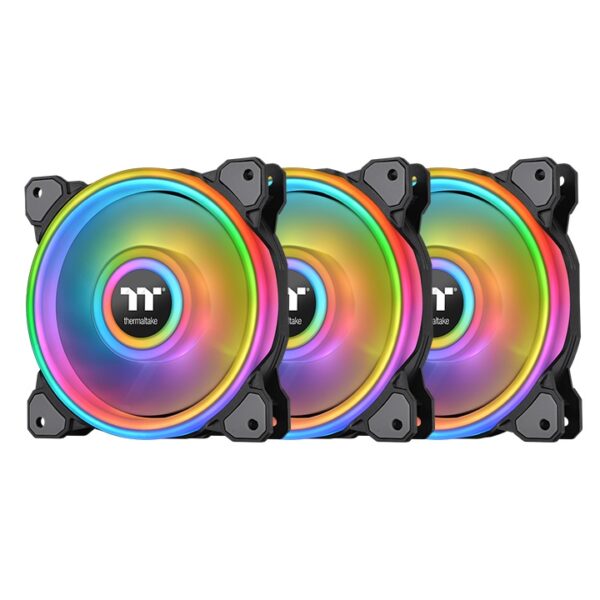

Thermaltake Riing Quad 12 RGB Radiator Fan TT Premium Edition 3 Fan Pack (Controller included)
Thermaltake Riing Quad 12 RGB Radiator Fan is designed with 4 independent LED rings totaling 54 LEDs and 16.8 million color combinations. The fan is virtually inaudible when in operation and supports our NeonMaker light editing software and TT RGB PLUS Ecosystem.
Overview :
Riing Quad Series
Thermaltake Riing Quad 12 RGB radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.
4 LIGHT RINGS AT THE FRONT 54 LEDs IN TOTAL
1st Ring 18LEDs
2nd Ring 18LEDs
3rd Ring 9LEDs
4th Ring 9LEDs
Hydraulic Bearing with Low-Noise Design
Thermaltake Riing Quad 12 RGB have hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
PWM Controlled Fan with 9-Fan Blade Design
Riing Quad’s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.
Note:
*It is recommended to connect up to 1 controller and 5 Riing Quad fans on one peripheral cable(Molex)only.
*DO NOT connect Riing Quad fans to other TT RGB PLUS controllers.
Extraordinary Cooling Performance
A specially designed fan blade allows even stronger flow, the Riing Quad fans ensure the cooling performance more efficient under intense operation.
Riing Quad 14 – 60.17 cfm/ 500-1400rpm /1.71 mm-H2O
Riing Quad 12 – 40.9 cfm / 500-1500rpm / 1.4 mm-H2O
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
Specifications :
| P/N | CL-F088-PL12SW-B |
| FAN DIMENSION | 120 x 120 x 25 mm |
| INTERFACE | USB 2.0 connectors (9 Pin) |
| SYSTEM COMPATIBILITY | Windows 7 / 8 / 8.1 / 10 |
| FAN STARTED VOLTAGE | 9.0 V |
| FAN RATED VOLTAGE | 12 V & 5V |
| RATED CURRENT | 12V- 0.09 A , 5v – 0.9A (Fan*1) |
| POWER INPUT | 12V – 3.24 W . 5V – 13.5 W (Fan*3) |
| FAN SPEED | 500 ~ 1500 R.P.M |
| MAX. AIR PRESSURE | 1.4 mm-H2O |
| MAX AIR FLOW | 40.9 CFM |
| NOISE | 25 dB-A |
| BEARING TYPE | Hydraulic Bearing |
| LIFE EXPECTATION | 40,000 hrs,25℃ |
| WEIGHT | 189 g (Fan*1) |
