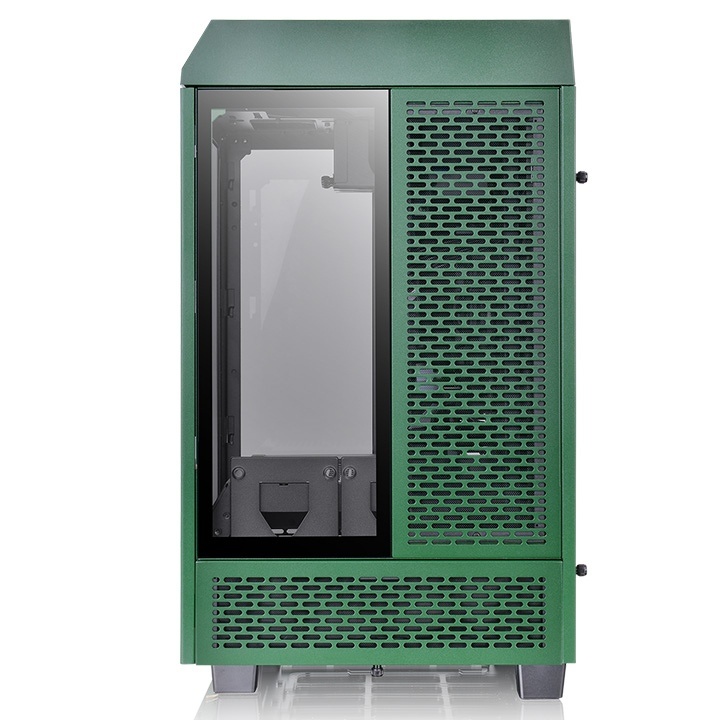

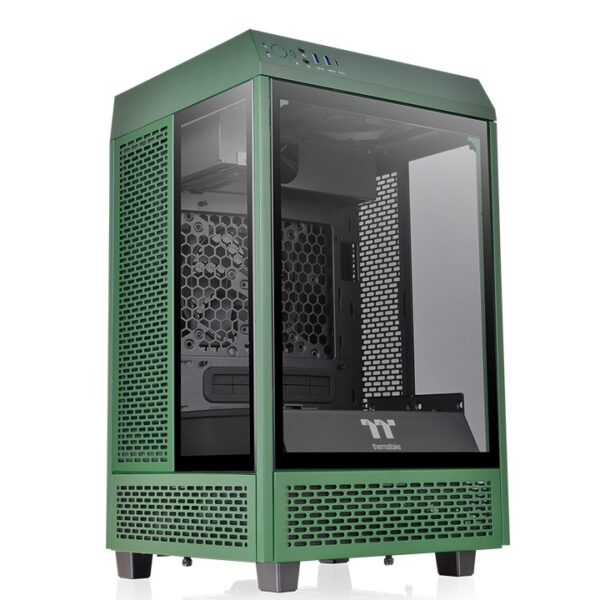

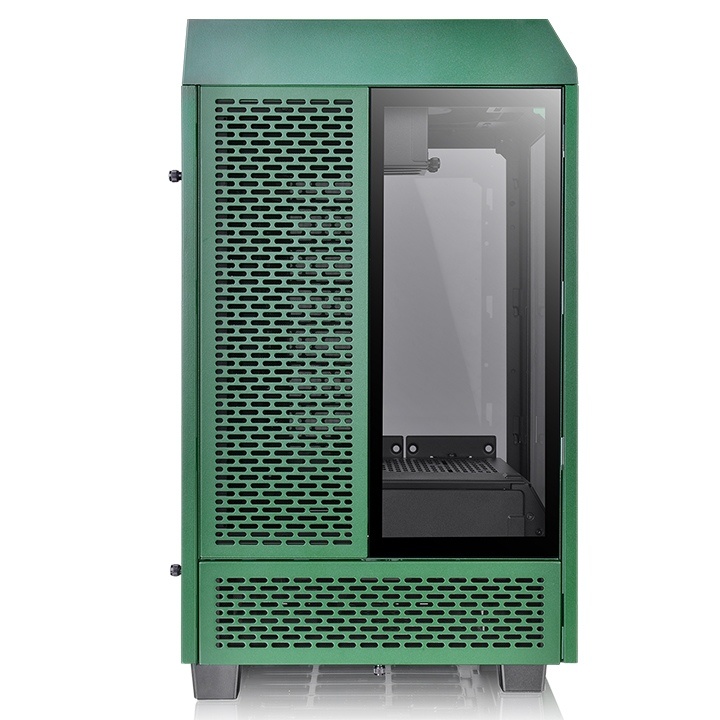

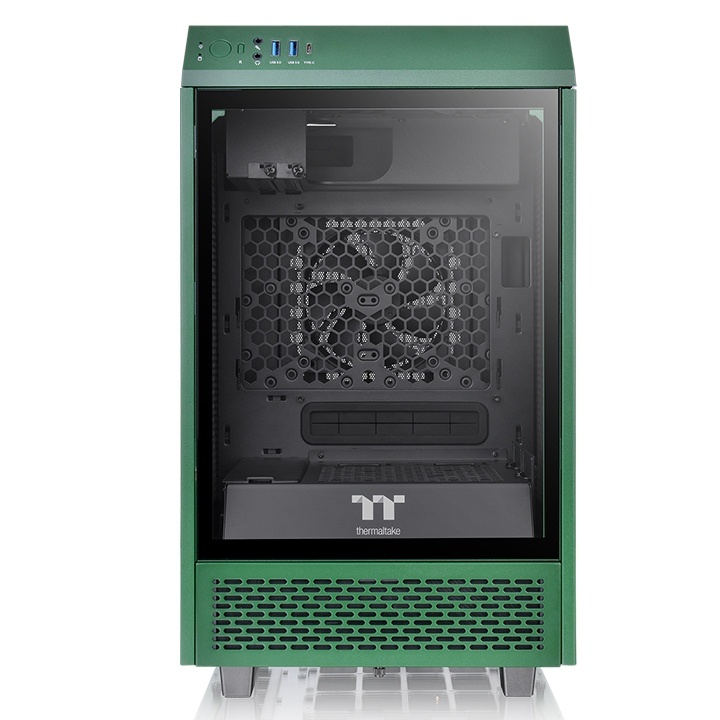

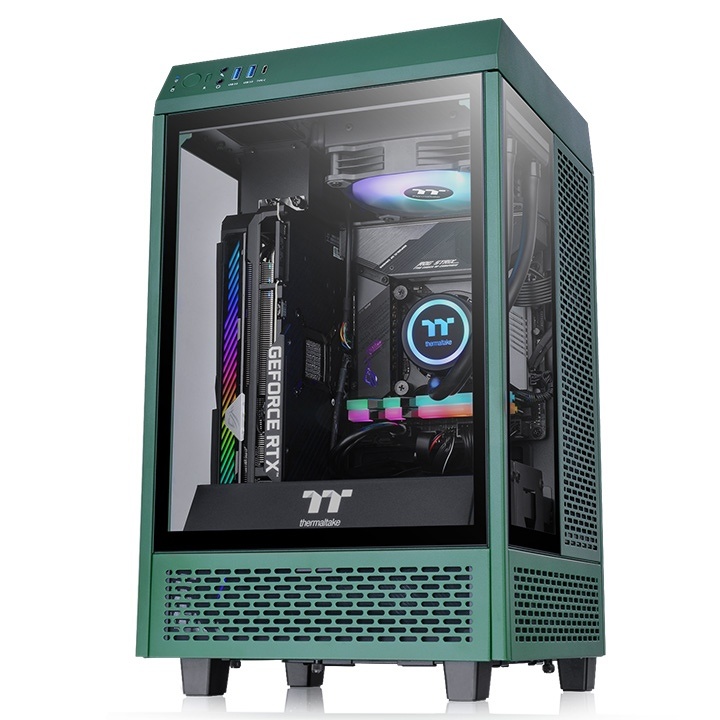

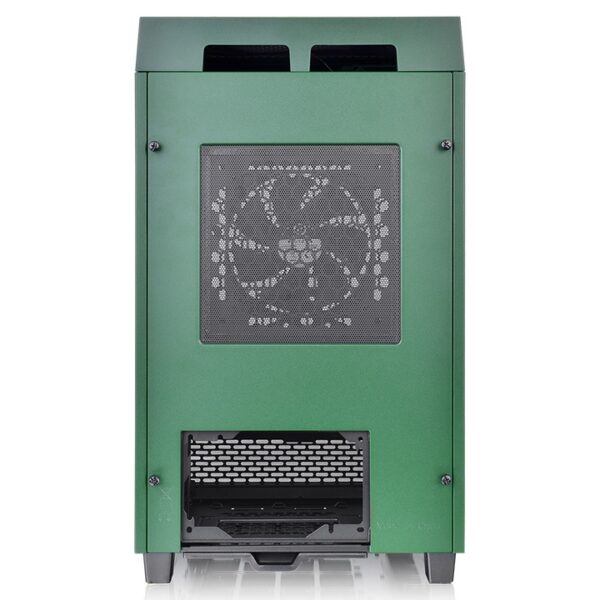

Thermaltake Tower 100 Racing Green Cabinet :
Thermaltake Tower 100 Racing Green is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.
Overview :
The Tower 100 Racing Green Mini Chassis
Thermaltake Tower 100 Racing Green Designed to expand the legacy of The Tower 900 E-ATX Super Tower Chassis, The Tower 100 Racing Green Mini Chassis is the newest member of The Tower Series. It features three 4mm tempered glass windows for a stunning view and two preinstalled 120mm standard fans on top and at the rear for exhaust. It is a much smaller version of The Tower 900 with dimensions of 462.8mm (Height), 266mm (Width), 266mm (Depth).
Though it may not be the smallest Mini-ITX chassis on the market, it is a highly capable one that can fit high-end components like the RTX 30 Series Graphics Cards. The Tower 100 Turquoise Mini Chassis is designed to target users who have a limited space at their workplace or at home, or those who simply do not want their PC to take too much space. No matter if you are a regular users, gamers, or content creators, etc. you will find it ideal and can place it almost anywhere in your room.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Vertical Body Design
The Thermaltake Tower 100 Racing Green is a vertically designed case constructed with solid steel all around, the vertical design allows the chassis to have a smaller footprint, and helps to minimize obstruction to your gaming and workspace area. The vertical design also helps extract heat from the chassis by using a chimney effect, intaking cold air from the base and dispelling the heat via the top.
Tempered Glass Panels With Panoramic View
The three 4mm tempered glass windows of The Tower 100 Racing Green are thicker and more scratch resistant when compared to standard acrylic. It not only creates a panoramic view for displaying internal components but also gives users an easy and quick access once the top panel and the three tempered glass windows are revmoved.
Excellent Dust Filtration
The Thermaltake Tower 100 Racing Green has well-designed removal magnetic fan filters on the back, on inner two sides, and at the inner bottom layer. At the base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Sophisticated Space Design
Sophisticated space design maximizes the capcity of The Tower 100 Racing Green for PC componets support and helps tidy up cable management.
Air Intake and Exhaust
People may have concern about the cooling performance of a mini-ITX chassis. However, the cold air intakes and hot air exhausts are well-developled, ensuring the interior temperature stays low at all times.
Idle and Full-load Temperature
To let our customers better understand the thermal performance of The Tower 100 Racing Green Mini Chassis, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.
Specifications :
| P/N | CA-1R3-00SCWN-00 |
| SERIES | The Tower |
| MODEL | The Tower 100 Racing Green |
| CASE TYPE | Mini Tower |
| DIMENSION (H X W X D) | 462.8 x 266 x 266 mm |
| (18.2 x 10.5 x 10.5 inch) | |
| NET WEIGHT | 6.1 kg / 13.45 lbs. |
| SIDE PANEL | Tempered Glass x 3 (4mm thickness) |
| COLOR | Racing Green |
| MATERIAL | SPCC |
| COOLING SYSTEM | Top(exhaust): |
| 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1 | |
| Rear(exhaust): | |
| 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1 | |
| DRIVE BAYS | |
| -ACCESSIBLE | – |
| -HIDDEN | 2 x 2.5“(with side bracket); |
| 2 x 2.5“ or 2 x 3.5” (without rear fan) | |
| EXPANSION SLOTS | 2 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: |
| 1 x 120mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm, 1 x 140mm | |
| Top of the PSU Cover: | |
| 1 x 120mm, 1 x 140mm | |
| RADIATOR SUPPORT | Top: |
| 1 x 120mm | |
| CLEARANCE | CPU cooler height limitation: 190mm |
| VGA length limitation: 330mm |
