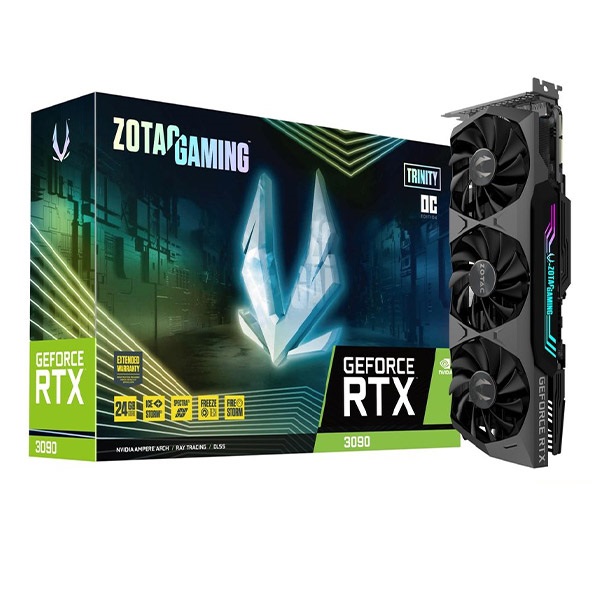

Zotac RTX 3090 Trinity OC 24GB 384 Bit Gaming Graphics Card
Features:
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- SPECTRA 2.0 RGB Lighting
- IceStorm 2.0 Advanced Cooling
- Active Fan Control with FREEZE Fan Stop
- Metal Frontplate and RGB LED Backplate
- NVIDIA NVLink (SLI-ready), VR Ready
- FireStorm Utility (Download HERE)
Overview :
Get Amplified with the Zotac RTX 3090 Trinity OC 24GB based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast GDDR6X memory, the Zotac RTX 3090 Trinity OC 24GB gives rise to the amplified gaming experience with ultra graphics fidelity.
RTX. IT’S ON.
Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of Al-powered DLSS. RTX. It’s On.
DLSS AI ACCELERATION MAX FPS.
MAX QUALITY. POWERED BY AL.
NVIDIA DLSS is groundbreaking Al rendering that boosts frame rates by 1.5X” or more with uncompromised image quality using the dedicated Al processing Tensor cores on GeForce RTX.
This gives you the performance headroom to crank upP settings and resolutions for an incredible visual experience. The Al revolution has arrived to gaming.
COLOR IN THE LIGHT
DYNAMIC RGB
SPECTRA 2.0 lights the path, enables beautiful colors, brings lighting to Iife with animated options, and makes the Zotac RTX 3090 Trinity OC 24GB graphics card yours with personalization using the ZOTAC GAMING Fire Storm software.
Metal backplate outfitted with ARGB LED lighting.
BRING DOWN THE MERCURY
ADVANCED COOLING
A more refined lceStorm 2.0 cooling system is purpose-built for wider coverage to keep the GPU cooler and running stronger, with enhancements in the visible and in what lies underneath.
The all-new 11-blade fan increases airflow by up to 10% (when compared to the previous generation design)
Three groups of aluminum fin-stack array heatsink paired with up to seven copper heat pipes extract more heat and distribute it more efficiently than before.
A new and improved heat pipe layout in Zotac RTX 3090 Trinity OC 24GB increases direct GPU contact in a more densely packed space.
FREEZE Fan Stop automatically enables efficient and quieter cooling by stopping the fans when the GPU is idle, whilst reducing wear and tear on the fan system.
Active Fan Control lets users have more control over the fans when using the ZOTAC GAMING FireStorm software. Adjust fan rotations independently and apply increased airflow only to where and when it’s needed.
MORE RESILIENT
The design of Zotac RTX 3090 Trinity OC 24GB Series underlines durability from front to back with a metal die-cast frontplate and backplate to increase the overall card rigidity and structural integrity.
Speficiations :
GPU | GeForce RTX 3090 |
CUDA cores | 10496 |
Video Memory | 24GB GDDR6X |
Memory Bus | 384-bit |
Engine Clock | Boost: 1710 MHz |
Memory Clock | 19.5 Gbps |
PCI Express | 4.0 16x |
Display Outputs | 3 x DisplayPort 1.4a (up to 7680×4320@60Hz) HDMI 2.1* (up to 7680×4320@60Hz) *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS |
HDCP Support | 2.3 |
Multi Display Capability | Quad Display |
Recommended Power Supply | 750W |
Power Consumption | 350W |
Power Input | 2 x 8-pin |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Cooling | IceStorm 2.0 |
Slot Size | 2.5 slot |
SLI | NVLink Ready |
Supported OS | Windows 10 64-bit (build 2004 or later) |
Card Length | 317.8mm x 120.7mm x 58mm / 12.5″ x 4.75″ x 2.28″ |
Accessories | 2 x Dual 6-pin to 8-pin cable Manual |
Warranty | 3 Years + 2 Years Extended (On Registration) Register your Warranty Here! |
