ZOTAC ZBOX MAGNUS ONE ECM73070C (Barebone) :
Features :
– 8.3 liter compact chassis
– 10th Gen Intel Core i7 processor
– ZOTAC GAMING GeForce RTX 3070 8GB GDDR6
– Up to 64GB DDR4-2933/2666 memory support
– 1 x HDMI 2.1, 3 x DisplayPort 1.4a, 1 x HDMI 1.4 (integrated)
– 4 x USB 3.1 GEN2, 4 x USB 3.0 (1 Type-C)
– Killer WiFi, Gigabit and 2.5Gbps Ethernet
– 500W 80+ Platinum power supply
– Creator Ready / 4K Ready / Gaming Ready / VR Ready
Overview :
ZOTAC ZBOX MAGNUS ONE ECM73070C Empower everything in one incredibly powerful, versatile Mini PC. MAGNUS ONE boasts the ultimate performance in an all-new and compact design. It is the first Mini PC taking advantage of the ZOTAC GAMING GeForce RTX™ 3070 graphics card for high-fidelity ray-traced graphics and cutting-edge AI features with DLSS.
Paired with a 10th Gen Intel® Core™ i7 processor, upgradable memory and storage support, full-range connectivity options with Killer networking, MAGNUS ONE has the do-it-all capability to deliver the best experience for daily tasks, gaming, entertainment, content creation and business.
Specifications :
Computing System ZOTAC ZBOX MAGNUS ONE ECM73070C
- ProcessorIntel Core i7-10700 (8-core 2.9 GHz, up to 4.8 GHz)
- ChipsetIntel, NVIDIA
- System Memory2 x DDR4-2933/2666 SODIMM Slots (up to 64GB)
Graphics
- Graphics EngineZOTAC GAMING GeForce RTX 3070 8GB GDDR6 256-bit
- Video Output1 x HDMI 1.4 (up to 3840×2160@30Hz) (integrated)
1 x HDMI 2.1* (up to 7680×4320@60Hz)
3 x DisplayPort 1.4a (up to 7680×4320@60Hz)
Up to Quad Display Support
*Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS
Storage
- Hard Drive1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
- Mass StorageN/A
- Optical DriveN/A
- mSATAN/A
- M.21 x M.2 PCIe x4 / SATA SSD slot (2242,2280), 1 x M.2 PCIe x4 SSD / Intel Optane memory slot (2242, 2280, 22110)
- Card Reader3-in-1 (SD/SDHC/SDXC)

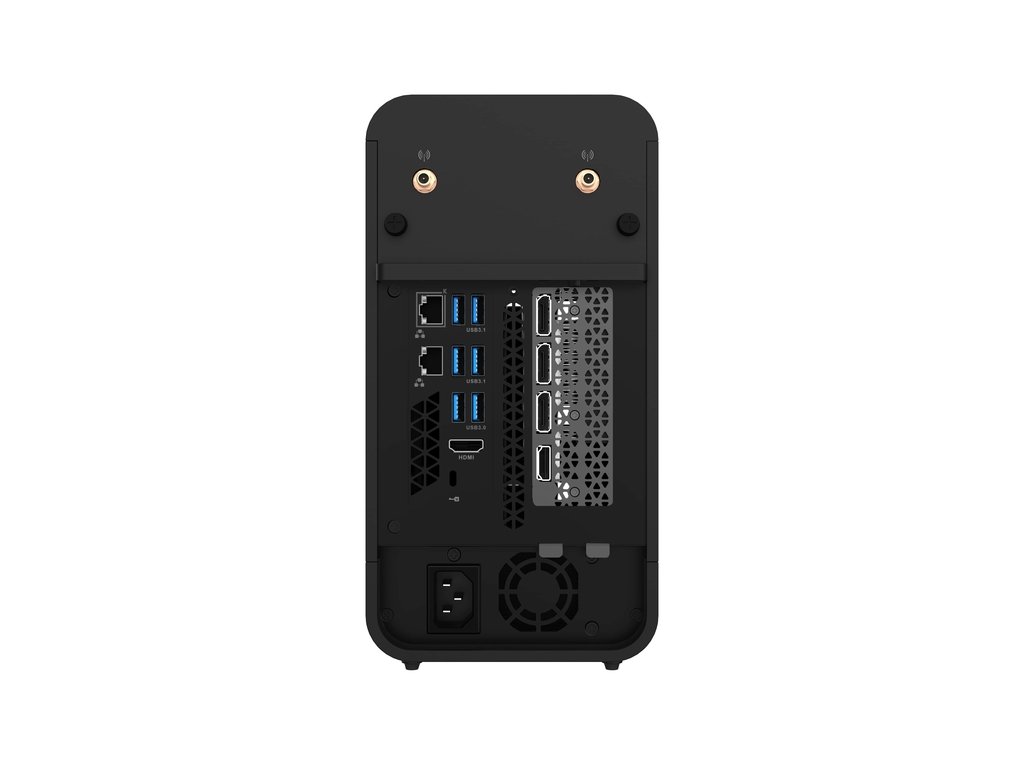

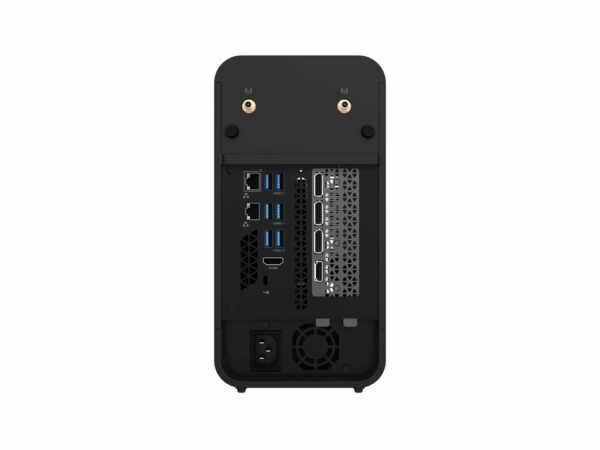

I/O Ports
- AudioMicrophone, Headphone, HDMI
- USB Port4 x USB 3.1
4 x USB 3.0 (1 Type-C) - LANDual LAN (Gigabit Ethernet, 2.5Gbps Ethernet)
- AntennaDual WiFI SMA connetor
- WifiWiFi 6 AX1650
- BluetoothBluetooth 5
- Legacy I/ON/A
- CIR Infrared PortN/A
- ThunderboltN/A
- USBN/A
- IDEN/A
- VGAN/A
Mechanical with ZOTAC ZBOX MAGNUS ONE ECM73070C
- Kensington LockYes
- LED IndicatorsPower, HDD, WiFi
- Power Supply500W 80+ Platinum
- Cooling systemFan + Heatsink
- ZBOX Dimensions265.5mm x 126mm x 249mm (10.45in x 4.96in x 9.8in)
- Case MountingNone
Miscellaneous
- Supported OSWindows 10 64-bit

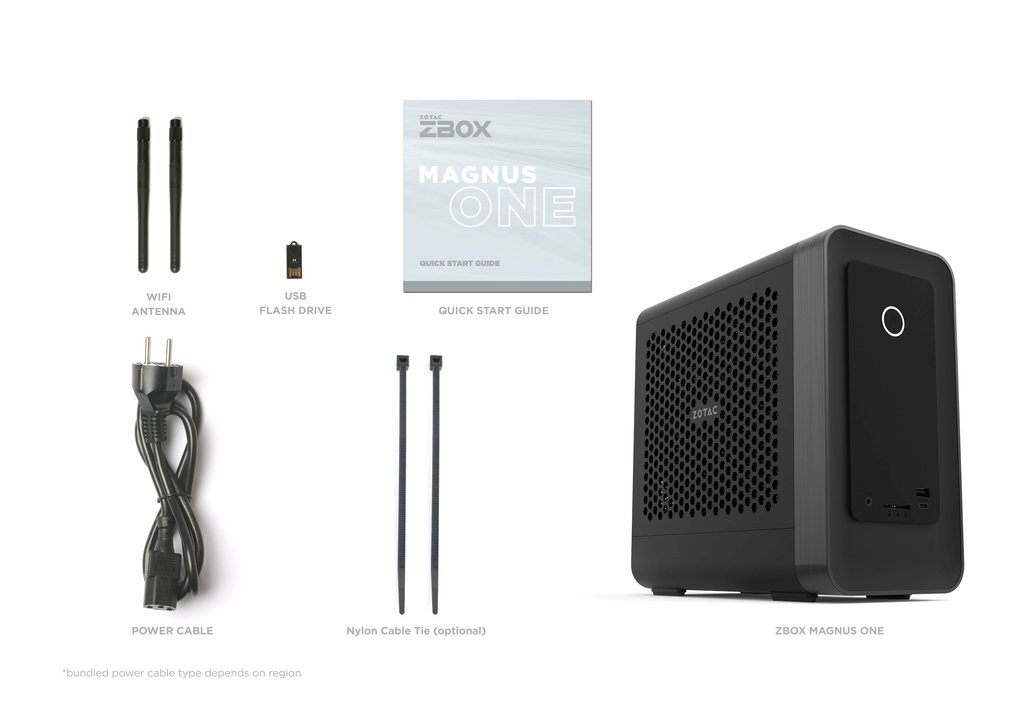

- Accessories2 x WiFi antenna
Power Cord (bundled cable type dependent on region)
Warranty Card
Quick Install Guide
USB drive with O/S driver
Nylon Cable Tie (optional)
