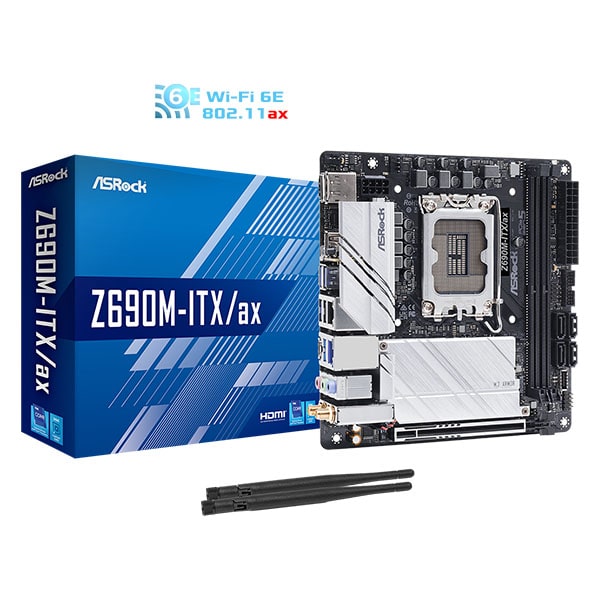

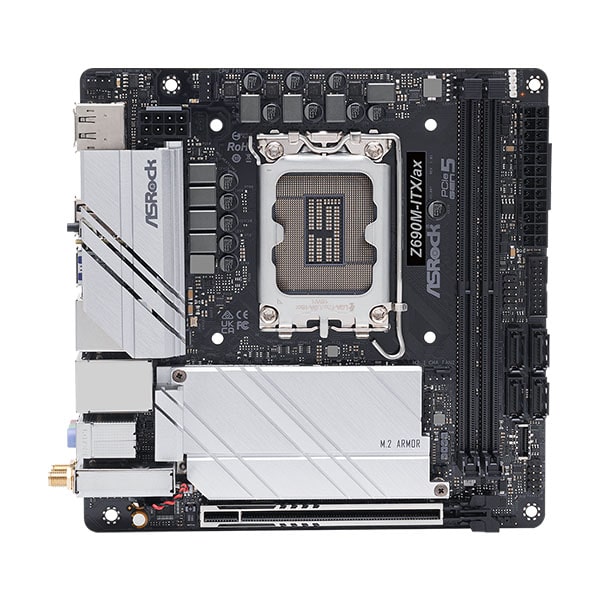

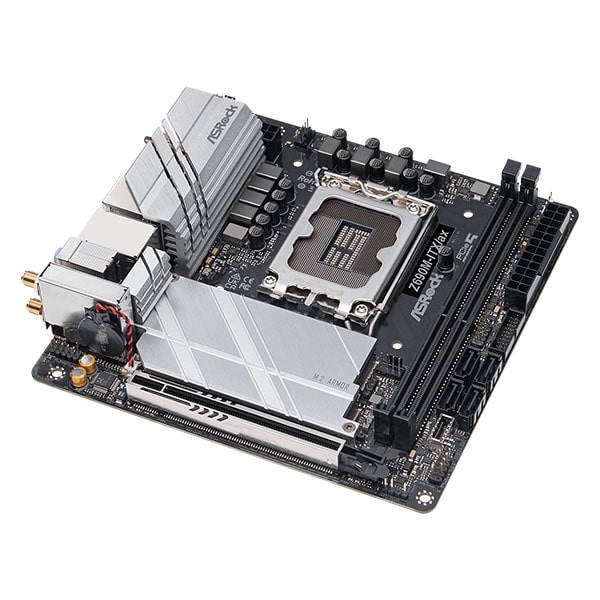

ASRock Z690M ITX/ax Motherboard:
Features:
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 8 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 USB 3.2 Gen2x2 Type-C (1 Front, 1 Rear)
4 USB Rear 3.2 Gen2
2 USB Front 3.2 Gen1 - Dragon 2.5G LAN, Intel® Gigabit LAN
- 802.11ax (WiFi 6E) + Bluetooth
Overview:
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Layer PCB
PCIe 5.0 + Surface-Mount Tech
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
POLYCHROME RGB
High Speed M.2 Solution
Dragon 2.5 Gb/s LAN
USB 3.2 Gen2x2 20Gbps (Front + Rear)
BIOS Flashback
Specifications:
Unique Feature | ASRock USB 3.2 Gen2 – ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s) – ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy – Premium Power Choke – 50A Dr.MOS – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – Sapphire Black PCB – High Density Glass Fabric PCB – 8 Layer PCB 2.5G LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
CPU | – Supports 12th Gen Intel® Core™ Processors (LGA1700) – Digi Power design – 8 Power Phase design – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology |
Chipset | – Intel® Z690 |
Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
BIOS | – 256Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
Graphics | – Intel® Xe Graphics Architecture (Gen 12) – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio |
LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE |
Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ax – Supports Dual-Band 2×2 160MHz with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO |
Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors |
Connector | — 1 x RGB LED Header* – 1 x Addressable LED Header** – 1 x CPU Fan Connector (4-pin)*** – 1 x Chassis Fan Connector (4-pin)**** – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection) |

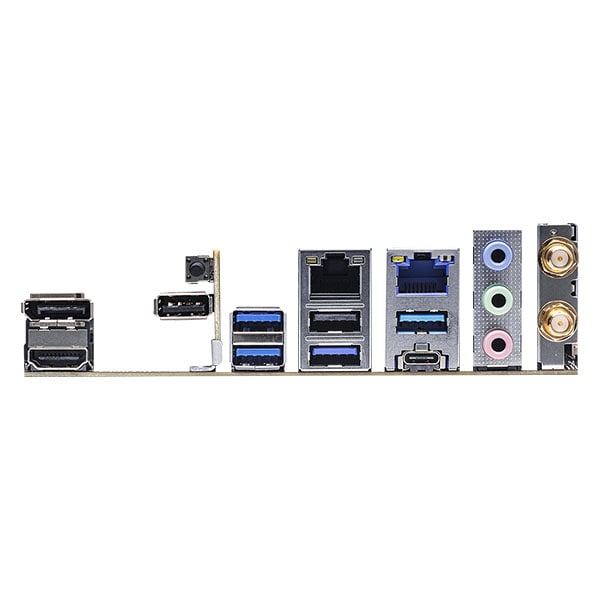

Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer |
Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | -Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash |
Hardware Monitor | – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
Form Factor | – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm – 8 Layer PCB |
OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
