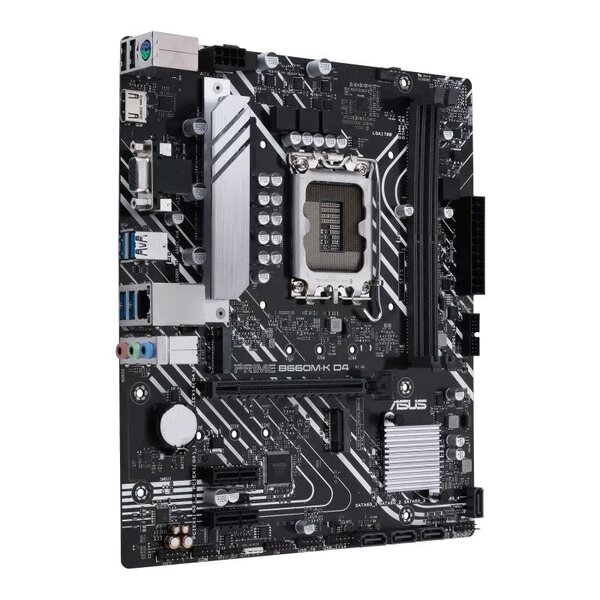

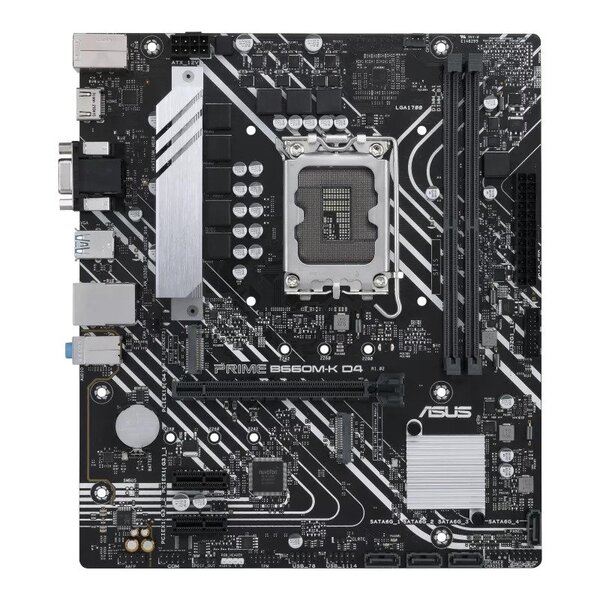

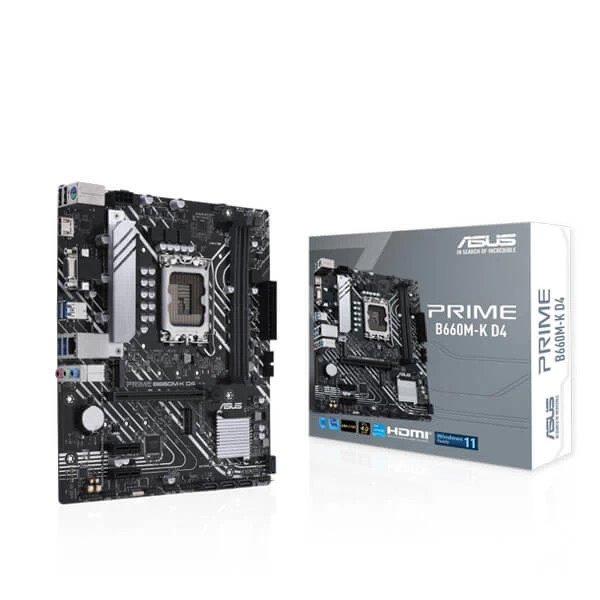

Asus Prime B660M-K D4 Motherboard
Features
- Intel® LGA 1700 socket: Ready for 12th gen Intel® processors Asus Prime B660M-K D4
- Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Ultrafast connectivity: PCIe® 4.0, two M.2 slots and front USB 3.2 Gen 1 Asus Prime B660M-K D4
Specifications
CPU | Intel LGA1700 CPU |
Chipset | Intel® B660 Chipset |
Memory | 2x DIMM, Max. 64GB, DDR4 |
Graphics | 1 x D-Sub port 1 x HDMI® port |
Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel®B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek 1Gb Ethernet |
Wi-Fi | N/A |
USB | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

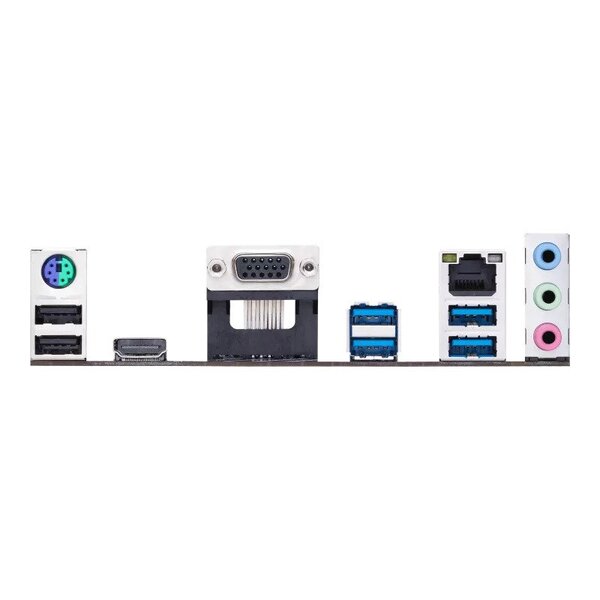

Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | microATX 24.4cm x 21.1cm |
Warranty | 3 Years |
