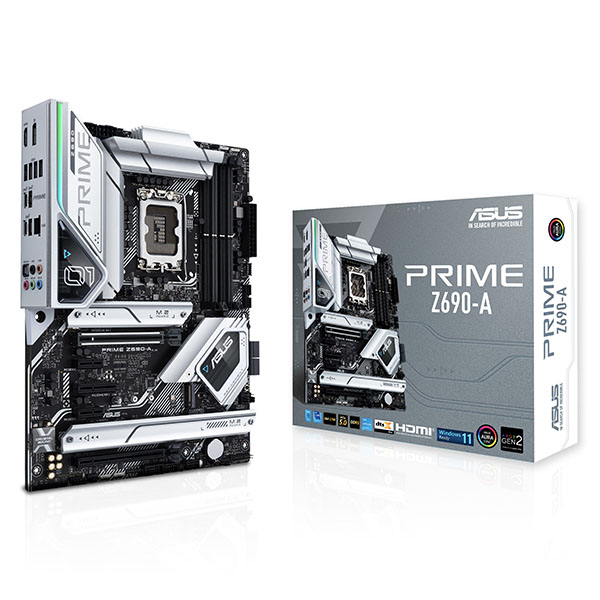

Asus Prime Z690-A Motherboard
Features
Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI®, DisplayPort™, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Asus Prime Z690-A Motherboard Ready for 12th Gen Intel processors
- Enhanced power solution: Asus Prime Z690-A Motherboard 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
- AI Cooling: Asus Prime Z690-A Motherboard Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
- Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Asus Prime Z690-A Motherboard Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
- Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2
Specifications
| CPU | Intel LGA1700 CPU |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x4 slot2 x PCIe 3.0 x1 slots |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280/22110 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wi-Fi | N/A |
| USB | Rear USB:Total 8 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
