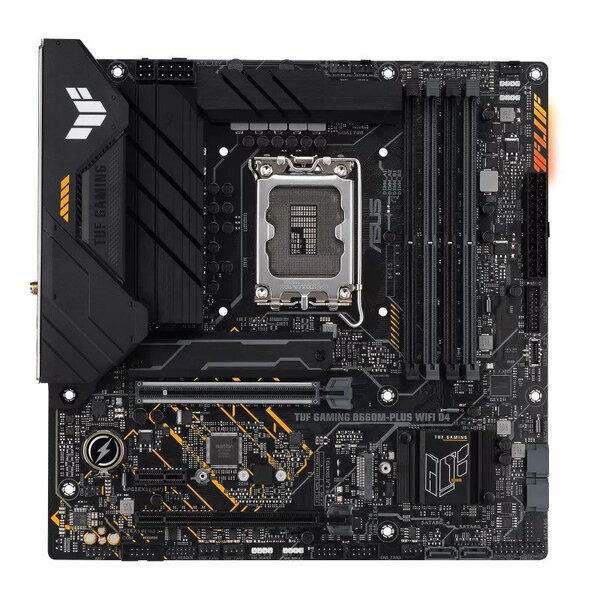

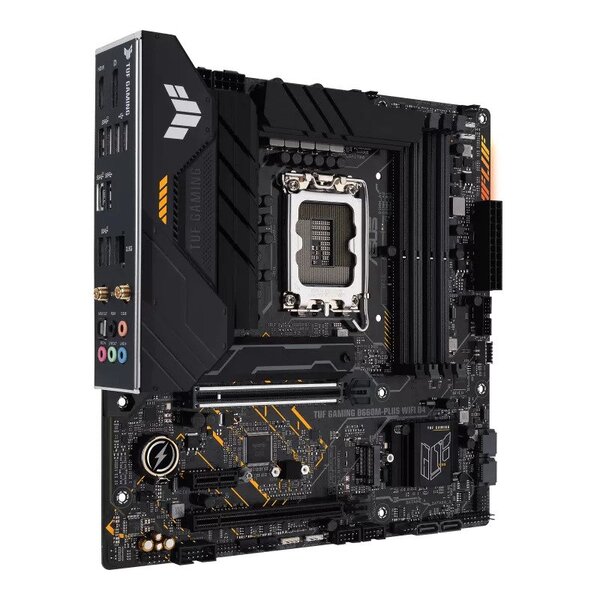

Asus TUF Gaming B660M-Plus Wifi D4 Motherboard
Features
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Asus TUF Gaming B660M-Plus Wifi D4
- Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Asus TUF Gaming B660M-Plus Wifi D4
- Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
- Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard Asus TUF Gaming B660M-Plus Wifi D4
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences Asus TUF Gaming B660M-Plus Wifi D4
Specifications
CPU | Intel LGA1700 CPU supported by Asus TUF Gaming B660M-Plus Wifi D4 |
Chipset | Intel® B660 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR4 |
Graphics | 1 x DisplayPort 1 x HDMI® port |
Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wi-Fi | Intel® Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. |
USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

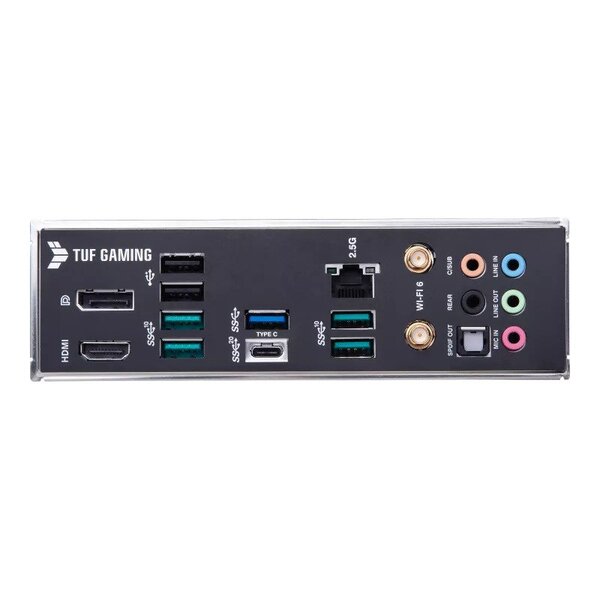

Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | microATX 24.4cm x 24.4cm |
Warranty | 3 Years |
