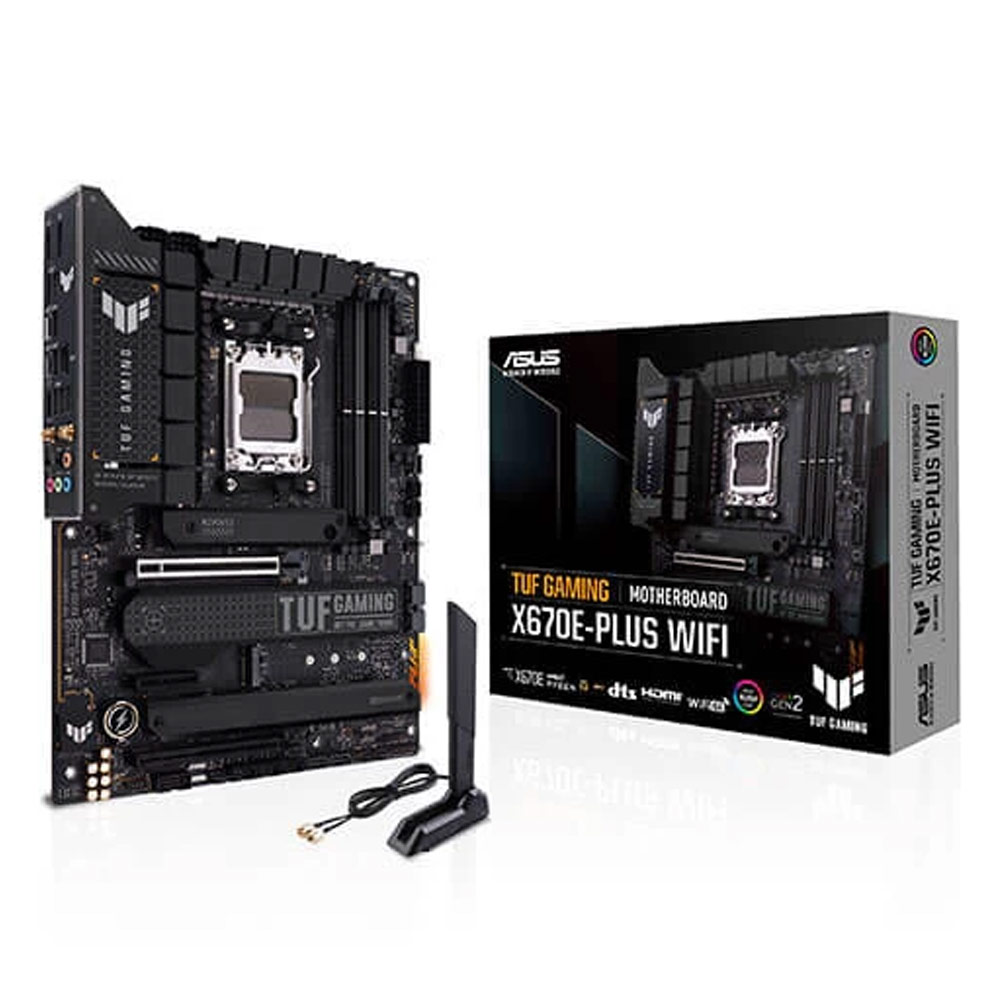

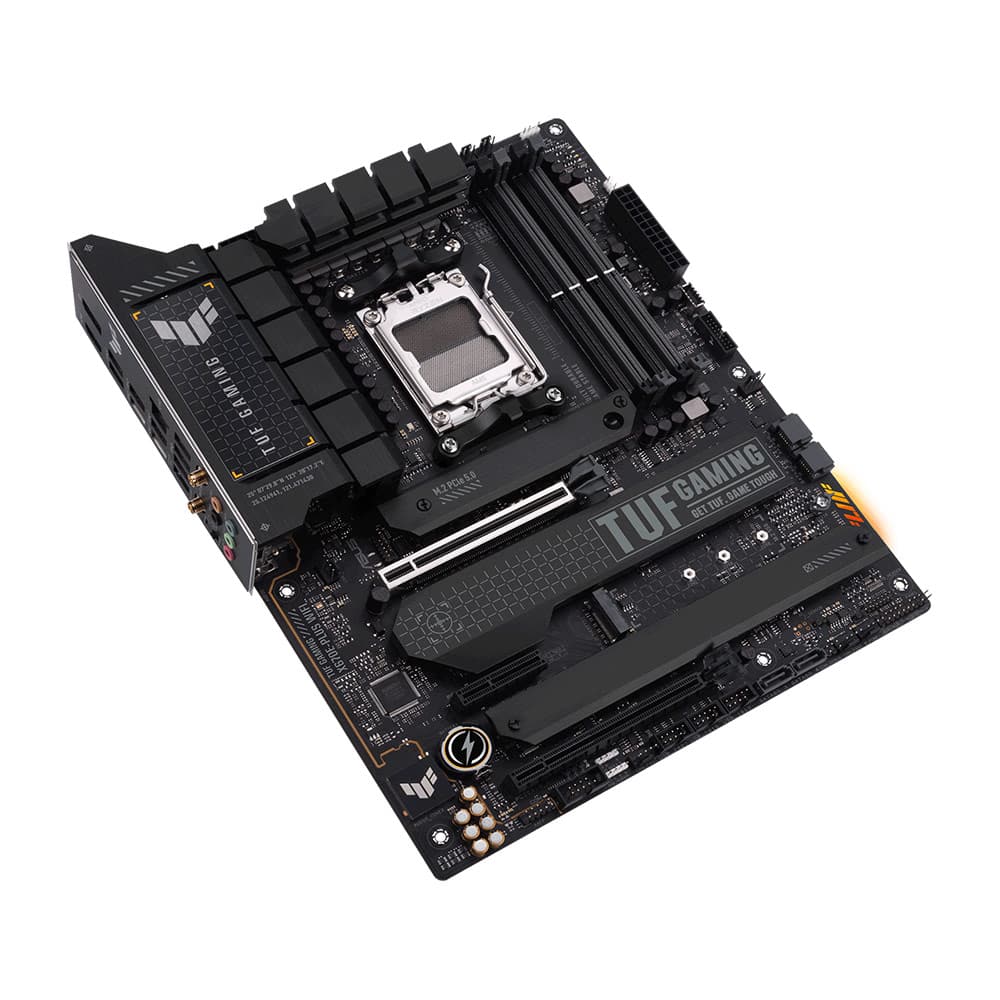

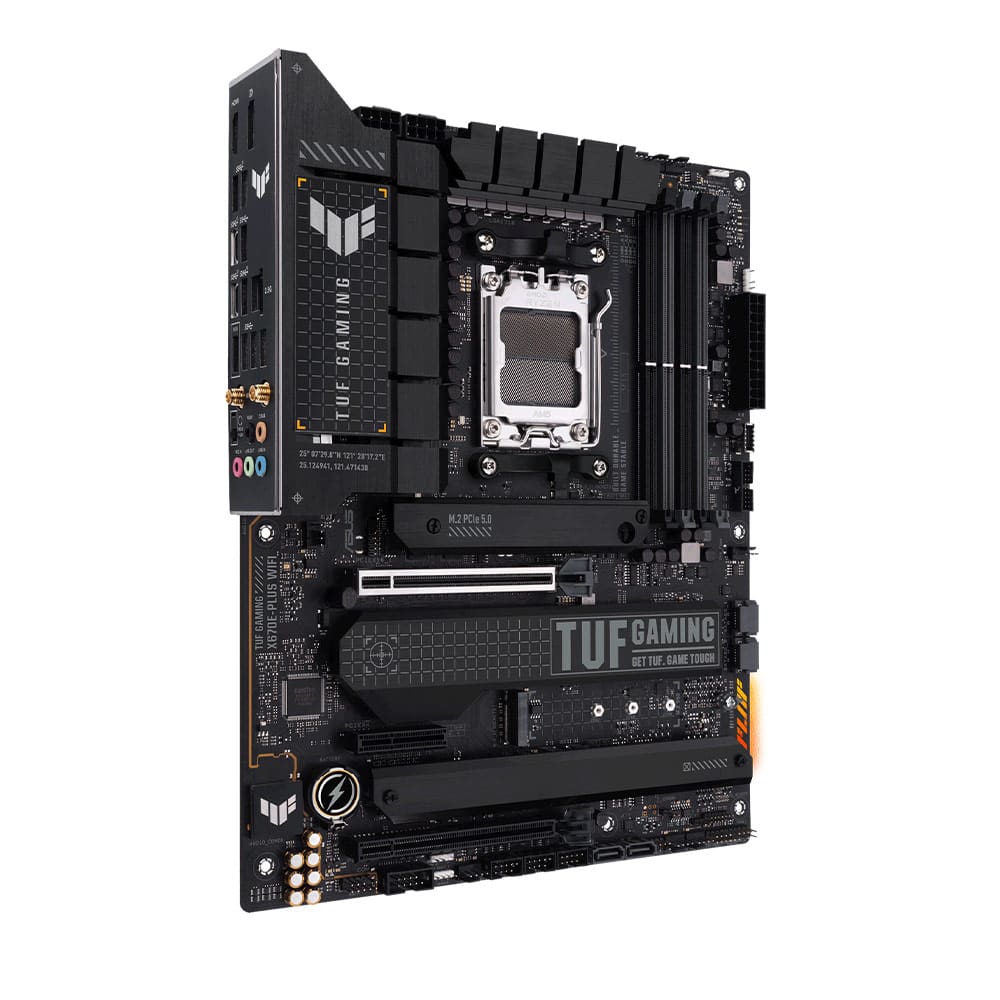

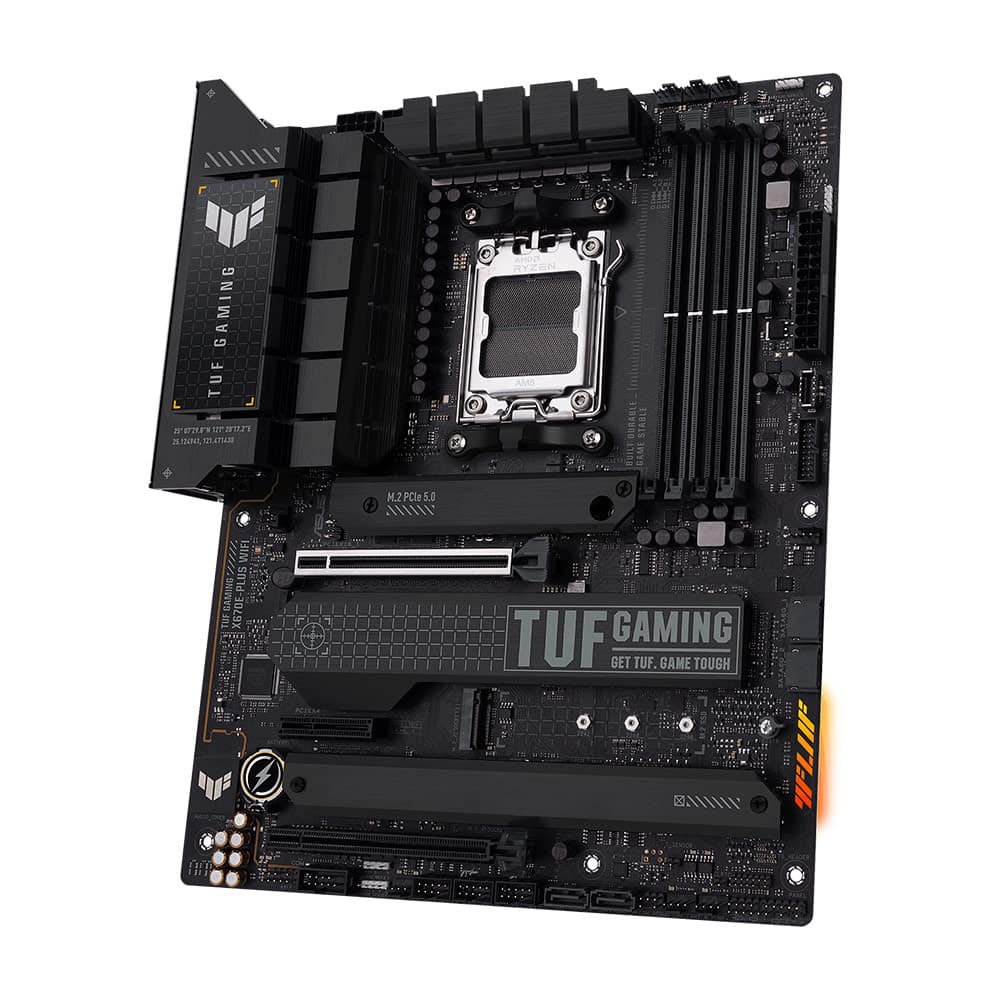

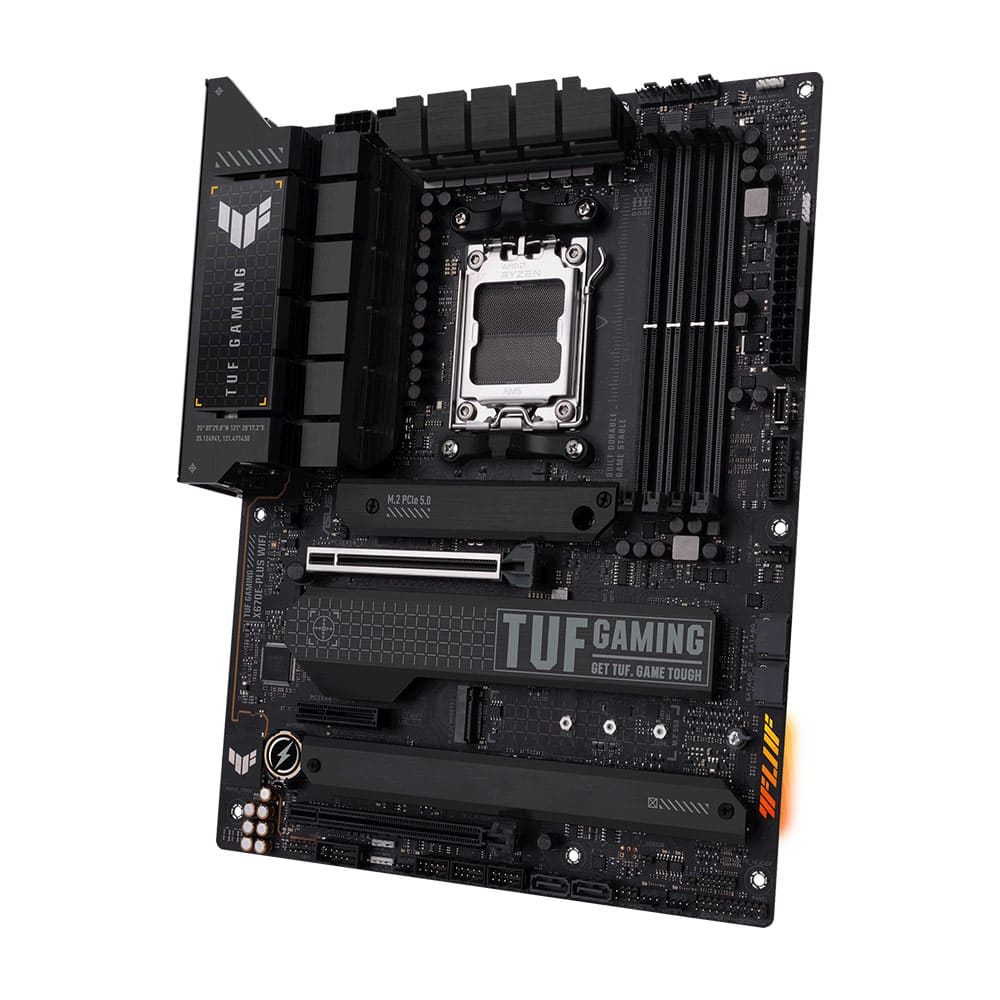

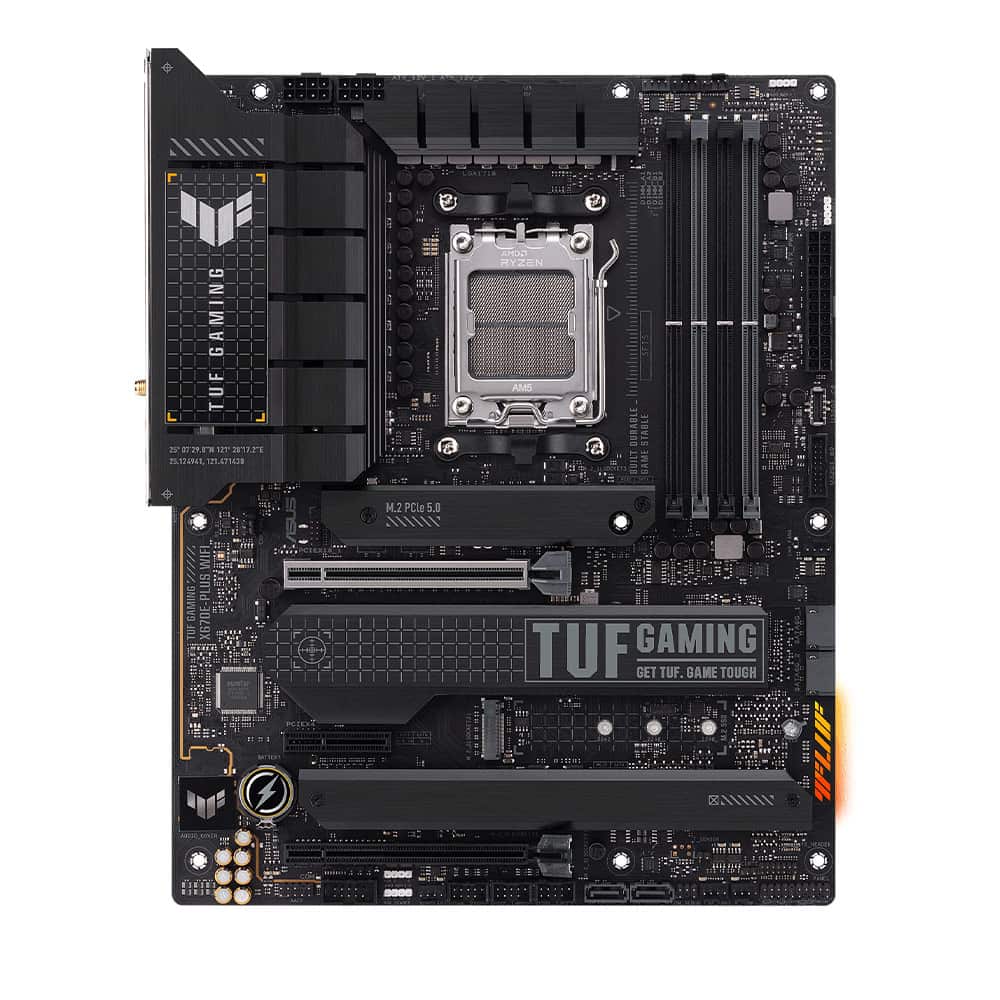

ASUS TUF Gaming X670E-Plus WIFI DDR5 Motherboard
Features of ASUS TUF Gaming X670E-Plus WIFI DDR5 :
- 14+2 teamed power stages (rated 70A) with enlarged VRM heatsinks
- PCIe®0 for graphics cards and M.2 storage
- DDR5 memory module support
- USB 3.2 Gen 2×2 Type-C®and a front-panel USB 3.2 Gen 2 Type-C® header
- 5 Gb Ethernet
- WiFi 6E
- AI Overclocking, Core Flex and Dynamic OC Switcher
- ASUS AI Cooling II
- Two-Way AI Noise Cancelation
Overview of ASUS TUF Gaming X670E-Plus WIFI DDR5 :
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The ASUS TUF Gaming X670E-Plus WIFI DDR5 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Overclocking Technologies
Whether you’re looking to crush benchmarks or fine-tune your system for daily driving, ASUS TUF Gaming X670E-Plus WIFI DDR5 offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD’s latest CPUs, plus support for faster memory and storage, ASUS TUF Gaming X670E-Plus WIFI DDR5 is the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
14+2 power stages are each rated to handle 70 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the ASUS TUF Gaming X670E-Plus WIFI DDR5, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.
Cooler By Design
The ASUS TUF Gaming X670E-Plus WIFI DDR5 is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
Connectivity
The ASUS TUF Gaming X670E-Plus WIFI DDR5 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
EASY PC DIY
The ASUS TUF Gaming X670E-Plus WIFI DDR5 offers easy setup for all builders. The ASUS TUF Gaming X670E-Plus WIFI DDR5 ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SafeSlot Core+ & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules ASUS TUF Gaming X670E-Plus WIFI DDR5 motherboards, empowering you to insert your modules with speed, accuracy and confidence.
M.2 Q-Latch
The innovative Q-Latch in ASUS TUF Gaming X670E-Plus WIFI DDR5 makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
IMMERSIVE GAMING
ASUS TUF Gaming X670E-Plus WIFI DDR5 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM,
YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF Gaming X670E-Plus WIFI DDR5 motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
Specifications of ASUS TUF Gaming X670E-Plus WIFI DDR5 :
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. |
| Graphics
| 1 x DisplayPort 1 x HDMI portGraphics specifications may vary between CPU types.Supports max. 8K@60Hz as specified in DisplayPort 1.4.Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| Audio | “Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs Audio Features – Audio shielding Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

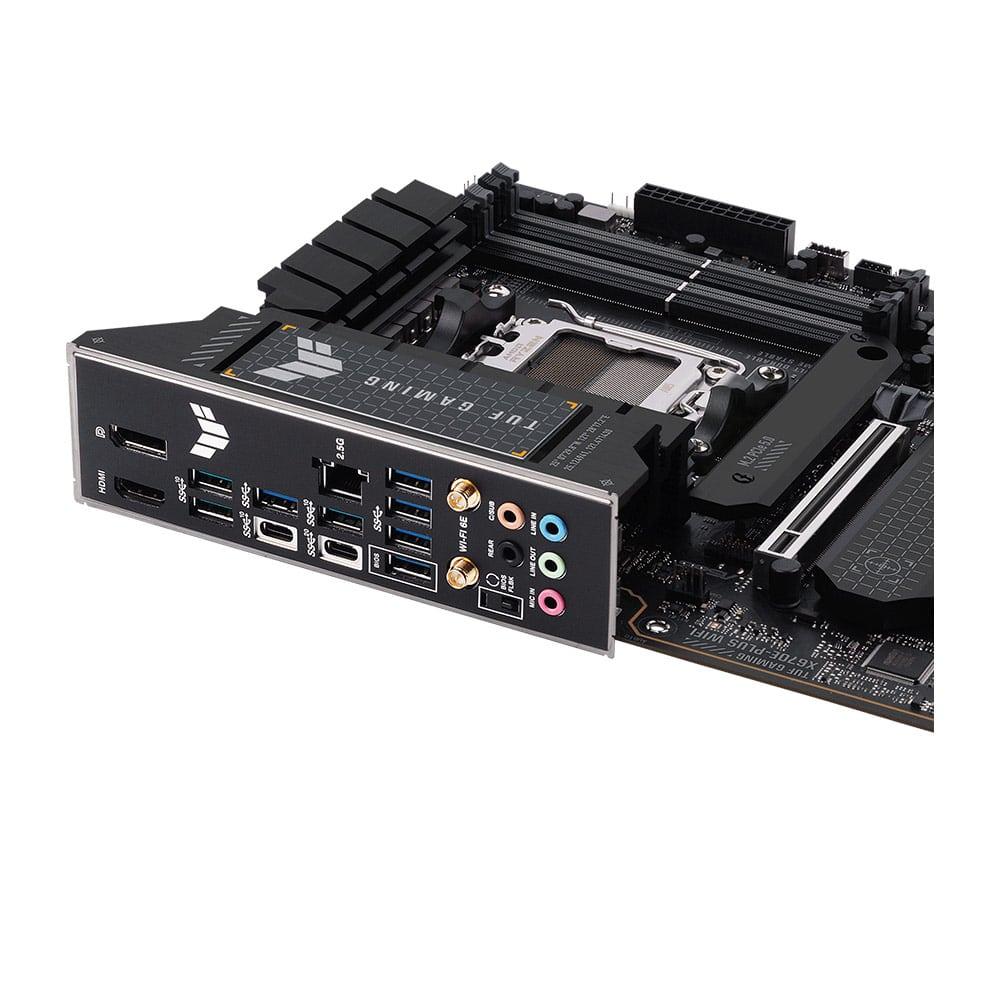

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header Power related 1 x 24-pin Main Power connector USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) Miscellaneous 3 x Addressable Gen 2 headers |
| Special Features | TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) ASUS Q-Design – M.2 Q-Latch ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button AURA Sync – AURA RGB header |
| Software Features | ASUS Exclusive Software Armoury Crate UEFI BIOS ASUS EZ DIY |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna Documentation 1 x TUF certification card |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
