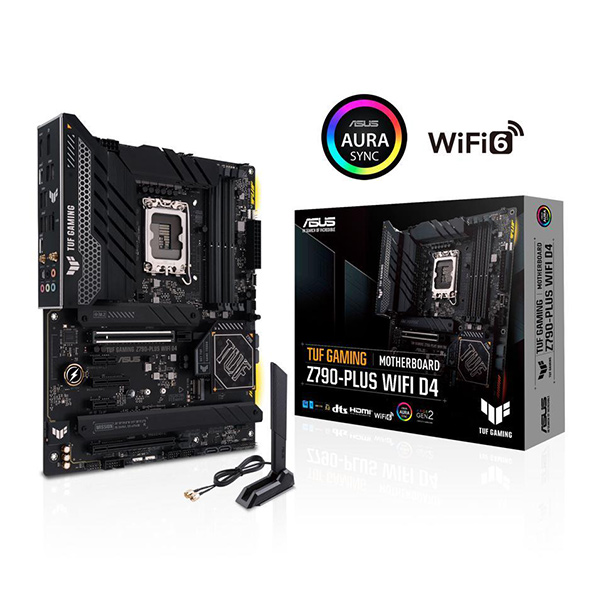

Asus TUF Gaming Z790-PLUS Wifi D4 Motherboard

30,589 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

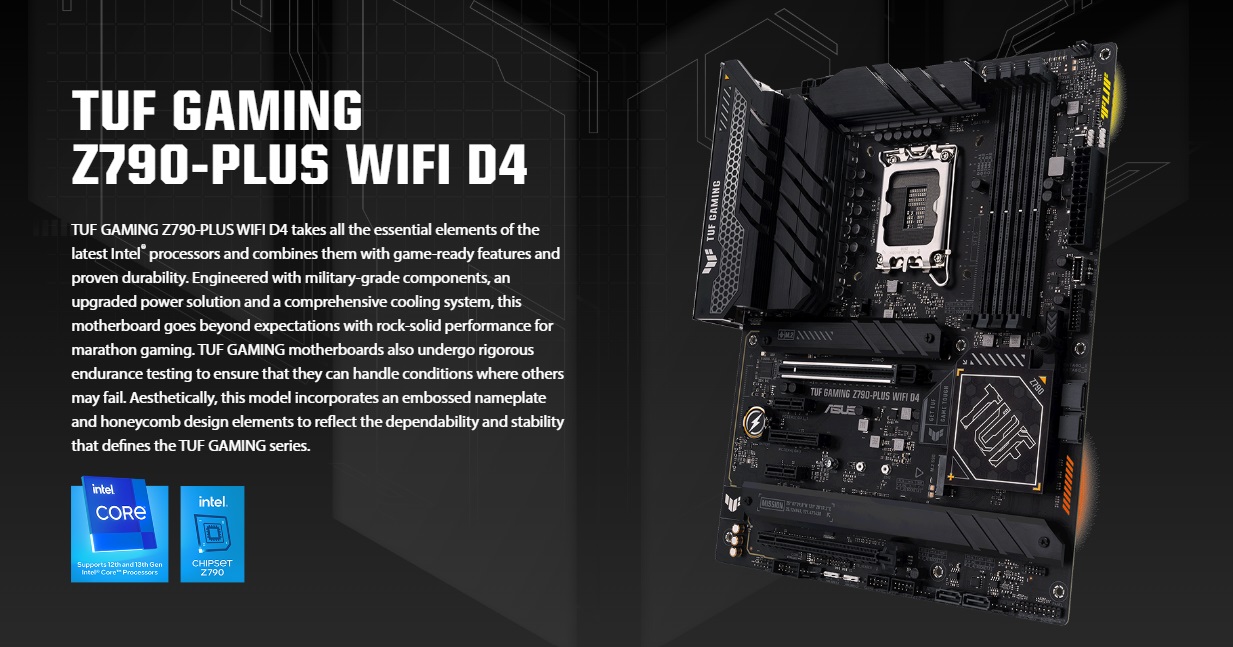

Asus TUF Gaming Z790-PLUS Wifi D4 Motherboard

Overview:

INTELLIGENT CONTROL
The Asus TUF Gaming Z790-PLUS Wifi D4 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

AI Cooling II
Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate
The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the Asus TUF Gaming Z790-PLUS Wifi D4 is the perfect foundation for your next Intel battle rig.

DrMOS Power Stages
16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

8+4 Pin ProCool Power Connectors
Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM Overclocking Performance
DDR4 OC 5333
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

PCIe 4.0 Support
The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Cooler By Design
The TUF GAMING Z790-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

Comprehensive Fan Controls
Asus TUF Gaming Z790-PLUS Wifi D4 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.

Connectivity
The TUF-GAMING Z790-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.

EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

IMMERSIVE GAMING
Asus TUF Gaming Z790-PLUS Wifi D4 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.

Realtek 7.1 Channel Audio
S1220A Codec
The Asus TUF Gaming Z790-PLUS Wifi D4 series utilizes an audio codec designed in close collaboration with Realtek — the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Outshine The Competition
A well-tuned system deserves a matching aesthetic. The Asus TUF Gaming Z790-PLUS Wifi D4 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.

Specifications:

CPUIntel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel® Z790 Chipset
Memory4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion SlotsIntel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
StorageTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth®Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USBRear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
AudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™  header
Special FeaturesASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Software FeatruresASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Operating SystemWindows® 11, Windows® 10 64-bit
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Dimension
Product (mm)_ L*W*H305mm*244mm*49mm
Color Box (mm)_ L*W*H340*275*70mm
Weight
Motherboard only1.3274 kg
Full package2.1377 kg

Additional information

Weight5 kg
Brand

Asus

EAN/UPC

4711081941095

Socket

LGA1700

Chipset

Z790

Form Factor

ATX

Platfrom

Intel

Memory Slot Type

DDR4

Available Models

TUF-GAMING-Z790-PLUS-WIFI-D4

Memory Slot

4 Slot
