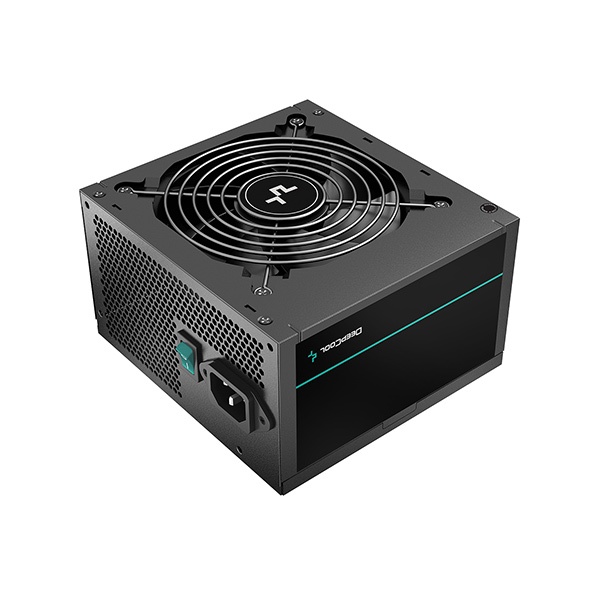

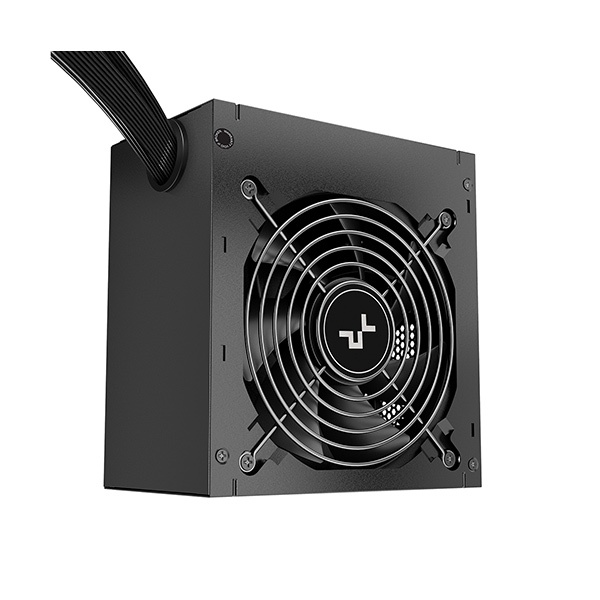

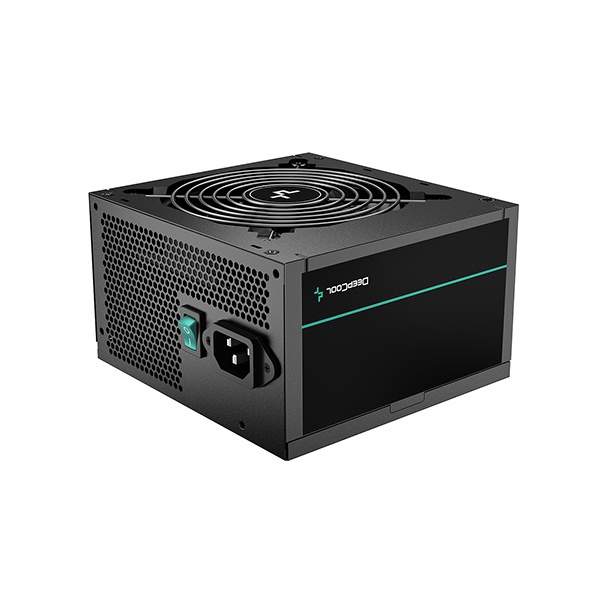

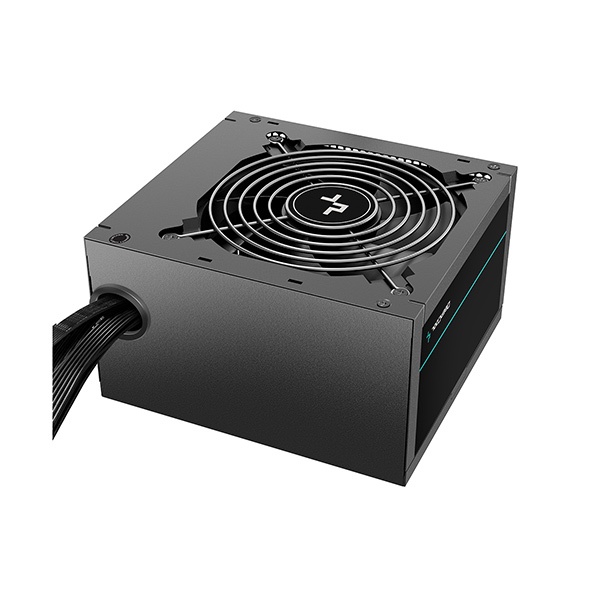

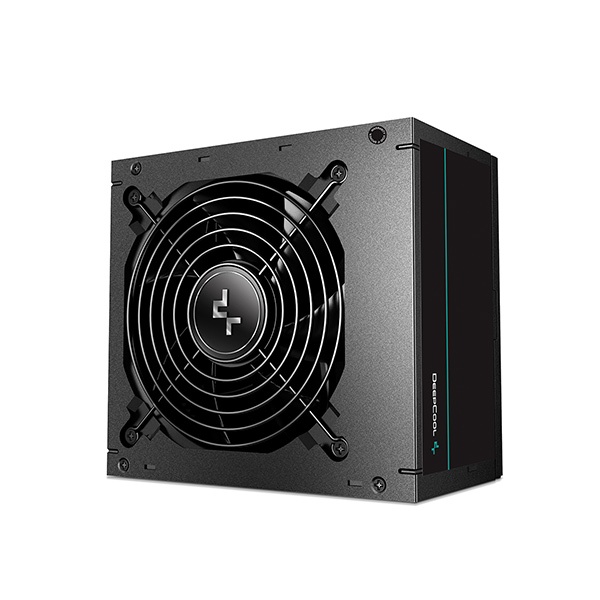

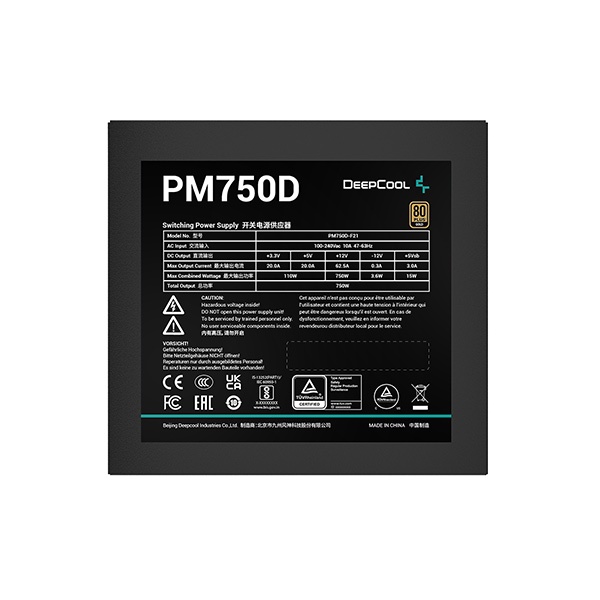

Deepcool PM750D 750W 80 Plus Gold Power Supply
Features :
- Active PFC + Full Bridge SRC LLC + DC to DC converter, Japanese Bulk Capacitors, suitable for high wattage PC Power Supplies
- PWR_OK (T3) timing under 150ms as required by Intel PSU Design Guide v1.43
- 60% Dynamic Load on +12V rail ensures voltage stability
- Compliant with the EU ErP 2014 regulations for 5Vsb rail for energy saving measures
- Black flat cables for easier system building and cable routing
- Three independent PCIe interfaces to support high performance GPUs
- 5 Year Warranty
Overview :
80 PLUS GOLD CERTIFIED
Deepcool PM750D 750W guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.
QUALITY TOPOLOGY
For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.
BUILT TO SPEC
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.
ENOUGH POWER TO GO AROUND
The Deepcool PM750D 750W features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.
EFFICIENCY THROUGHOUT
The Deepcool PM750D 750W series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.
PEACE OF MIND
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP.
Specifications :
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |

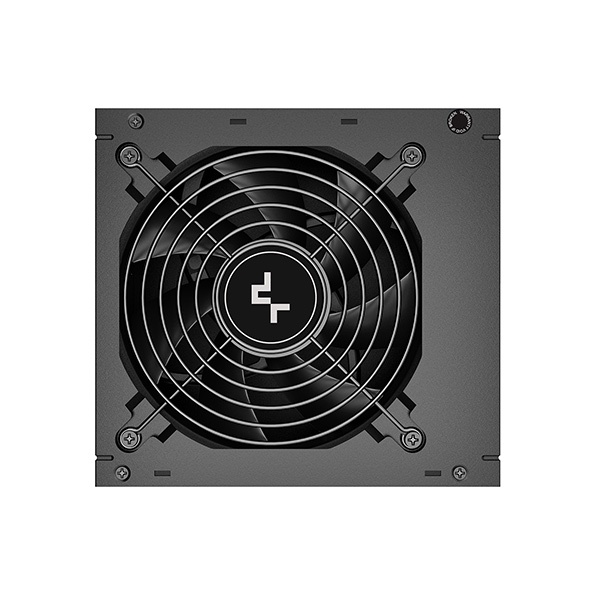

| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| EAN | 6933412709541 |
| P/N | R-PM750D-FA0B-US |
| Warranty | 5 Years |
