Fractal Design Define 7 Compact Solid Mid Tower White Cabinet
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
- Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
- Fits GPUs up to 360 mm with a 240 mm radiator in the top
- Top panel effortlessly swaps from solid steel to filtered ventilation

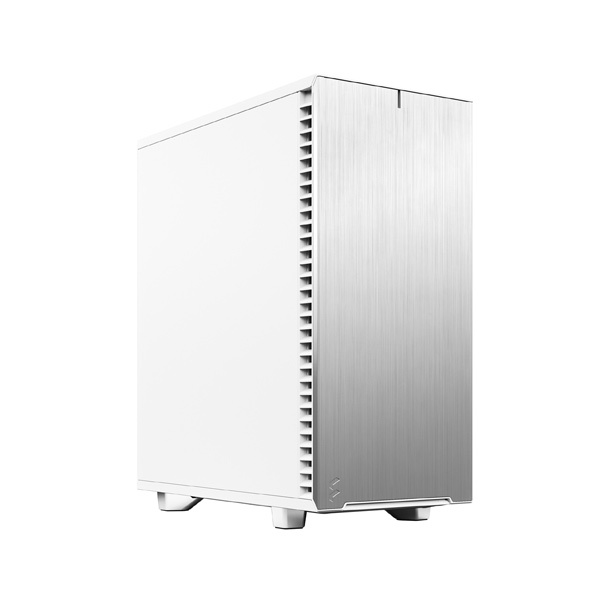

A cleaner look

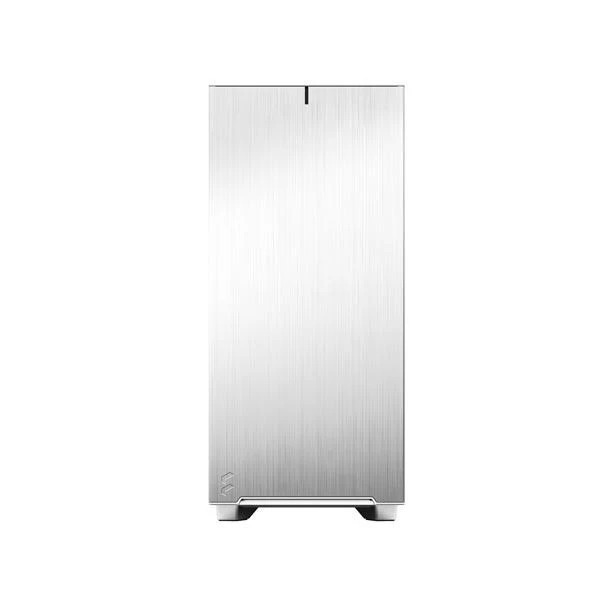

Brushed aluminum front and interchangeable side panels give a very clean look

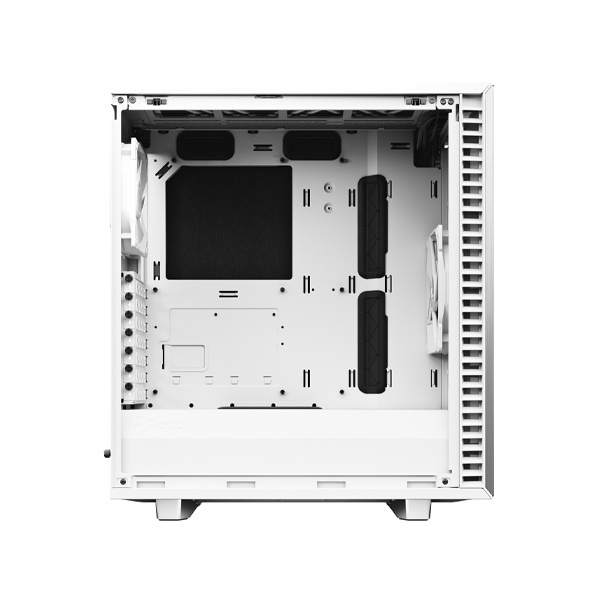

Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm
- 1 x 120 mm and 1 x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

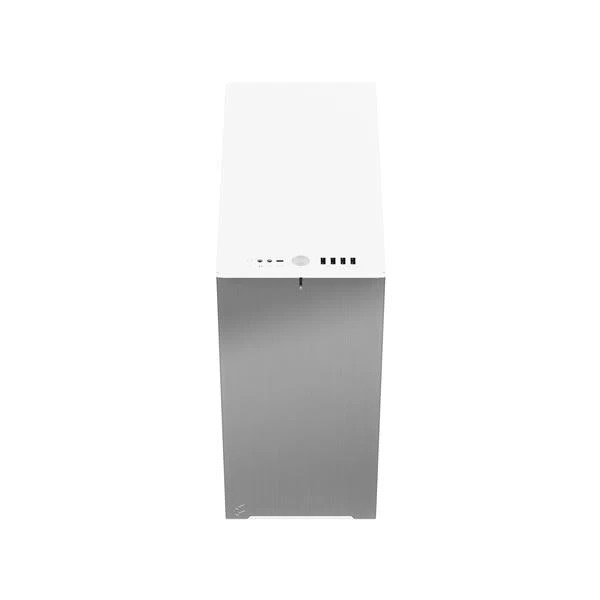

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

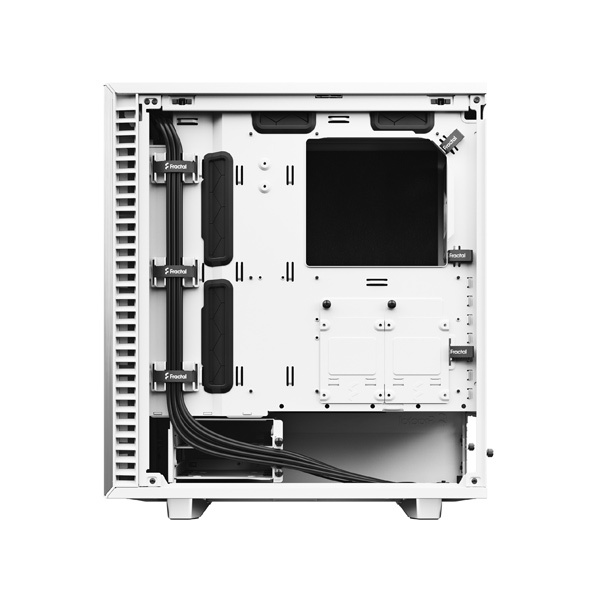

Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate
More in store
A pair of SSDs are easily mounted straight on the PSU shroud
Front, top and base
Easy-to-clean high airflow nylon filters

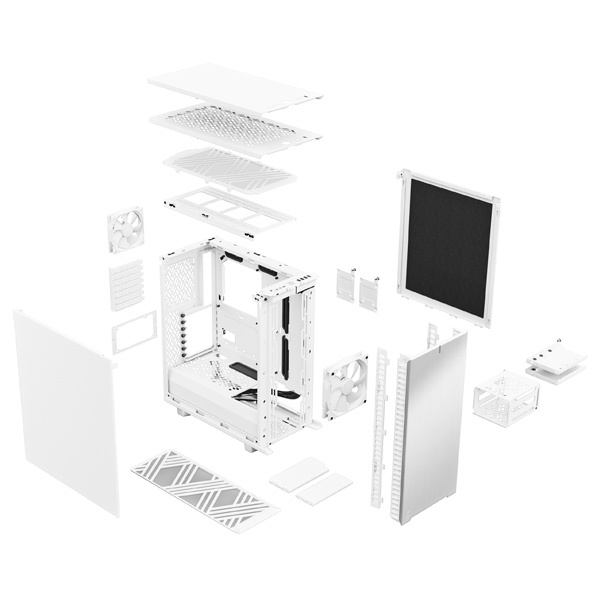

Open access
Remove the entire top to build and route with zero hindrance.
Specifications
| Product Code | FD-C-DEF7C-05 |
| 3.5″/2.5″ Universal drive brackets | 2 |
| Dedicated 2.5″ drive brackets | 2 trays included, 4 positions total |
| Expansion slots | 7 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7 x 120 or 4 x 140 mm and 2 x 120 mm |
| Front fan | 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included) |
| Top fan | 2 x 120 or 2 x 140 mm |
| Rear fan | 1 x 120 mm, (1 x Dynamic X2 GP-12 included) |
| Bottom fan | 1 x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, 2 x front, full length bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | ATX / mATX / mITX |
| PSU max length | 200 mm (with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm (max 145 mm width) |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 427 x 210 x 474 mm |
| Case dimensions w feet/protrusions/screws | 415 x 210 x 451 mm |
| Net weight | 8.76 kg |
| Package dimensions (LxWxH) | 536 x 310 x 521 mm |
| Package weight | 11.04 kg |
| Volume | 39.3 liters |
| Warranty | 2 Years |
