Fractal Design Vector RS Dark Tempered Glass E ATX Mid Tower Black Cabinet
Command attention

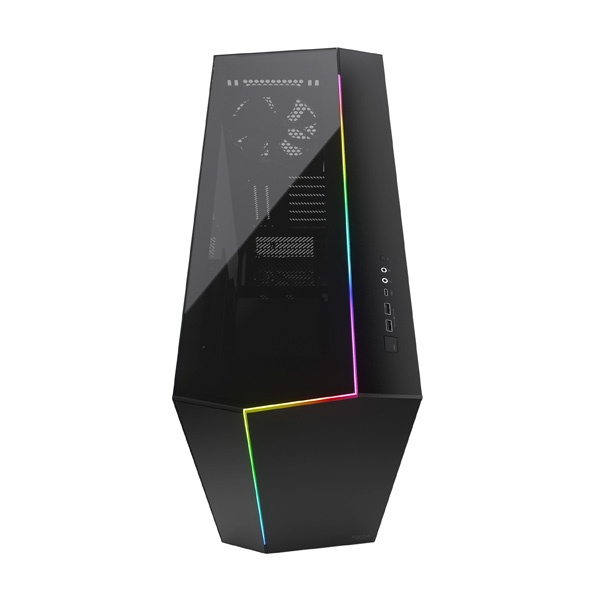

Sharp angles, uncompromising design and a no-nonsense attitude combine to create a case quite unlike any built before it. An expressive ARGB strip wraps the front and top in a synchronized, continuous run, customizable via your RGB motherboard or via the included Adjust R1 controller.
The counter-angled air intakes are designed to trap noise without restricting airflow, giving you a case that breathes like it’s open – but sounds like it’s closed.But looks only go so far. What about the inside? Storage is a non-issue – with eleven HDD and four SSD positions (six + two brackets included), the Vector RS is ready to take on any build you want to throw at it. An intelligent modular layout adapts to maximize airflow, water-cooling, and component headroom to realize every ounce of potential in your build.
The TG top panel easily swaps with the included ventilated steel cooling bracket to shift Vector’s affinity from ultimate display piece to performance powerhouse with nine total fan positions. With customizable effects, adaptable layout, and interchangeable elements, Vector becomes what you want it to be: The perfect showcase for your system.
Key features

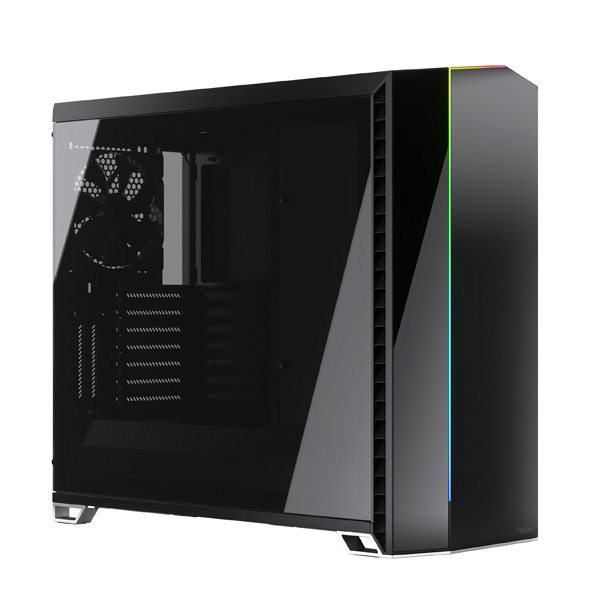

• Tinted, bolt-free tempered glass on three sides
• Interchangeable top panel easily converts between tempered glass and filtered ventilation
• Counter-angled intake vents designed to trap noise with minimal airflow resistance

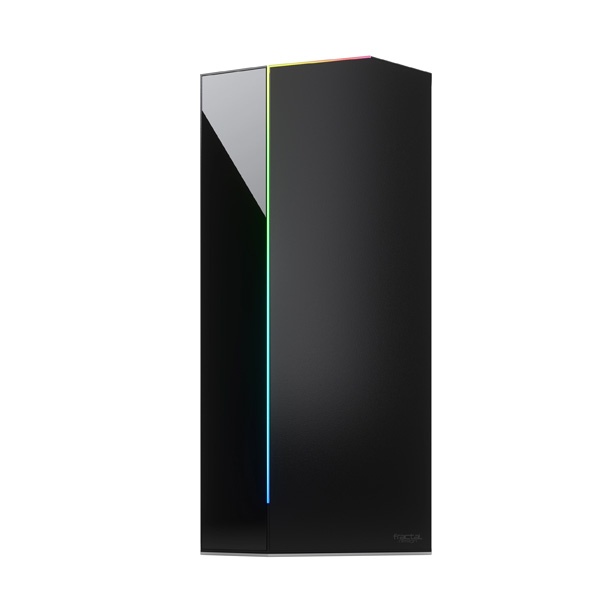

• Customizable ARGB LED effects wrapping the top and front panels in a synchronized, continuous span
• Set colors and effects via standard 5V RGB motherboard connection or included Adjust R1 controller
• Six HDD and two SSD mounts included with a total of 11 HDD and 4 SSD positions (additional Type A brackets sold separately)
• Three pre-installed Fractal Design Dynamic X2 GP-14 140 mm fans for optimal airflow
• Up to nine fan positions with clear airflow paths for maximum cooling capacity
• Extensive water cooling support with room for radiators up to 420 mm in the top, 360 mm up front and 280 mm in the base
• Ventilated PSU shroud conceals cables and provides additional SSD mounting options

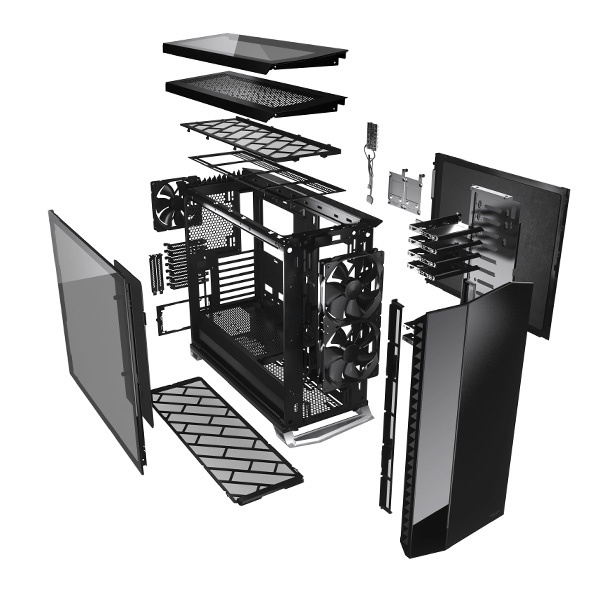

• Modular design easily converts from a storage-focused standard layout to a cooling-centric open layout
• Nexus+ fan hub manages up to nine fans via your motherboard
• Vertical 2.5 slot GPU support via Flex vertical PCIE riser (sold separately)
• USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Attractive aesthetics
- Tinted, bolt-free tempered glass on three sides
- Top panel easily converts between tempered glass and filtered ventilation
- Customizable ARGB LED effects wrapping top and front panels in a synchronized span
- Control via standard 5V RGB motherboard connection or included Adjust R1 controller
- Compatible with standard 5V RGB motherboard connectors and software
- Push-to-lock latching for quick side panel access on both sides
Extensive water-cooling support
- Front radiator: Up to 360/280 mm
- Top radiator: Up to 360/420 mm (with cooling bracket installed)
- Rear radiator: 120 mm
- Bottom radiator: Up to 240/280 mm
Dual layout design
- Six HDD and two SSD mounts included with a total of 11 HDD and 4 SSD positions (additional Type A brackets sold separately)

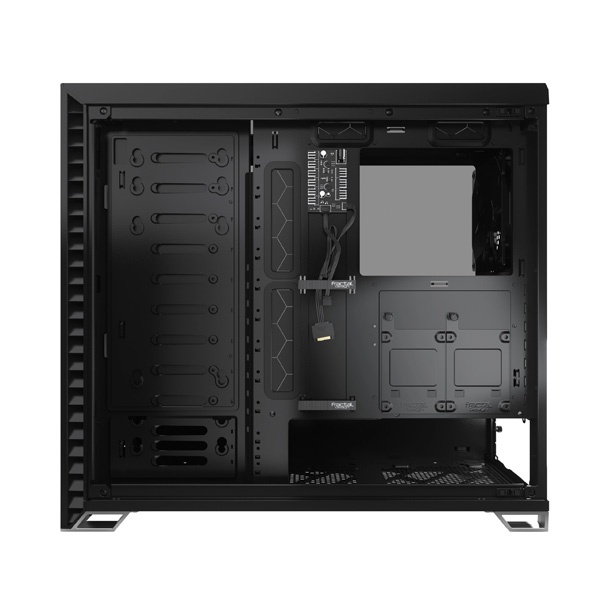

- Modular design easily converts from a storage-focused standard layout to a cooling-centric open layout
- Six vibration damped 3.5” HDD trays and two 2.5” SSD brackets included
- Universal HDD/SSD trays can be independently repositioned to suit your configuration
A new cooling angle
- Designed to trap noise with minimal airflow resistance

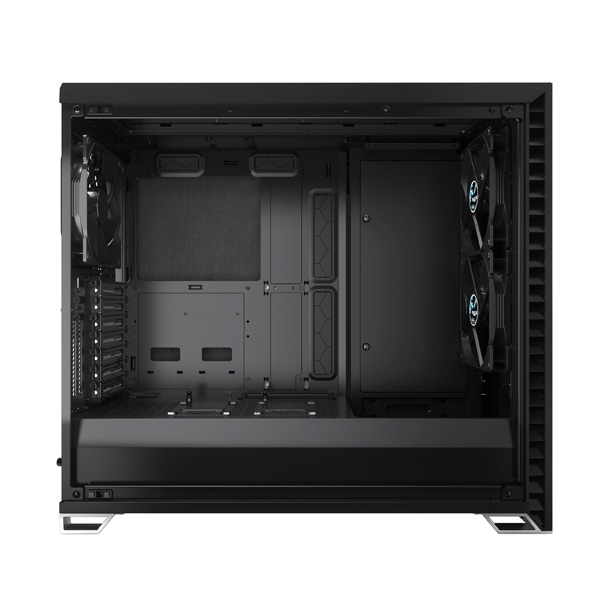

- Three pre-installed Fractal Design Dynamic X2 GP-14 140 mm fans for optimal airflow
- Up to nine fan positions with clear airflow paths for maximum cooling capacity
- Nexus+ fan hub manages up to nine fans via your motherboard
- High-density industrial sound damping bitumen on the right-hand side panel
- Easy-to-clean high-airflow nylon filters on the front, top and base
Specifications
| Product Code | FD-C-VER1A-01 |
| 3.5″/2.5″ Universal drive brackets | 6 included, 11 positions total |
| Dedicated 2.5″ drive brackets | 2 included, 4 positions total |

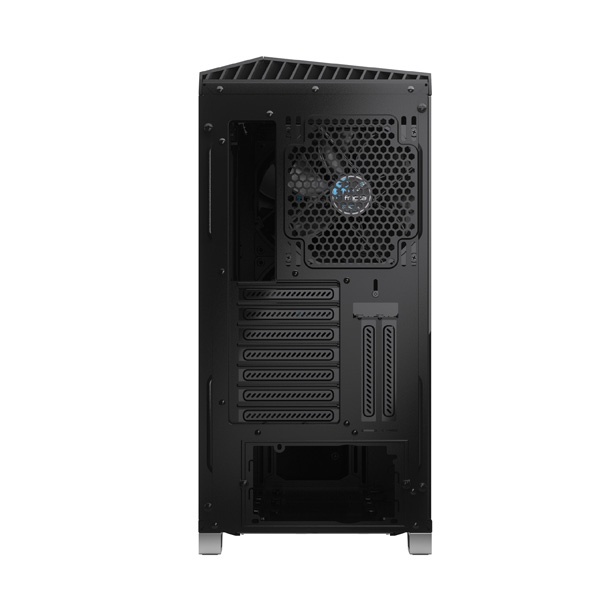

| Expansion slots | 7 + 2 vertical |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio |
| Total fan mounts | 9 (6 + 3 with included bracket) |
| Front fan | 3 x 120/140 mm (2 x Dynamic X2 GP-14 included) |
| Top fan | 3 x 120/140 mm (with cooling bracket installed) |
| Rear fan | 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Bottom fan + PSU – Front fans – Top panel (with cooling bracket installed) |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Additional Lighting | Integrated front/top panel ARGB |
| Captive thumbscrews | HDD brackets, SSD brackets |

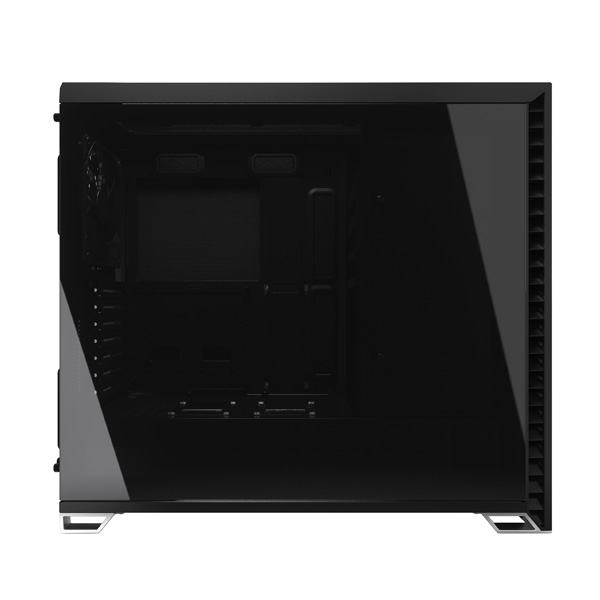

| Left side panel | Dark tint tempered glass |

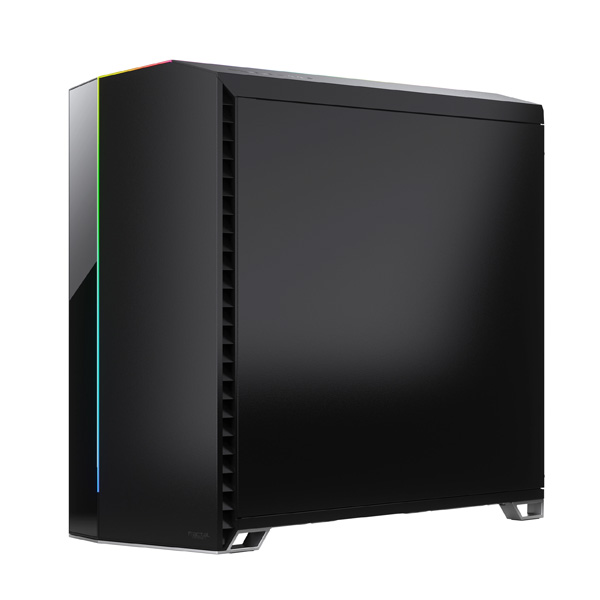

| Right side panel | Steel with bitumen sound damping |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | EATX (up to 285 mm wide) / ATX / mATX / ITX |
| PSU max length | 300 mm |
| GPU max length | 440 mm with front fan installed |
| CPU cooler max height | 185 mm |
| Front radiator | 120/240/360 mm – 140/280 mm |
| Top radiator | With cooling bracket installed: – 120/240/360 mm – 140/280/420 mm (max 35 mm motherboard component height) |
| Rear radiator | 120 mm |
| Bottom radiator | 120/240 mm, 140/280 mm |
| Cable routing space | 23 mm |
| Vertical GPU Support (with Flex VRC-25) | 31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Dimensions | |
| Case dimensions (LxWxH) | 552 x 233 x 498 mm |
| Case dimensions w/o feet/protrusions/screws | 540 x 233 x 475 mm |
| Net weight | 12.64 kg |
| Package dimensions (LxWxH) | 568 x 328 x 673 mm |
| Package weight | 13.98 kg |
| Warranty | 2 Years |
