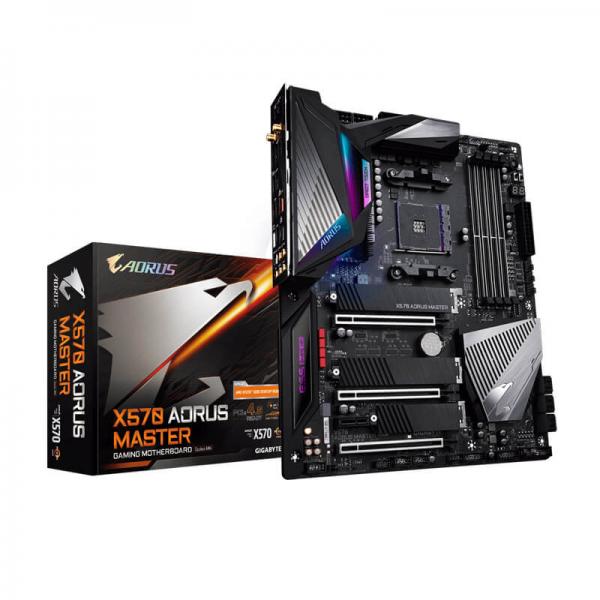

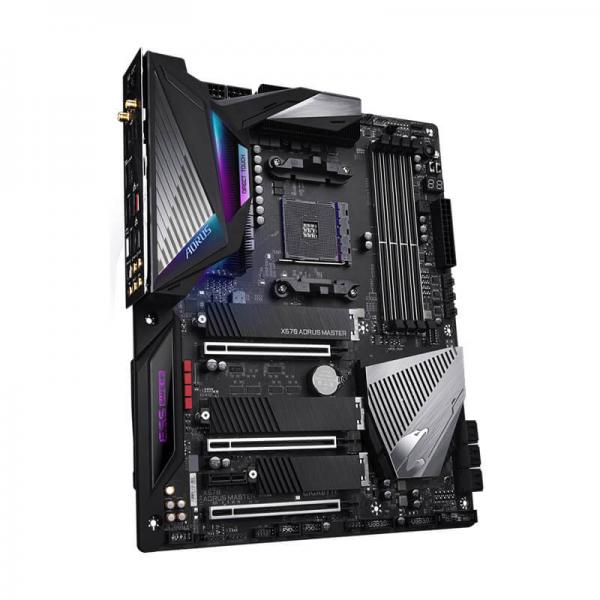

Gigabyte X570 Aorus Master Wifi Motherboard

Gigabyte X570 Aorus Master Wifi Motherboard :

Features :

• Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
• Intel® WiFi 6 802.11ax 2T2R & BT 5
• Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors
• Realtek^® 2.5GbE + Intel^® Gigabit LAN with cFosSpeed
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Front & Rear USB 3.2 Gen2 Type-C™ Headers
• Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
• Integrated Base Plate & I/O Shield Armor
• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Specifications :

• CPU
  1. AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. AMD X570
• Memory
  1. AMD Ryzen™ 5000 series processors:
     Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  2. 3rd Generation AMD Ryzen™ processors:
     Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
     Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
     * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Audio
  1. Realtek^® ALC1220-VB codec
     * The front panel line out jack supports DSD audio.
  2. ESS SABRE9118 DAC chip
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
• LAN
  1. 1 x Intel^® GbE LAN chip (10/100/1000 Mbit) (LAN1)
  2. 1 x Realtek^® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)
• Wireless Communication module
  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots

  Integrated in the CPU (PCIEX16/PCIEX8):

  1. 3rd Generation AMD Ryzen™ processors:
     1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
     1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
  2. 2nd Generation AMD Ryzen™ processors:
     1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
     1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
     1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

  Integrated in the Chipset (PCIEX4/PCIEX1):

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
     * For 3rd Generation AMD Ryzen™ processors only.
  2. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0
     * For 3rd Generation AMD Ryzen™ processors only.
• Multi-Graphics Technology
  1. 1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies

  Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

  For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

• Storage Interface

  Integrated in the CPU (M2A_SOCKET):

  1. 3rd Generation AMD Ryzen™ processors:
     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
  2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

  Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
     * For 3rd Generation AMD Ryzen™ processors only.
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
     * For 3rd Generation AMD Ryzen™ processors only.
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, and RAID 10
     * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
• USB

  Integrated in the CPU:

  1. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
     * For 3rd Generation AMD Ryzen™ processors only.
  2. 2 x USB 3.2 Gen 1 ports on the back panel

  Integrated in the Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

  Chipset+USB 2.0 Hub:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 3 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x noise detection header
  17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  18. 2 x temperature sensor headers
  19. 1 x power button
  20. 1 x reset button
  21. 2 x BIOS switches
  22. 1 x Clear CMOS jumper
  23. Voltage Measurement Points

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

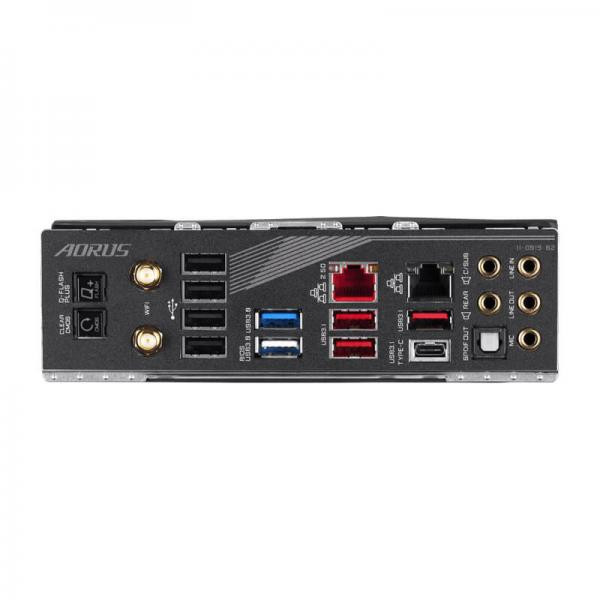

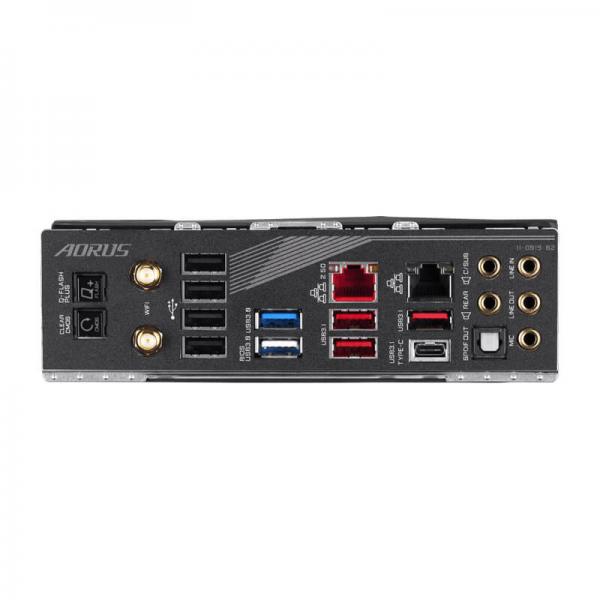

• Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  5. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
     * For 3rd Generation AMD Ryzen™ processors only.
  6. 1 x USB 3.2 Gen 2 Type-A port (red)
  7. 2 x USB 3.2 Gen 1 ports
  8. 4 x USB 2.0/1.1 ports
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  8. Noise detection
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     RGB Fusion
     Smart Backup
     System Information Viewer
     USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
