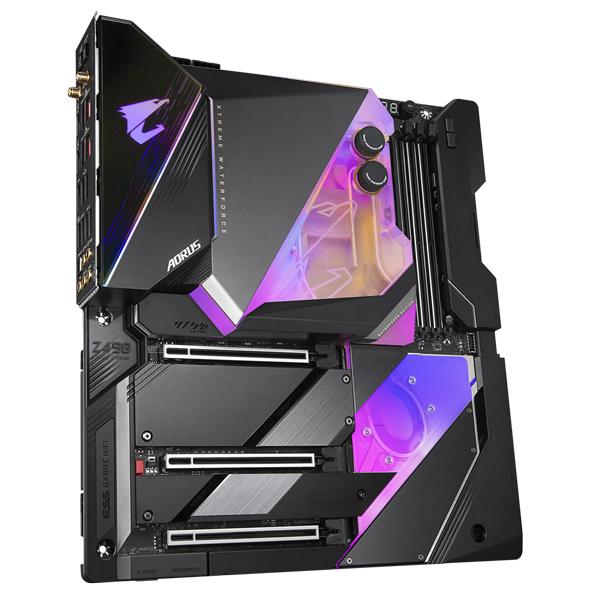

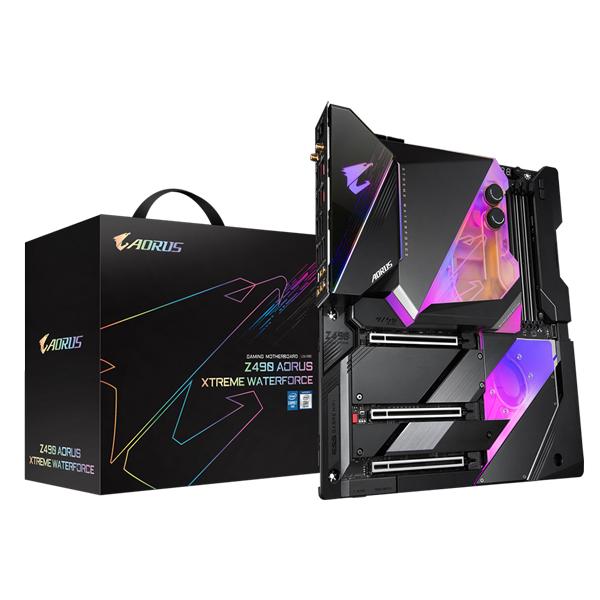

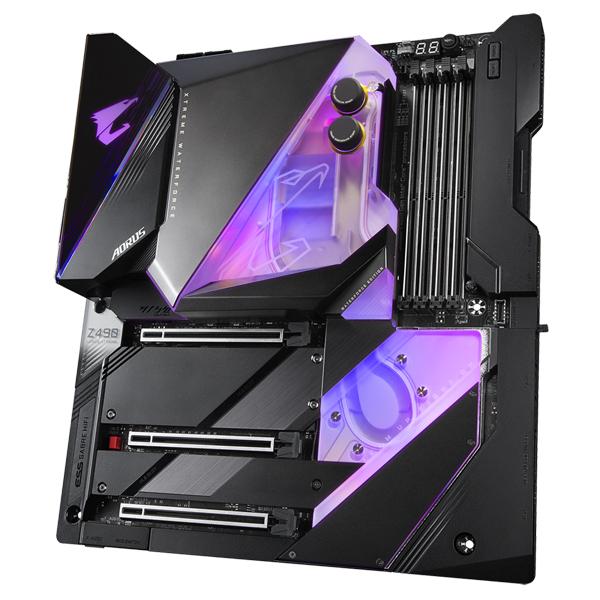

Gigabyte Z490 Aorus Xtreme Waterforce Motherboard

Gigabyte Z490 Aorus Xtreme Waterforce Motherboard :

Features :

Specifications :

• CPU
  1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1200 package
  2. L3 cache varies with CPU

  (Please refer to “CPU Support List” for more information.)

• Chipset
  1. Intel^® Z490 Express Chipset
• Memory
  1. Intel^® Core™ i9/i7 processors:
     Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller:

  1. 2 x Intel^® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
     * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.)
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.

  Maximum shared memory of 512 MB

• Audio
  1. Realtek^® ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
  2. Realtek^® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
  3. Support for DTS:X^® Ultra
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
• LAN
  1. 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)
  2. 1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
• Wireless Communication module

  Intel^® Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.

  (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
  Supports up to ASPM L1.2 power management protocols.

• Multi-Graphics Technology
  1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to “1-9 Internal Connectors,” for the installation notices for the PCIEX4, M.2, and SATA connectors.
  6. Intel^® Optane™ Memory Ready

  M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

• USB

  Chipset+Intel^® Thunderbolt™ 3 Controller:

  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

  Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+2 USB 2.0 Hubs:

  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 1 x water cooling kit CPU LED header (LED_CPU)
  6. 1 x water cooling kit Chipset LED header (LED_PCH)
  7. 4 x system fan headers
  8. 2 x system fan/water cooling pump headers
  9. 1 x noise detection header
  10. 2 x addressable LED strip headers
  11. 2 x RGB LED strip headers
  12. 6 x SATA 6Gb/s connectors
  13. 3 x M.2 Socket 3 connectors
  14. 1 x front panel header
  15. 1 x front panel audio header
  16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  17. 1 x USB 3.2 Gen 1 header
  18. 1 x USB 2.0/1.1 header
  19. 2 x temperature sensor headers
  20. 1 x power button
  21. 1 x reset button
  22. 1 x OC button
  23. 2 x BIOS switches
  24. Voltage Measurement Points
• Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 2 x SMA antenna connectors (2T2R)
  4. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
  5. 4 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x HDMI port
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  8. Noise detection
• BIOS
  1. 2 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     RGB Fusion
     Smart Backup
     System Information Viewer
     USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. E-ATX Form Factor; 30.5cm x 27.1cm
