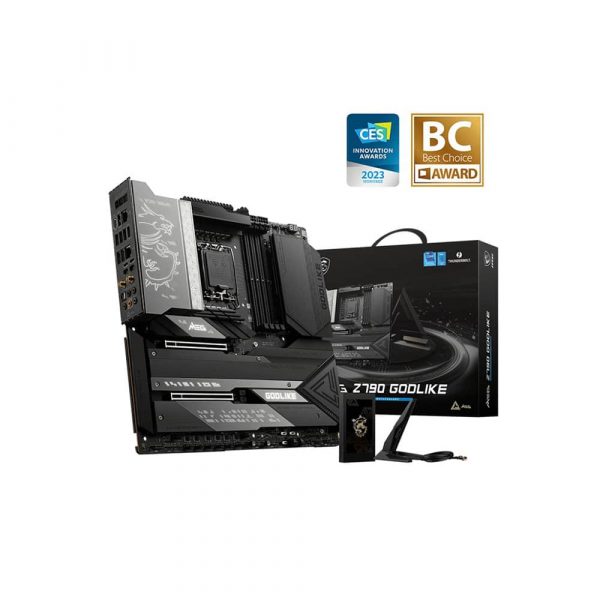

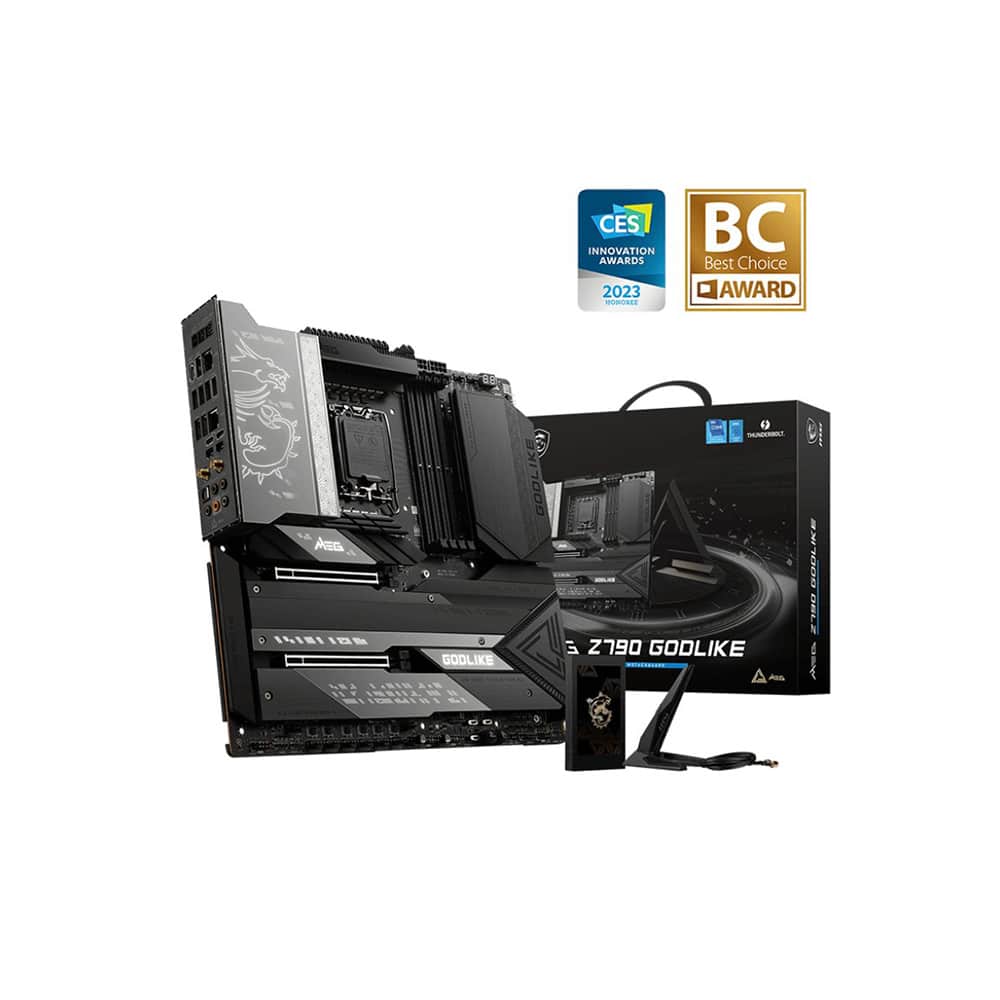

MSI MEG Z790 GODLIKE Intel 14th Gen LGA 1700 Socket Motherboard
Features:
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
- DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Overview :

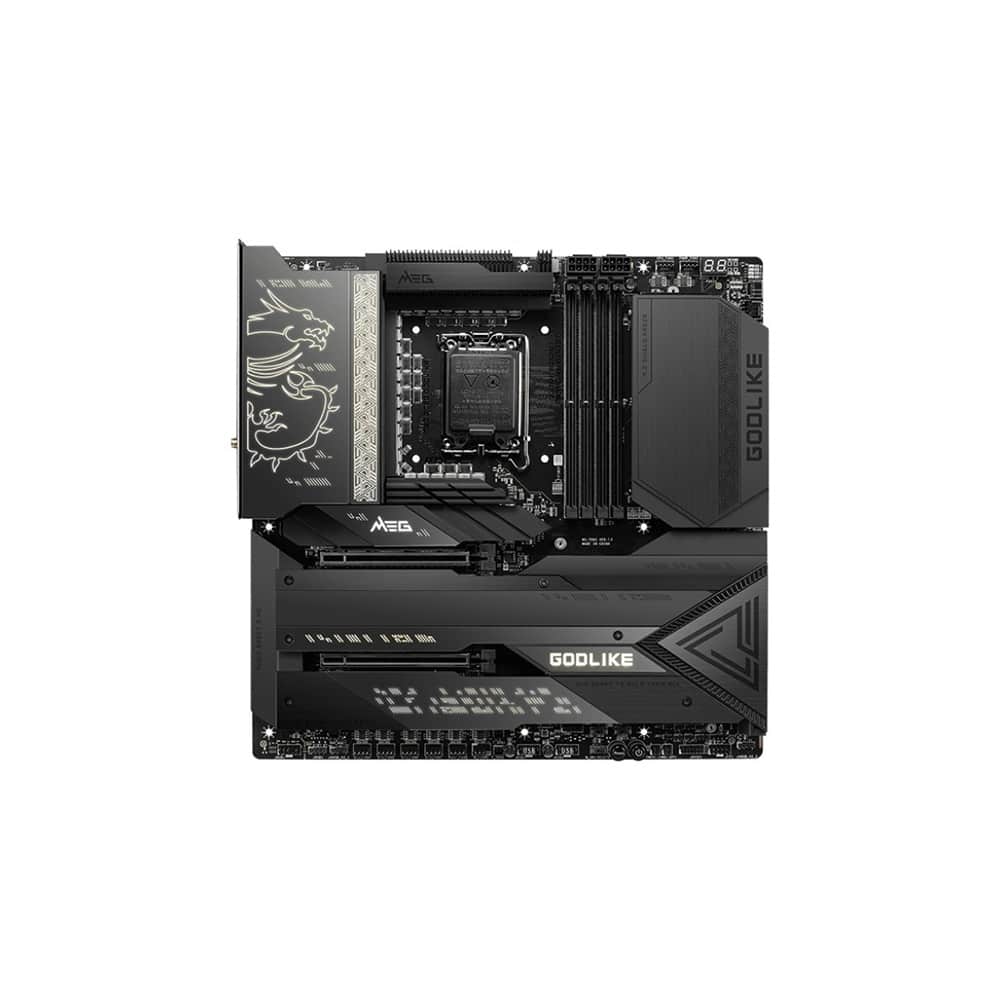

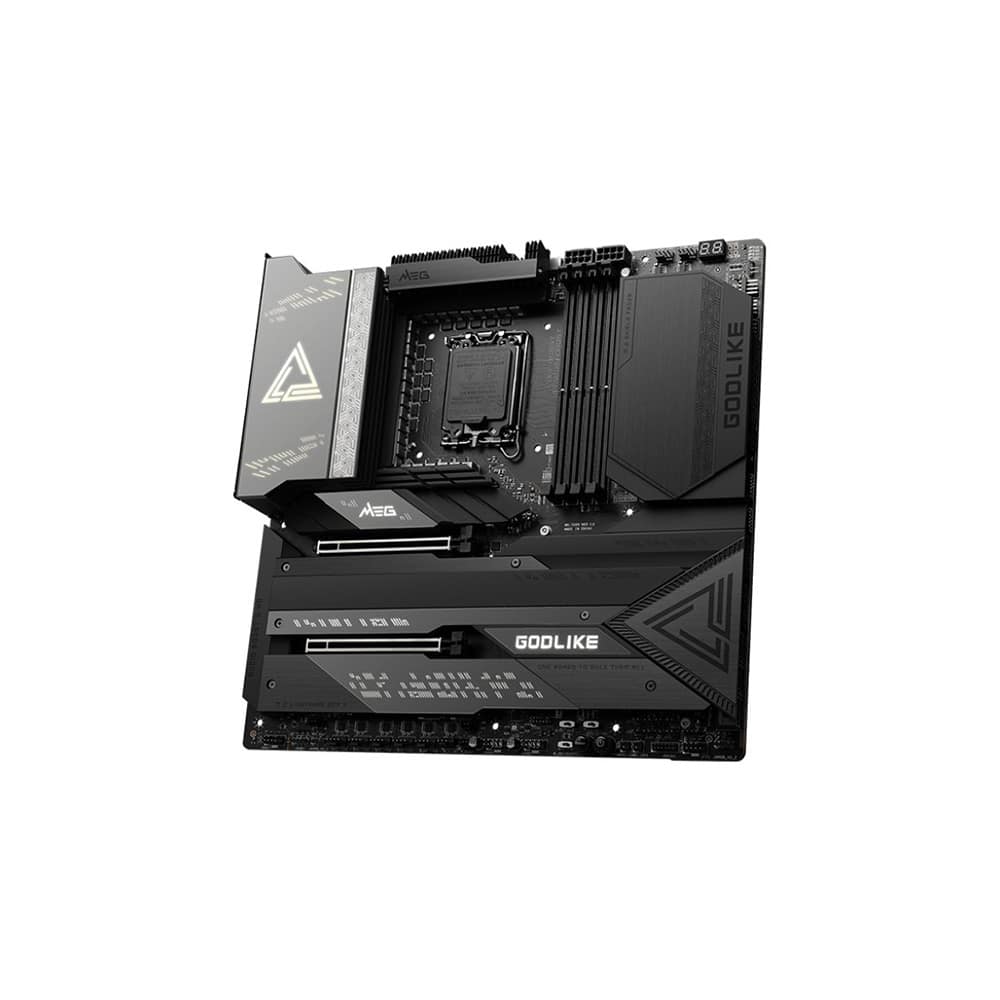

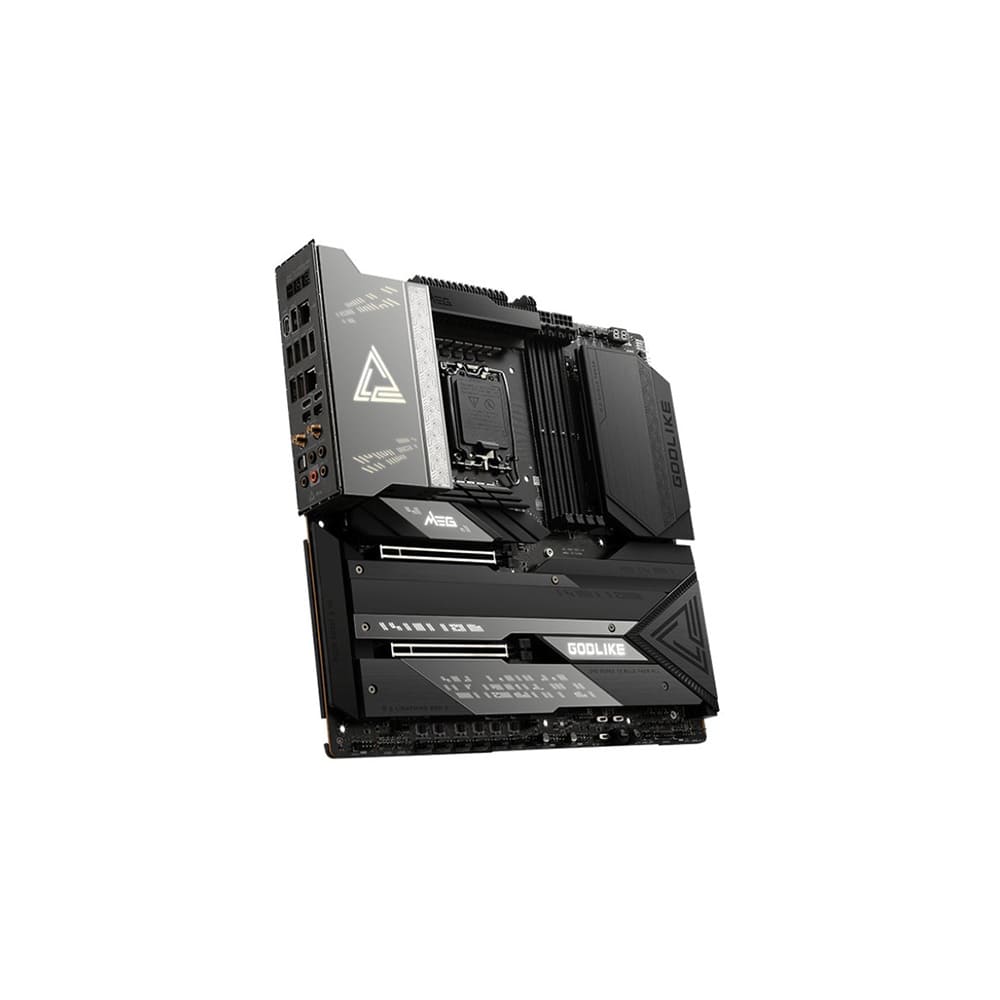

MSI MEG Z790 GODLIKE
Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry’s first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the 14th and 13th Gen Intel® Core processor and is ready to rule the tournament once again.
EXTREME THERMAL & POWER SOLUTION
The heat dissipation module is one of the biggest contributors to keeping MSI MEG Z790 GODLIKE efficient and cool. The flagship and exclusive cooling solution make it unnecessary for gamers to worry about temperature problems.
The premium power solution, superior layout design, advanced PCB material and enhanced tuning parameter provide the extreme performance and long-lasting system stability without any compromise.
LIGHTNING FAST STORAGE
Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.
Lightning Gen 5 M.2 solution delivers 12,311MB/s read speed and 11,507 write speed to meet the demanding hardcore users.
Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.
The patented magnetic M.2 Shield Frozr design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.
LATEST CONNECTIVITY
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
M-VISION DASHBOARD
The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- ILLUSION LIGHTING
MSI MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure, which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE, but also reinforce the DIY and MEG spirit.
- LATEST DDR5 MEMORY
Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining the dedicated SMT welding process and with MSI memory boost technology, the MSI MEG Z790 GODLIKE is ready to deliver world-class memory performance.
- LIGHTNING GEN 5
The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Specifications :
| Model | MEG Z790 GODLIKE |
| Chipset | INTEL Z790 |
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Thunderbolt | Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Expansion Slot | 2x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 7x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Marvell® AQC113CS-B1-C 10Gbps LAN Intel® 2.5Gbps LAN |
| Wireless / Bluetooth | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen 2×2 Type C V-check point |
| LED Feature | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

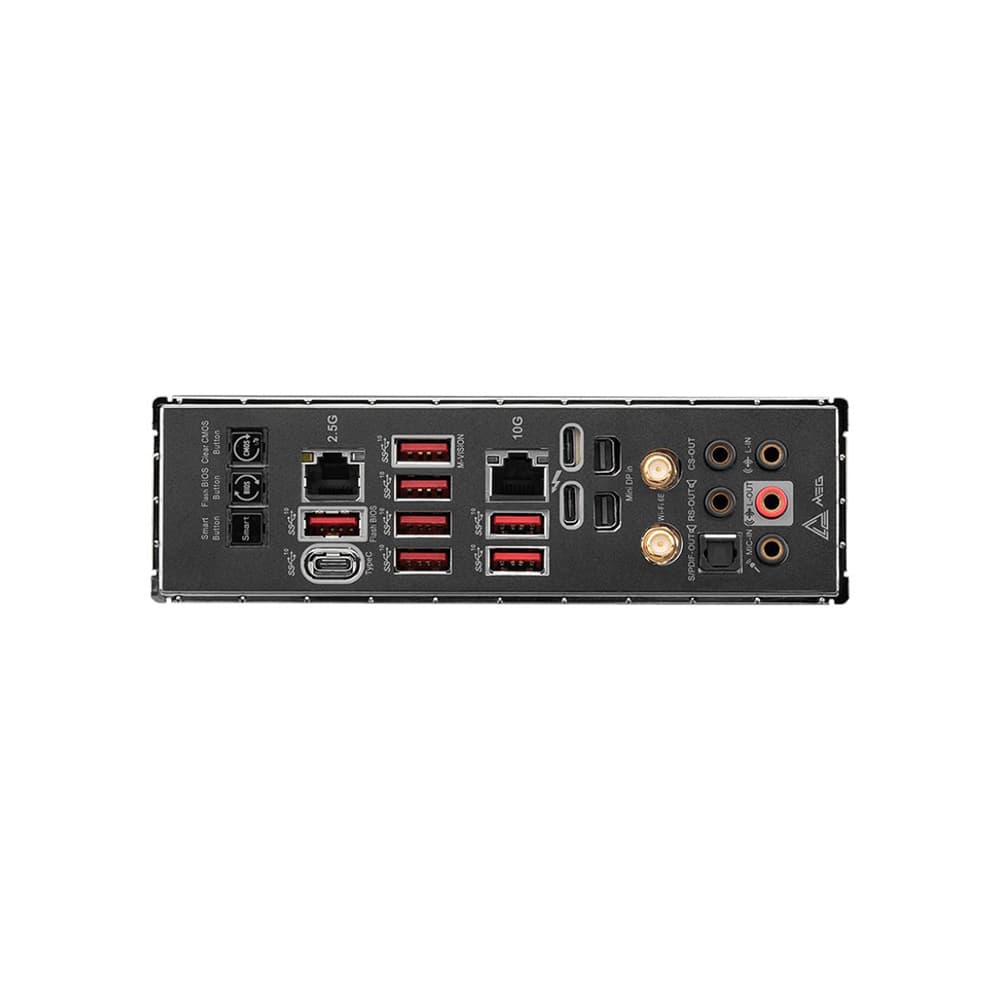

| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | E-ATX 304.8mmx310mm |
| Warranty | 3 Years |
