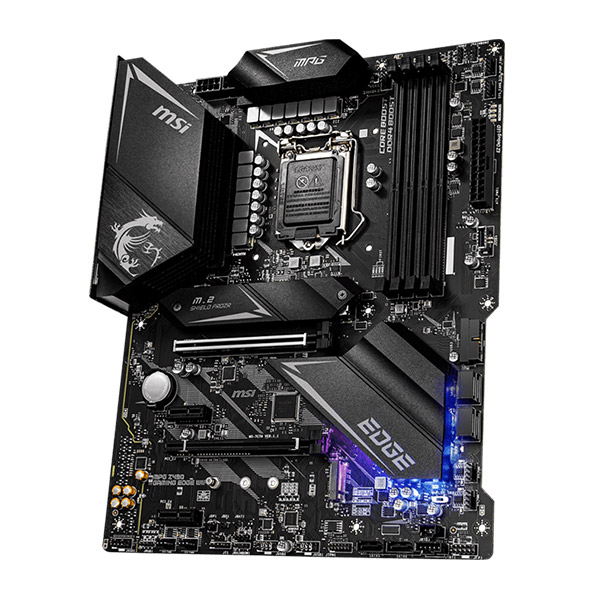

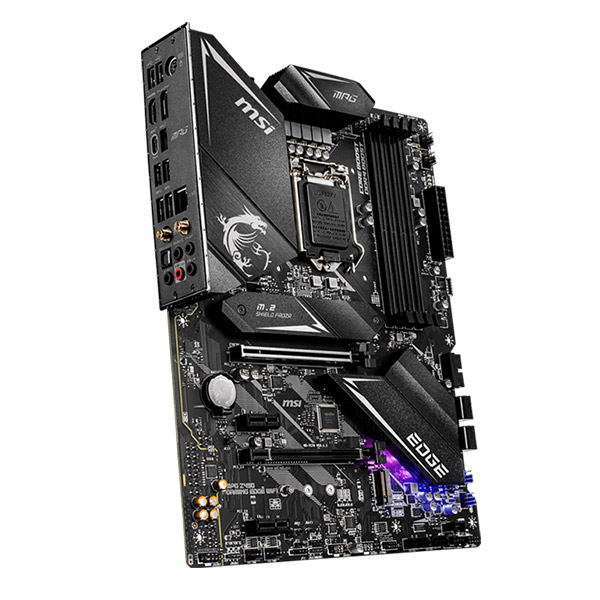

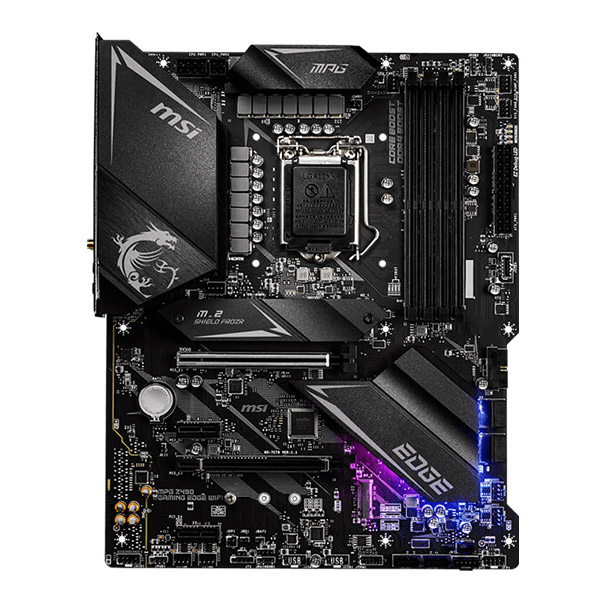

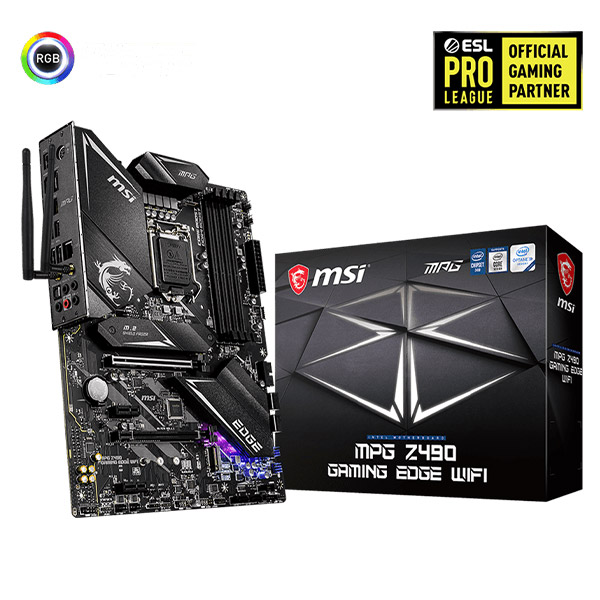

MSI MPG Z490 Gaming Edge WiFi INTEL 10TH GENERATION Z490 ATX LGA 1200 Socket Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
EZ LED Control
One button to control LED on/off easily
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and Aluminum Backplate ensure the extreme
performance with low temp.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat
dissipation, ready for breaking the world record!
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z490 Chipset |
| DDR4 MEMORY | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC1200 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
