MSI RTX 4070 Ventus 2X OC 12GB Graphics Card :
Features of GeForce RTX™ 4070 VENTUS 2X 12G OC :
- WITH DLSS 3
Get equipped for stellar gaming and creating with the MSI RTX 4070 Ventus 2X OC 12GB. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. - Boost Clock / Memory Speed
2505 MHz / 21 Gbps
12GB GDDR6X

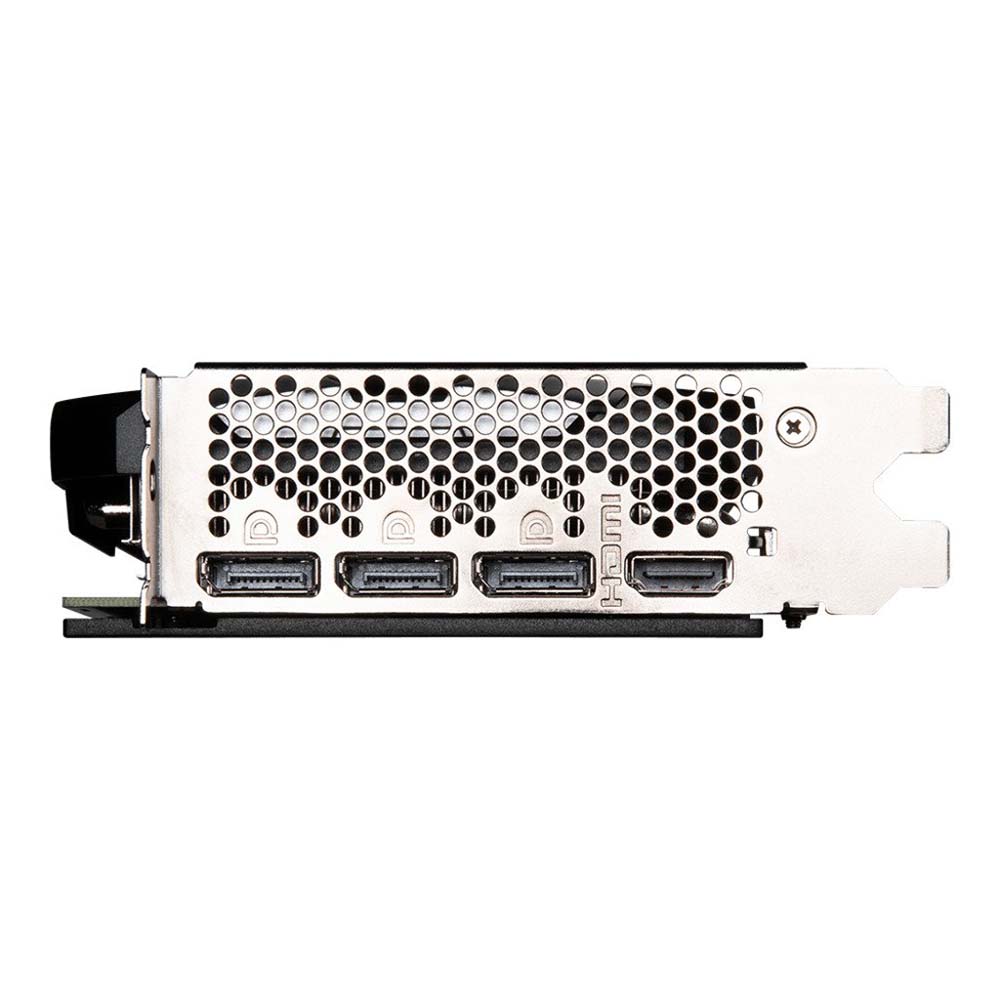

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) - Dual Fan Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise. - Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation. - MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Overview of MSI RTX 4070 Ventus 2X OC 12GB :
TAKE THE ESSENTIALS
MSI RTX 4070 Ventus 2X OC 12GB brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets MSI RTX 4070 Ventus 2X OC 12GB breeze through any task.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
- New Streaming Multiprocessors
Up to 2x performance and power efficiency - Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering - Third-Gen RT Cores
Up to 2x ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers

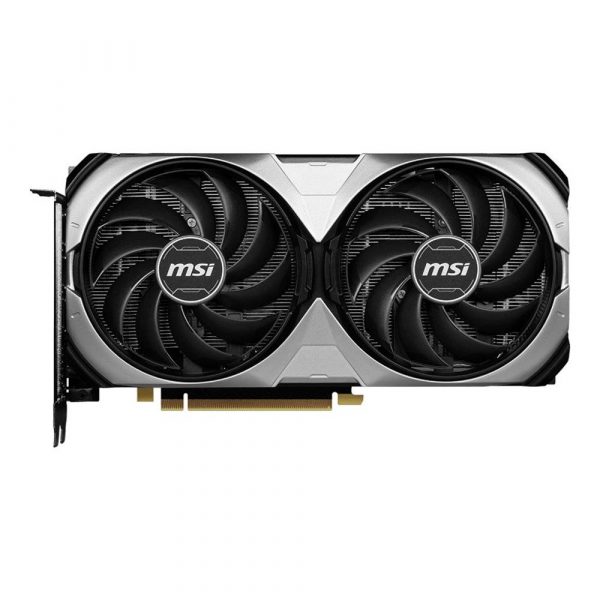

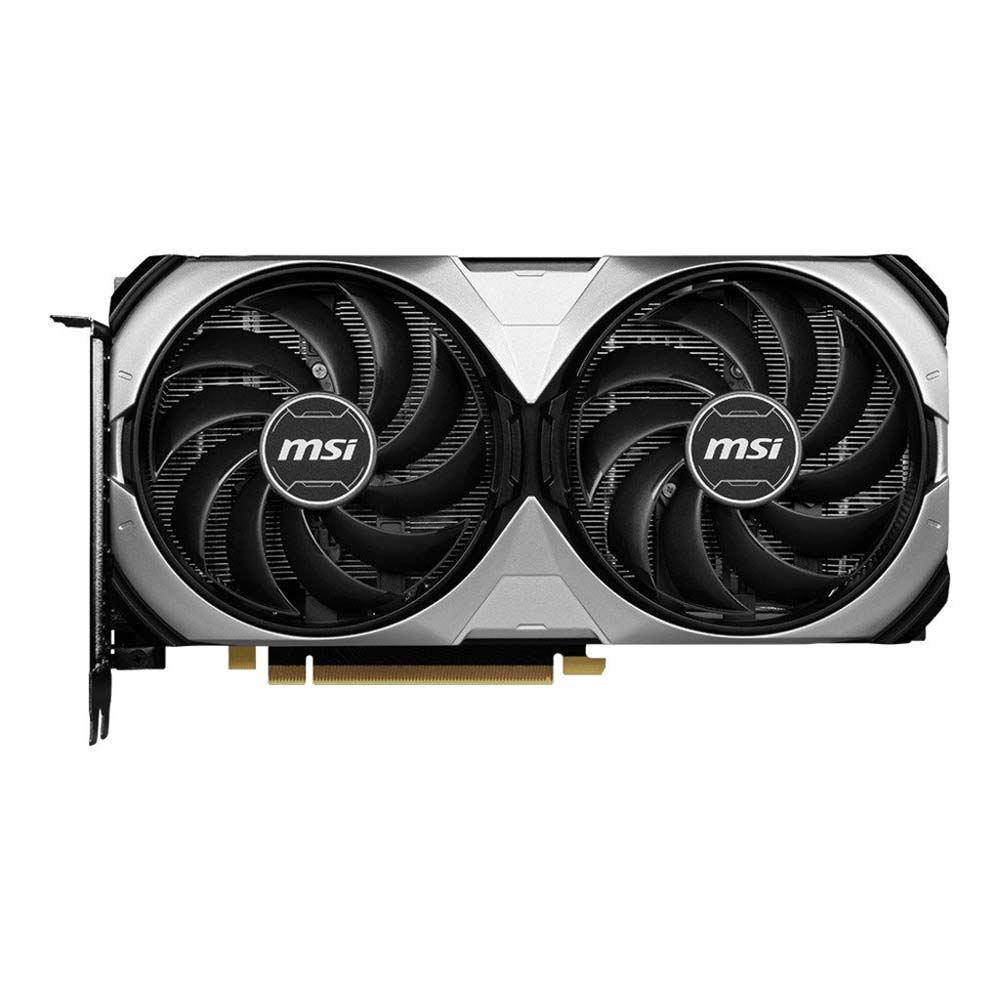

REVOLUTIONARY DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience of MSI RTX 4070 Ventus 2X OC 12GB .
- COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency. - COREPIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink. - TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.
EMPHASIZING ENDURANCE
- Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

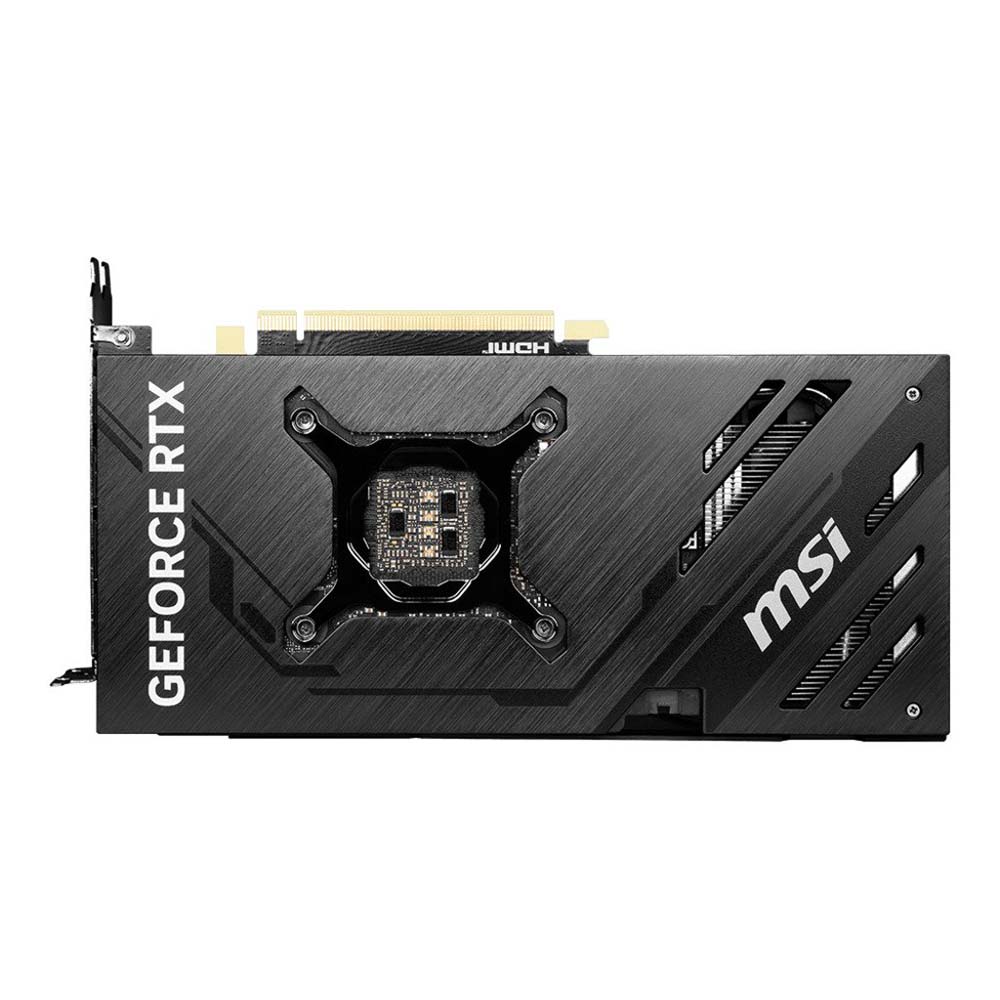

- Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls for MSI RTX 4070 Ventus 2X OC 12GB .
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BRINGING IT ALL TOGETHER
MSI’s exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
PRECISION CONTROLS, UNLIMITED POWER
MSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. It’s free to use and compatible with most other vendor graphics cards.
Specifications of MSI RTX 4070 Ventus 2X OC 12GB :
| MODEL NAME | GeForce RTX™ 4070 VENTUS 2X 12G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz |
| CUDA® CORES | 5888 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 200W |
| POWER CONNECTORS | 8pin x 1 |
| RECOMMENDED PSU | TBD |
| CARD DIMENSION (MM) | 242 x 125 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 651 g / 947 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
